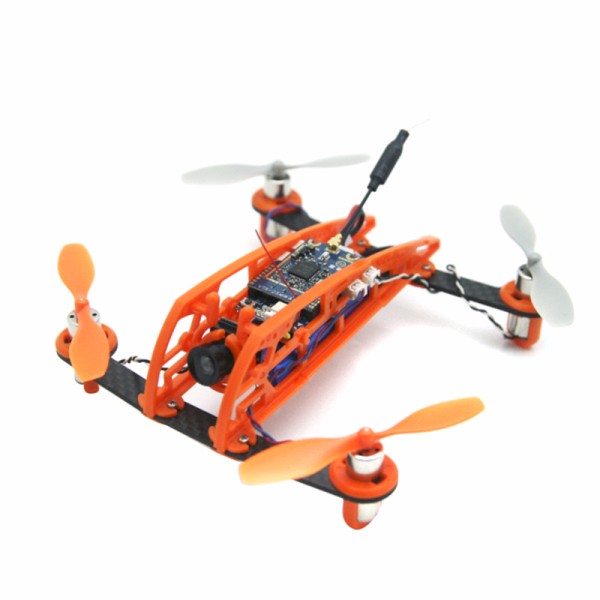

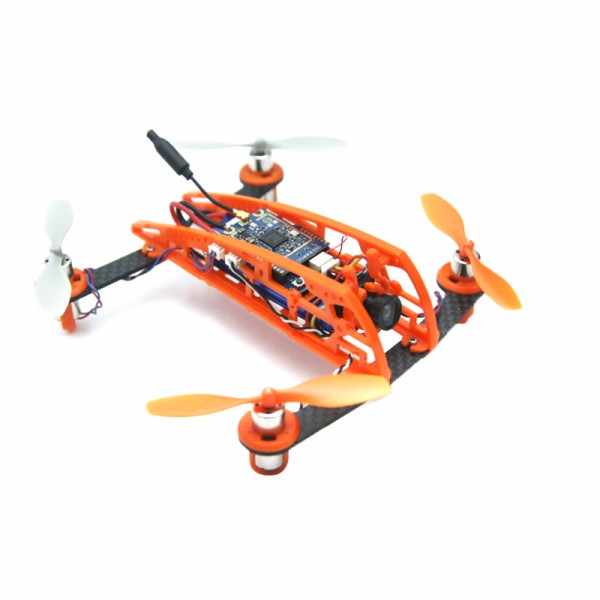

Name: Boecon 120 Scisky Micro FPV Racing Quadcopter BNF With OSD Based On F3 Brushed Flight Control Board
Price: 107.21 AUD
Availability: InStock

Description

Boecon 120 Scisky Micro FPV Racing Quadcopter BNF With OSD Based On F3 Brushed Flight Control Board

Specification:

Brand Name: Boecon

Wheelbase: 120mm

Prop Size: 60mm
Motor: 8520 Brush Motor

Size: 100*100*40mm
Weight: 43.8g (without battery)

Battery house size: 20*50*8.5mm
Firmware version: Cleanflight 1.3.0
Flight controller: Scisky Micro 32b F3 Brushed FC receiver VTX 25MW Camera

Receiver: Built-in Frsky compatible 8ch SBUS receiver/ Flysky receiver/ DSMX/DSM2 receiver/Futaba SFHSS (Optional)

OSD: a VTX comes with an OSD

Camera: 600TVL HD CMOS 1/4 inch Camera

AV Wireless Transmitter: 5.8g 25mw 40CH

Batterry: 3.7V 500mah Lipo battery

Flight time: 4 minutes

Features:

* All the electric components (FC, motors, VTX, camera) is for plug and play,
* With optional receiver (DSMX/DSM2, FRSKY, FlySky compatible),
* Very tiny but strong and neat construction, it comes with a battery house, no need elastic or double adhesive tape for binding the battery.
* It flies stable and much of fun!

5.8G VTX channels list

LED1	LED2	LED3	LEDA LEDB LEDC
			000	001	010	011	100	101	110	111
0	0	0	5740M	5760M	5780M	5800M	5820M	5840M	5860M	5880M
0	0	1	5865M	5845M	5825M	5805M	5785M	5765M	5745M	5725M
0	1	0	5733M	5762M	5771M	5790M	5809M	5828M	5847M	5866M
0	1	1	5705M	5685M	5665M	5645M	5885M	5905M	5925M	5945M
1	0	0	5658M	5695M	5732M	5769M	5806M	5843M	2880M	5917M

Note:0 — LED_OFF,1 — LED_ON.

Package included:

1 x Boecon Frame kits

1 xScisky micro 32b F3 brushed FC with built-in optional receiver

1 x VTX 25MW 40CH

1 x 600TVL Camera

4 x 8520 Coreless Motor

8 x 60mm propeller

1 x 3.7V 500mah Lipo battery

1 x Charging Cable(3S to 3-1S charging harness)

Additional information

Weight	0.119 kg
