Description

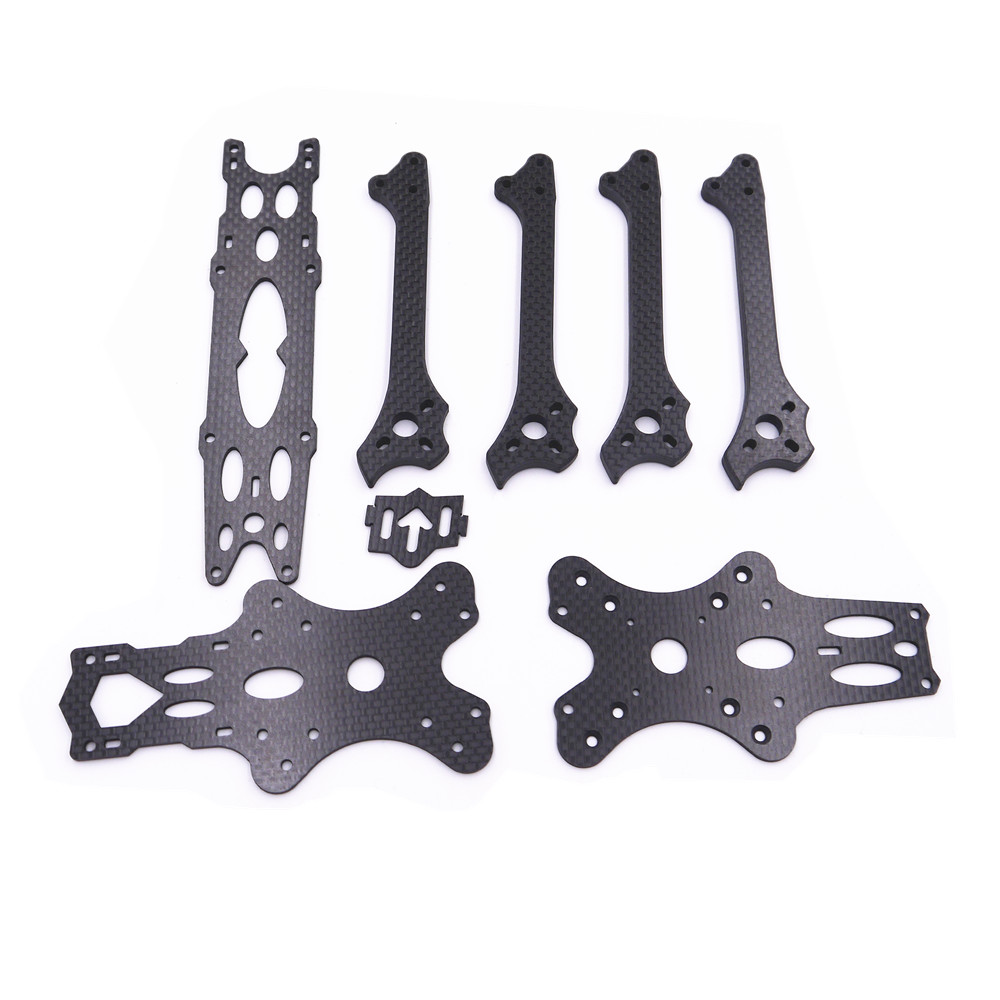

Bnuo 225mm Wheelbase 5mm Arm Thickness 5 Inch 3K Carbon Fiber Frame Kit for RC Drone
Specification:
Model: Bnuo 225
Item Name: 225mm Wheelbse 5 Inch Racing Frame Kit
Wheelbase: 225mm
Material: 3K Carbon Fiber
Arm Plate Thickness: 5mm
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
Inner Standoff Height: 30mm
Weight: about 105g
Recommend Parts:
Flight Controller: 30.5×30.5mm F3/ F4/ F7/ Kiss FC/
Motor: 2204 2205 2207/2306/2405/2307/2308/2506 motor
ESC: 20-40A ESC
Propeller: 5 Inch
Camera Mounting Width: 22mm / 19mm
The following Parts are Compatible: ( Not Included)
FC & ESC Stack: 20x20mm HGLRC XJB F438 Flytower F4 FC & 33A BL_S ESC
DYS 30.5×30.5mm Flytower F4 Pro FC + F30A 4in1 BL_S ESC
Brushless Motor: Emax RS2205 2300KV 3-4S Racing Edition CW/CCW Motor
DYS Samguk Shu 2306 2250/2500/2800KV 3-4S Motor
Propeller: 10 Pairs LDARC 5045 5X4.5 5 Inch 3-Blade Propeller CW & CCW
2 Pairs Gemfan Windancer 5042 5×4.2 Inch PC 3-Blade Propeller
Lipo Battery: GaoNeng GNB 4S 15.2V 1300mAh 120C 240C Lipo Battery
Package Included:
1x Bnuo 225mm Frame Kit
