Description
D05010MG Minimum Metal Gears Servo for Walkera V120D02S
If you received the servo can not install on the rc helicopter,please follow this steps:
1.Installing swashplate servos,cut the ears;
2.Machining body,circled with a knifes resection;
3.Do not cut too much time,try to put up the servos;
4.Like this one:
5.The right servo also do the step before:
7.Prefect!
7.Pay attention the front and rear steering position, keeping the vertical steering rod;
8.Below tail servo installed, this steering ears must stay, I hope you would not have been cut.Please cut circle place.
9.Started drilling holes;
10,Tighting screws;
11.Set the rudder machine, if you feel the tail is flexible you can reduce the size of the amount of control in the tail rudder machine;
12.Completion figure:
Description:
Item Name: D05010MG Minimum Metal Gears Servo for Walkera V120D02S
Item No: D05010MG
Speed: 0.09sec/60° at 4.8V
0.07sec/60° at 6.0V
Gear: 3 Aluminum alloy gears & 1 POM Gear & Copper gear
Torque: 1.20kg.cm/16.66oz.in at 4.8V
1.60kg.cm/22.22oz.in at 6.0V
Motor: Coreless
Plug: J Plug
Size: 22mmx8.0mmx20mm
0.87inx0.32inx0.79in
Wire Length: 160mm/6.30in
Weight: 5.75g/0.20oz
Case Color: Blue+White
Features:
1). D05010MG is micro digital metal gears servo with high preceision.The metal gears of D05010MG is compact,they make it with suitable running torque and durability.Also its preceision is satisfied with one metal ball bearing inside.We believe it will left you a great impression.
2). D05010MG is suitable for the applications with micro servo control system which needs a special requirement of gears.

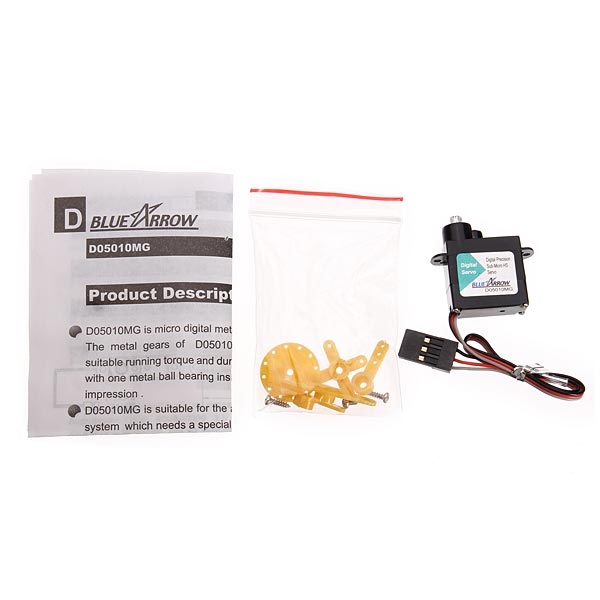

Package Included:
1 x D05010MG Minimum Metal Gears Servo
,
,,,
,,
,,
,,,,
,,,,
,,,
,,
