Description

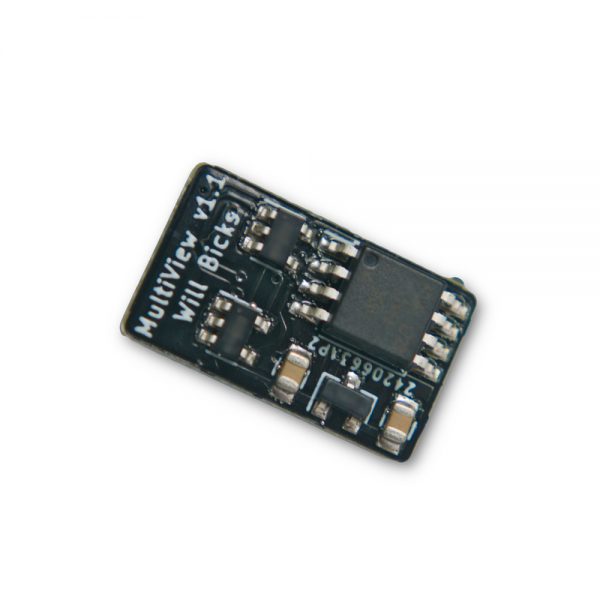

Bicks MultiView Duo Micro FPV Camera Switcher for FPV Camera RC Drone
Bicks's MultiView Duo is a lighweight mi cro camera switcher designed for high performance FPV applications. Can be controlled with a standard PWM servo signal, or a digital input, to allow you to switch easily between two cameras through one video transmitter!
With a huge input voltage range from 4.2 to 30v, it's compatible with both 5v regulated power supplies as well as direct power from a 2s through 6s lipo battery. The input power is passed through to the cameras, so your wiring is minimzed and you can have a nice clean setup. For 6s supplies, quick disarms and quick changes in throttle can cause voltage spikes that can exceed the recommended input voltage, so in those cases we recommend powering the Multiview Duo from a regulated power supply.

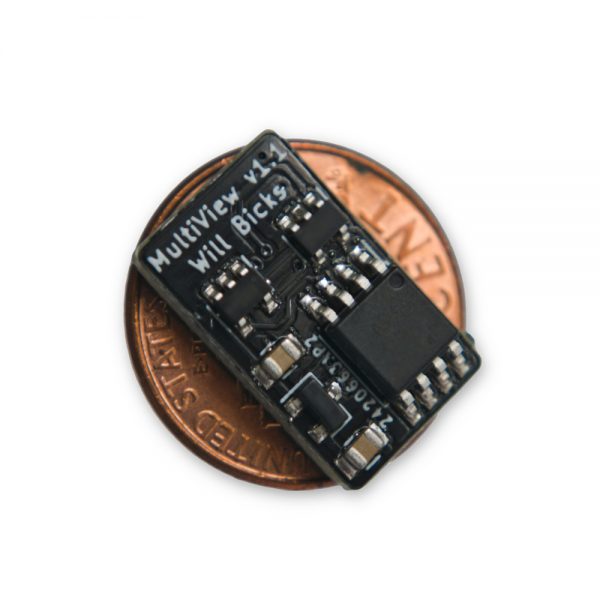

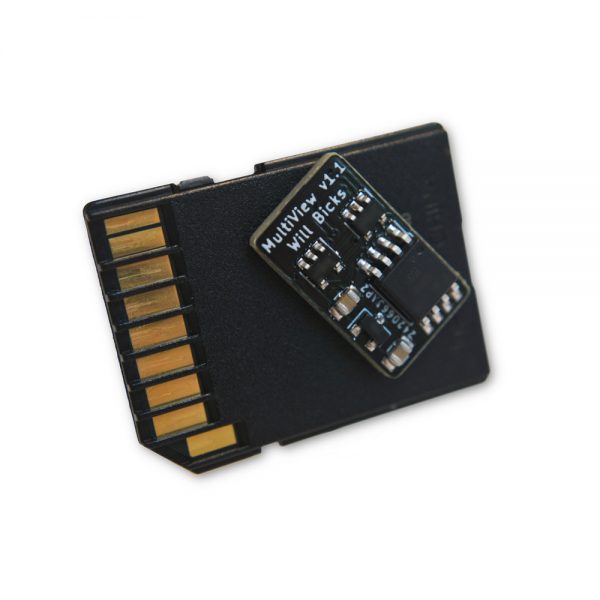

The switching design offers quick switching and no additional latency is added to the video feed. Super small, at only 10x17mm, it's a great choice for small wings and micro quads, and the low weight of less than one gram allow for little impact on your high performance models.
Description:
Model: Bicks's MultiView Duo
Item name: FPV camera switcher
Voltage input range: 4.2-30V (5v regulated or 2s-6s lipo)
Number of video inputs: 2
Number of video outputs: 1
Weight: 0.9g
Dimensions: 10mm x 17 mm
Pacakge Included:
1x Bicks's MultiView Duo FPV camera switcher
