Description
Note:
It comes without Camera, VTX. you need to buy them additionally.
Introduction:

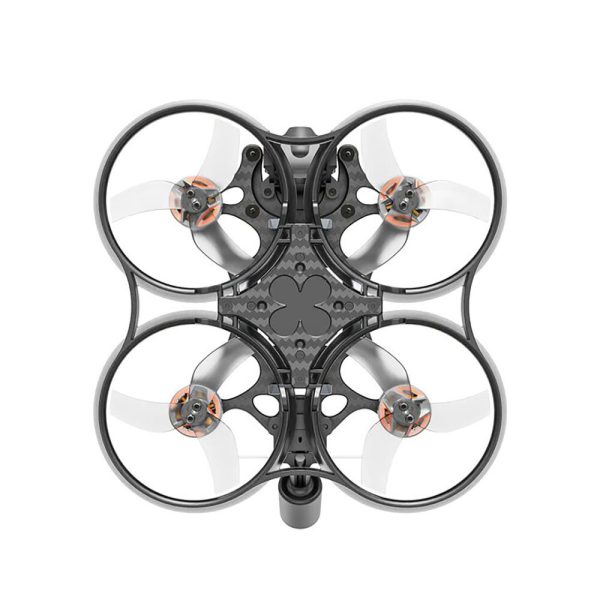

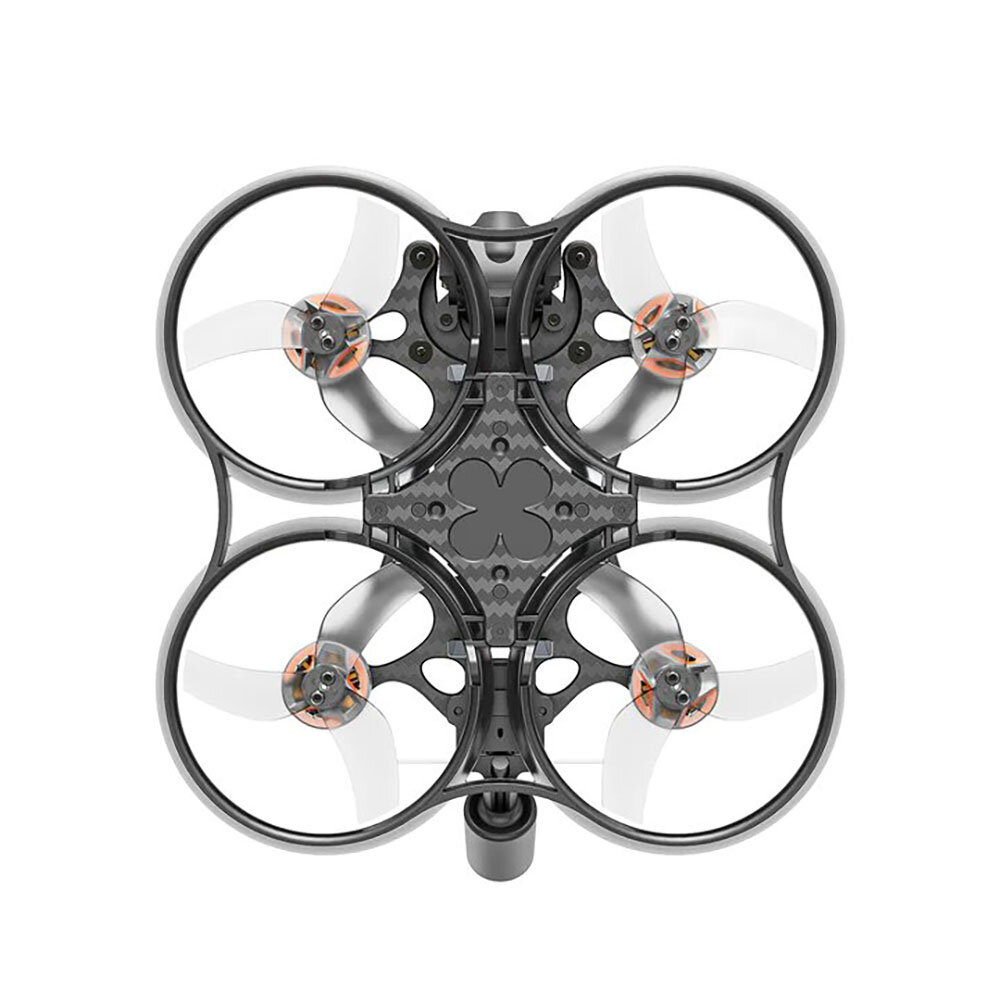

Pavo25 V2 is the revolutionary Cinewhoop that the product team has come up with after spending countless hours applying aerodynamics. The whoop duct can enhance an additional 200g thrust and a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight while also accommodating mainstream HD VTX and Naked Action Cams. The new powerful propulsion system, boosts computational power for up to 8 minutes of flight time, guaranteeing it is the smoothest, most
powerful, and most responsive flight among all 2.5′ cinewhoops.
Bullet Point:
-Pavo25 V2 is specifically designed to compatible with DJI O3 Air Unit. ( NOT Include in package)
-The innovative Y-shaped CNC metal support structure can improve the structural strength, torsion resistance, and vibration characteristics of the entire machine compared to aluminum columns, making it respond faster and more smoothly.
-Rocket engine-inspired duct design improves lateral stability and increases thrust by 200g compared to without a propeller guard, giving the Pavo25 V2 stronger power and a better flying feel.
-The whoop duct is riveted and assembled, and the new appearance and design concept enables more effortless installation and a stronger structure.
-It offers exceptional mounting capabilities and supports not only DJI O3, Walksnail, and HD VTX installations but also works seamlessly with lightweight cameras such as Naked Gobro 12, DJI Action 2, and InstaGo 3. ( not included)
-F722 35A AIO Brushless Flight Controller comes with an F722 chip this board provides a great performance capability and high processing speed of up to 128k PWM frequency,
-The COB light strip assembly that can be switched on and off remotely allows pilots to enjoy flying in any scene.
Specification:
Brnad: Betafpv
Model: Pavo25 V2
Item: 112mm Wheelbase 2.5 Inch Brushless Whoop FPV Drone
Wheelbase: 112mm
FC: F722 35A AIO V2
Motor: 1506 | 4200KV
Battery Connector: Fixed XT30
Frame: Pavo25 V2 Brushless Whoop Frame
VTX: NO VTX. support DJI O3 Air Unit, Walksnail Avatar HD Pro Kit, Caddx Vista Kit/RUNCAM Link, Analog VTX
Camera: NO Camera. Support DJI O3, Avatar HD Pro Caddx, RUNCAM series 19mm&20mm HD, Analog 19mm
Propeller: GF D63 3-Blade Propeller
Receiver ( Optional): PNP ( without Receiver) / ELRS 2.4G
Recommend Battery ( NOT Included):
Flight Times: 6-8mins
Pavo25 V2 Frame Kit
Pavo25 V2 whoop duct can enhance an additional 200g thrust and also a CNC 7075 Aluminum Y shape standoff to eliminate distortion and bending during flight. Powerful and smooth flying is guaranteed. The modular design of the frame guarantees a streamlined appearance, with no protruding wires and the fixed power port design enables effortless one-handed connection. Assembling the frame is a breez, requiring the simple tightening of the four bottom screws and utilizing the riveting design for convenient detachment of the duct.
The design of the whoop duct fully refers to the aerodynamic principle of the rocket engine nozzle and utilizes different heights and thicknesses between the upper edge and lower edge, through the compression of the inlet air within the duct, a substantial increase in exhaust pressure is achieved. Consequently, an additional thrust of 200g is generated, while simultaneously enhancing the horizontal stability of the cinewhoop. With augmented power and exceptional flight stability, executing challenging maneuvers such as flips and turns on the Pavo25 V2 results in remarkably steady and precise responses. Pilots will experience an enhanced flying sensation.
The Y structural Shape standoff means 8 support force is on the top plate, increasing the structural strength of the quad, which results in smoother turns and minimal vibrations during flight. The CNC standoff is made with aircraft standard material – 7075 Aluminium Alloy to increase strength for ensure that pilots can embark on powerful flights with confidence. Additionally, the duct is securely fastened with only 4 screws, while the remaining connections employ the time-honored Chinese traditional riveting technique to ensure fast assembling and disassembling also including fixed power port design.
Powerful Propulsion System
1505 4600KV Brushless Motor is designed for the 4S 2.5” quads, with superb torque output performance. Combined with GF D63 3-Blade Propellers 1.5mm Shaft and the F722 35A AIO V2 Flight Controller, it could offer pilots easily reproduce freestyle. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading our Pavo25 V2 Brushless Whoop Quadcopter to a smoother and more stable flight level.
Flight Controller
F722 35A AIO Brushless Flight Controller comes with an F722 chip this board provides a great performance capability and high processing speed of up to 128k PWM frequency, built-in a 16MB flash memory chip dedicated to Blackbox logging. 6 full UARTs are available on this board. Featuring a 6-pin plug&play port, it can directly connect HD Digital VTX with NO soldering work. With the support of up to 2~6S input voltage, this FC pushes the FPV racer to the max, providing reliable and smooth flight for drones.
Shine in Night Cruise
The Pavo Series COB LED Strip is a 5V-powered LED strip measuring 560 mm*4 mm. Pavo25 V2 Brushless Whoop Quadcopter offers the remarkable feature of controlling the onboard COB light strip via a radio transmitter. This convenient functionality allows for flexible control of the light strip’s brightness and on/off status. Since light pollution should be eliminated when shooting videos, COB needs to be turned off. However, COB can be turned back on when racing and freestyle, enhance the ambiance, and provide navigation indicators, empowering pilots to seamlessly switch between various scenes anytime such as entertainment, sports, or film creation, catering to their specific needs.
ND Filter for DJI O3 Camera
BETAFPV ND Filter for DJI O3 Camera, UV, CPL, ND8, ND16, ND32, is specifically designed for the Pavo25 V2, Pavo20 and Pavo Pico Brushless Whoop Quadcopter. Meanwhile, the DJI O3 Air Unit ND Filters are tailored for the DJI O3 Air Unit and are capable of reducing the amount of light that enters the camera lens. With this feature, you can achieve slower shutter speeds or wider apertures when flying. These lightweight filters are crafted from high-quality optical class ensuring optimal image clarity and are too easy to install on the build.
Package Included:
1 * Pavo25 V2 Brushless Whoop Quadcopter
1 * COB Light Strip Accessory Pack
4 * GF D63 3-Blade Props 1.5mm Shaft(Transparent Gray)
1 * Mount Base for Gopro
1 * Camera Mount (Left)
1 * Camera Mount (Right)
4 * M1.6 * 8 Hex Flat Head Screw
4 * M2 * 3 Hex Flat Head Screw
4 * M2 * 8 Hex Flat Head Screw
4 * M2 * 4 Hex Button Head Screw
2 * M2 * 5 Hex Button Head Screw
2 * M2 * 8 Hex Button Head Screw
1 * M5 * 18 Hex Button Head Screw
1 * M5 * 5 Anti-loosening Nut
1 * H1.27 Hexagon Wrench
1 * Service Card
1 * Frame Instruction Manual
1 * Flight Controller Instruction Manual
