Description
Notice: NO VTX, NO Camera in package. The pictures only for reference.
It is HD-ready for you to add your own VTX and Camera.
Introduction:

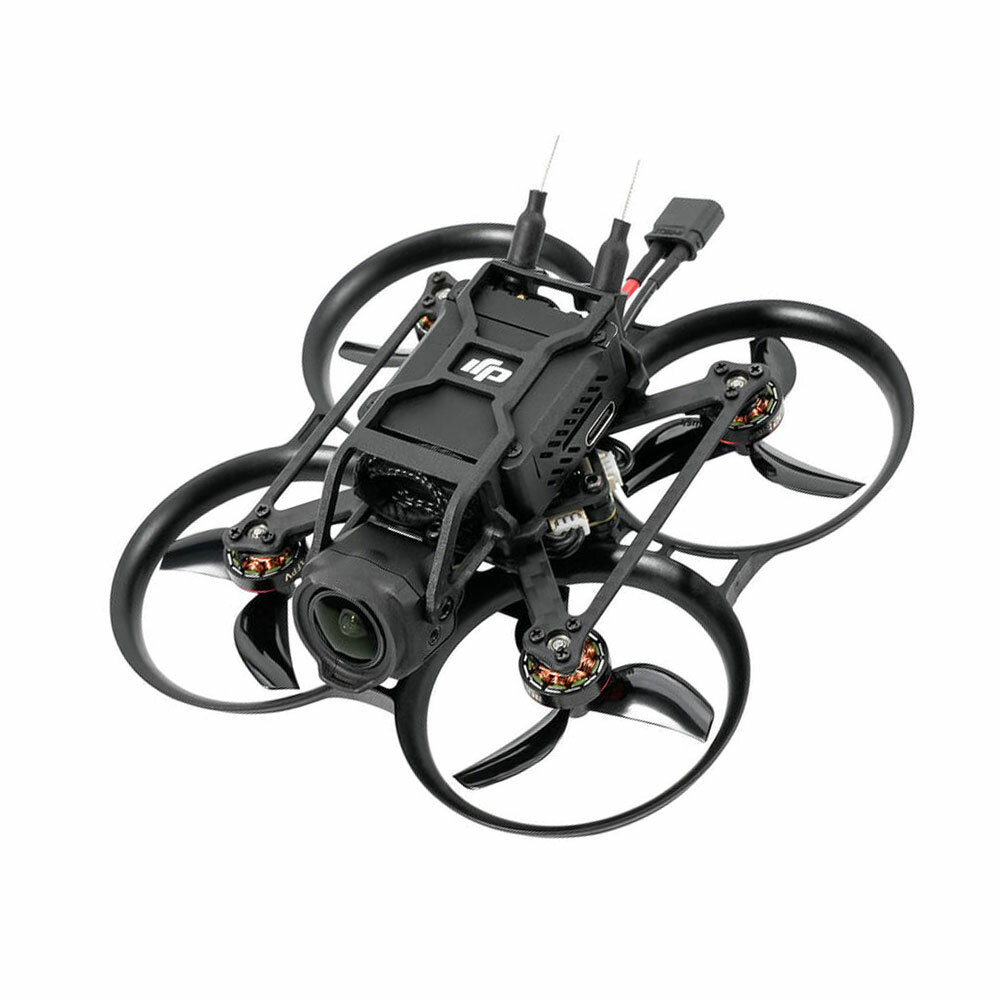

The BetaFPV Pavo Pico Cinewhoop – HD Ready is the smallest 2S Sub100g while you equipped with DJI O3 Cinewhoop!
This ultralight cinewhoop with a small wheelbase is equipped with 45mm propellers and the latest F4 1S 12A AIO Brushless FC V3,
which greatly heightens the flying experience. Due to its split design, the HD VTX mounting bracket supports quick installation of mainstream HD digital VTX modules.
A rubber damper vibrationdamping design with GyroFlow stabilization software ensures stable and smooth HD images. Its design is wellsuited for cruising indoors and outdoors alike.
Specifications:
Brand: Betafpv
Model: Pavo Pico (Support DJI O3 Version)
Item Name: 80.8mm Wheelbase F4 1S Whoop
Optional Receiver Version: ELRS / TBS CRSF Nano
Color: Black
Flight Time: 4min
Wheelbase: 80.8mm
FC: F4 2-3S 20A AIO FC V1
Battery: 2S 450mAh 45C
Props: GF 45mm-3B black propeller
Motor: 1102 14000kv red and black (2022)
Frame Weight (No Battery): 34.64g
Frame: Pavo Pico Brushless Whoop Frame
VTX : NO VTX
Camera: NO Camera
Recommend VTX and Camera ( NOT Included):
DJI O3 Air Unit Digital System
Note: The flight time is calculated under 8.4V~6.8V. And the Pavo Pico Brushless Whoop Quadcopter does not include HD VTX and Camera.
Features:
– Reinforced side bracket, rubber damper, lens holder, and antenna for suppressing low-frequency vibration and ensuring stable HD video output
– Split-design HD VTX mounting bracket with compatibility for DJI O3 Air Unit
– DIY battery fixing methods are supported, and compatible with various battery sizes and capacities
– NO VTX , NO Camera, for installing your DJI O3 Ready
– The new F4 2-3S 20A AIO FC V1 upgrades from F4 1S 12A FC V3
– Reduced battery slot and HD VTX mounting bracket duct height
– Simple VTX cable connection and easy binding process
– Frame constructed with PA12 material
– Lens filter and lens protection mount
Package Included:
1 * Pavo Pico Brushless Whoop Quadcopter (Without HD Digital VTX & Camera)
1 * 2S 450mAh Battery
4 * GF 45mm-3B Propellers
1 * USB Parameter Adjustment Cable
1 * 5.8G Copper Tube Antenna Package
1 * VTX Bracket Screw Package
2 * Antenna Mount for DJI O3 HD Digital VTX
2 * Mounting Bracket for DJI O3 HD Digital VTX
1 * Lens UV Protector for DJI O3
1 * Lens Protective Case for DJI O3
