Description
Specifications:
Notice: NO VTX, NO Camera in package. The pictures only for reference.
It is HD-ready for you to add your own VTX and Camera.
Introduction:

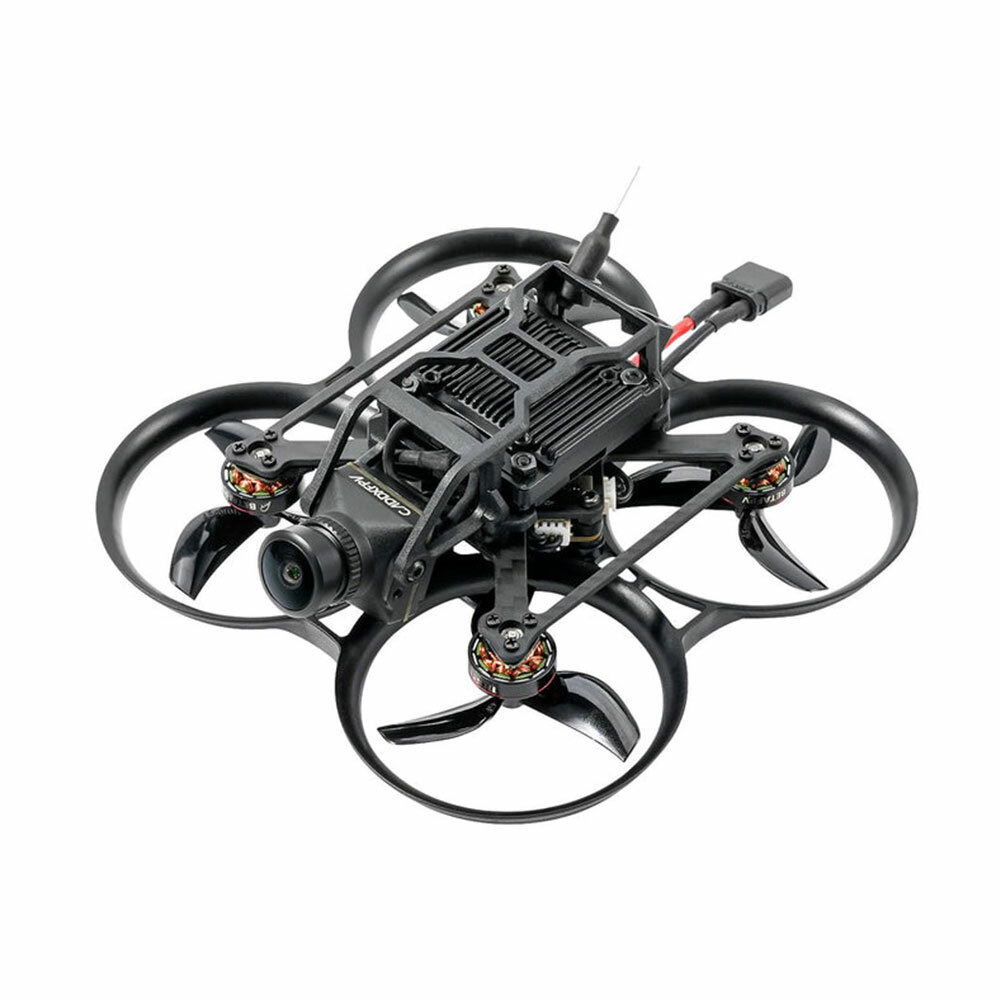

The BetaFPV Pavo Pico Cinewhoop – HD Ready is the smallest 2S Sub100g while you equipped with DJI O3 Cinewhoop!
This ultralight cinewhoop with a small wheelbase is equipped with 45mm propellers and the latest F4 1S 12A AIO Brushless FC V3,
which greatly heightens the flying experience. Due to its split design, the HD VTX mounting bracket supports quick installation of mainstream HD digital VTX modules.
A rubber damper vibrationdamping design with GyroFlow stabilization software ensures stable and smooth HD images. Its design is wellsuited for cruising indoors and outdoors alike.
Specifications:
Brand: Betafpv
Model: Pavo Pico (Support Walksnail Avatar HD Pro / Caddx Vista HD Version)
Item Name: 80.8mm Wheelbase F4 1S Whoop
Optional Receiver Version: ELRS / TBS CRSF Nano
Color: Black
Flight Time: 4min
Wheelbase: 80.8mm
FC: F4 1S 12A AIO Brushless FC V3 (STM32F405 MCU Version)
Battery: 2S 450mAh 45C
Props: GF 45mm-3B black propeller
Motor: 1102 14000kv red and black (2022)
Frame Weight (No Battery): 34.64g
Frame: Pavo Pico Brushless Whoop Frame
VTX : NO VTX
Camera: NO Camera
Note: The flight time is calculated under 8.4V~6.8V. And the Pavo Pico Brushless Whoop Quadcopter does not include HD VTX and Camera.
Recommend VTX and Camera ( NOT Included):
Walksnail Avatar HD Pro / Caddx Vista HD
Features:
1) Reinforced side bracket, rubber damper, lens holder, and antenna for suppressing low-frequency vibration and ensuring stable HD video output
2) Split-design HD VTX mounting bracket with compatibility for DJI O3 Air Unit, Walksnail Avatar HD Pro, and Caddx Vista
3) DIY battery fixing methods are supported, and compatible with various battery sizes and capacities
4) NO VTX or Camera, for installing your Walksnail Avatar Ready
5) Lightweight F4 1S 12A AIO Brushless FC V3 optimized for HD digital VTX
6) Reduced battery slot and HD VTX mounting bracket duct height
7) Simple VTX cable connection and easy binding process
8) Frame constructed with PA12 material
Package Included:
1 * Pavo Pico Brushless Whoop Quadcopter (Without HD Digital VTX & Camera)
1 * 2S 450mAh Battery
4 * GF 45mm-3B Propellers
1 * USB Parameter Adjustment Cable
1 * 5.8G Copper Tube Antenna Package
1 * VTX Bracket Screw Package
2 * DJI O3 HD Digital VTX Antenna Mount
2 * DJI O3 HD Digital VTX Mounting Bracket
1 * VTX Mounting Plate for Vista/Avatar HD Digital VTX
