Beitian BN-880Q GPS+GLONASS Dual GPS Antenna Module FLASH TTL Level 9600bps for FPV RC Racing Drone
Description:
Brand name: Beitian
Item name: BN-880Q GPS+Glonass antenna module
| Parameters | Description | |
| Chip features | Chip | M8030-KT |
| Frequency | LPS L1, GLONASS L1, BEIDOU B1,GALILEO E1, SBAS L1, QZSS L1 | |
| Working mode | GPS, GLONASS, BEIDOU, GALILEO, SBAS and QZSS. Default GPS+GLAONASS+SBAS+QZSS |
|
| Channel | 72 searching channel | |
| Sensitivity | Track | -167dBm |
| Recapture | -160dBm | |
| Cold start | -148dBm | |
| Hot start | -156dBm | |
| Precision | Horizontal accuracy | 2.0 m CEP 2D RMS SBAS assist (open space) |
| Speed accuracy | 0.1m/s 95%(SA off) | |
| Time accuracy | 1us | |
| Startup time | Cold start | 26s |
| Warm start | 25s | |
| Hot start | 1s | |
| Output data | Baud rate | 4800bps-921600bps, default 9600bps |
| Output level | TTL | |
| Output protocol | NMEA-0183 or UBX, default NMEA-0183 protocol | |
| NMEA sentences | RMC, VTG, GGA, GSA, GSV, GLL | |
| Update frequency | 1Hz-10Hz, default 1Hz | |
| FLASH | 4M FLASH, The configuration can be changed and will not be lost after power off | |
| Working limit | Height | 50,000m max |
| Speed | 515m/s max | |
| Gravity acceleration | 4g max | |
| Power consumption | Voltage | DC 3.0V-5.5V, typical: 5.0V |
| Current | Normal 50mA@5.0V | |
| Physical parameter | Size | 28mm*28mm*8mm |
| Weight | 12g | |
| Connector | 1.25 pitch 6pin carrier | |
| Environment | Operate temperature | -40℃~+85℃ |
| Storage temperature | -40℃~-+105℃ | |
| Indicator light | TX light | Blue light flashing when power-on, indicated that there is data output |
| PPS light | The light is not lit when it is not positioned; after 3D positioning, it starts to blink. | |
| Compass | Compass | With internal electronic compass QMC5883 |

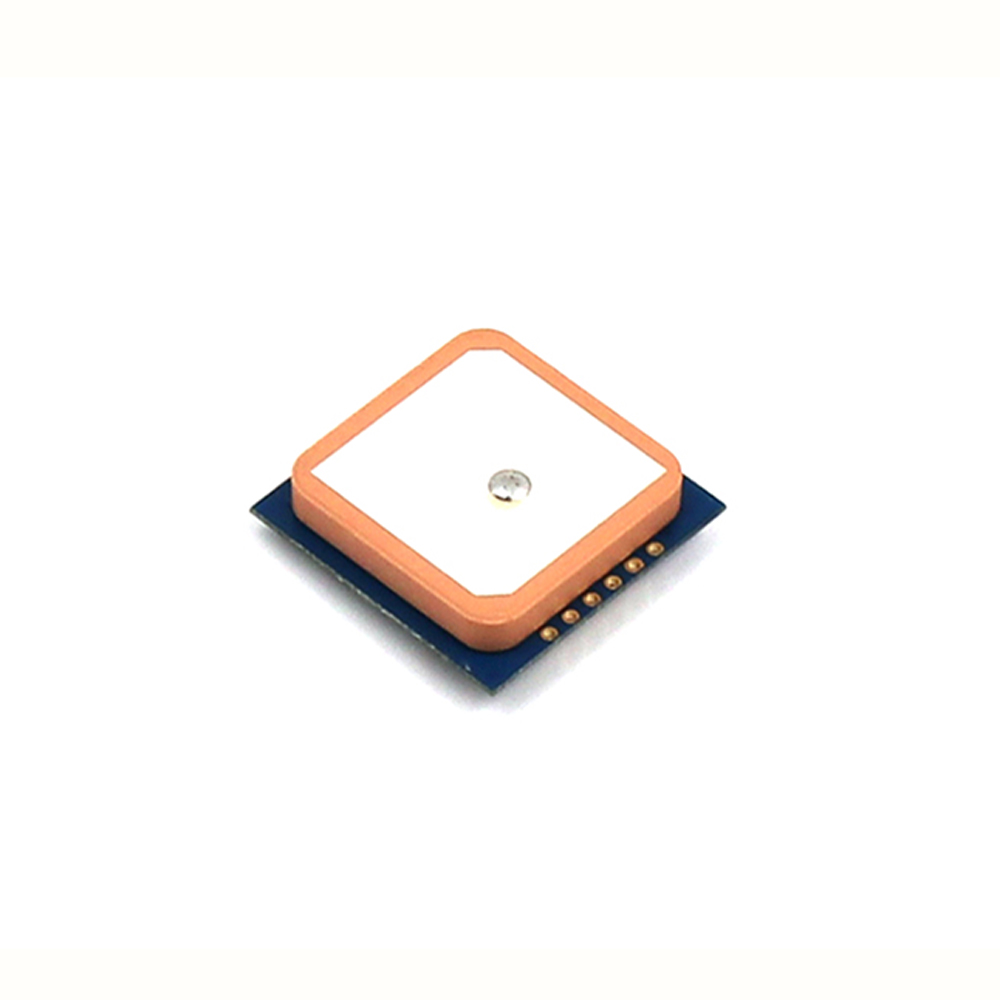

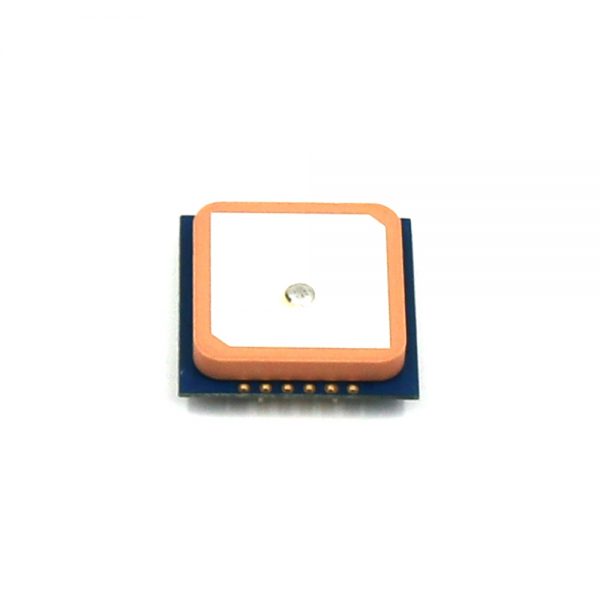

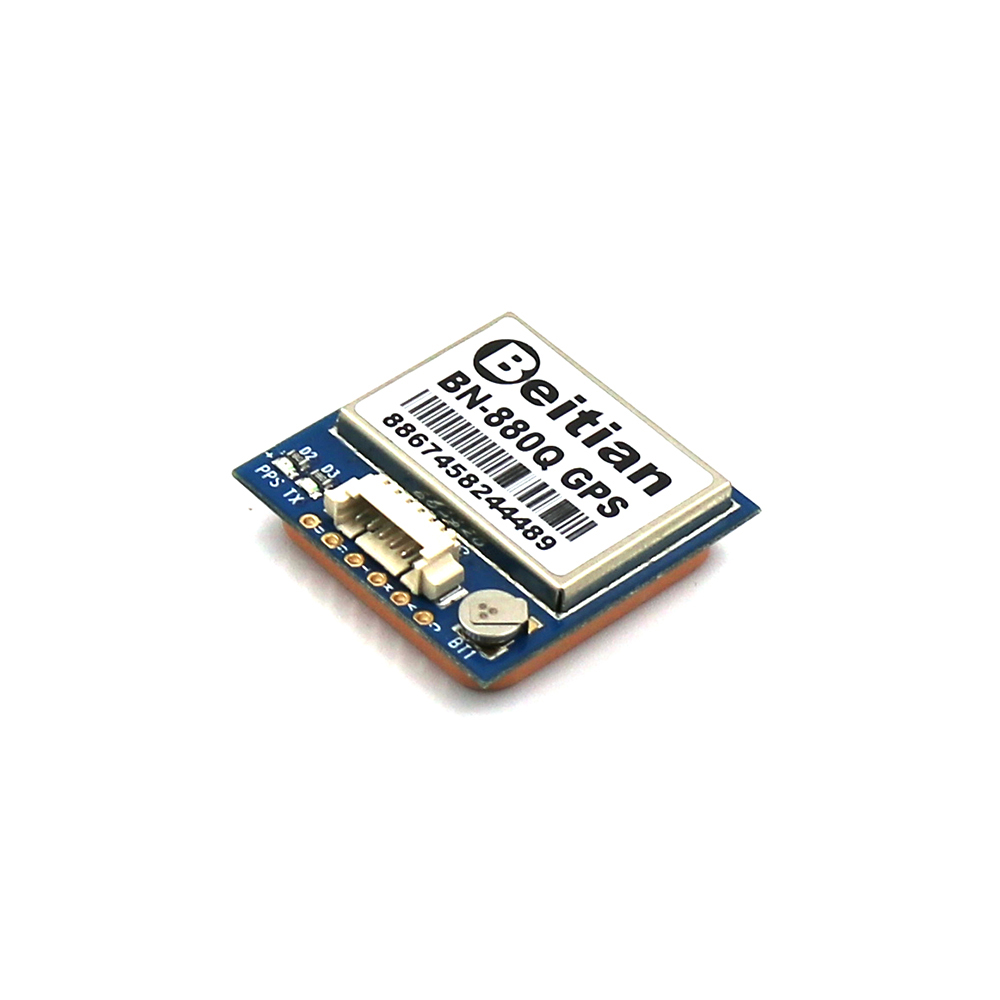

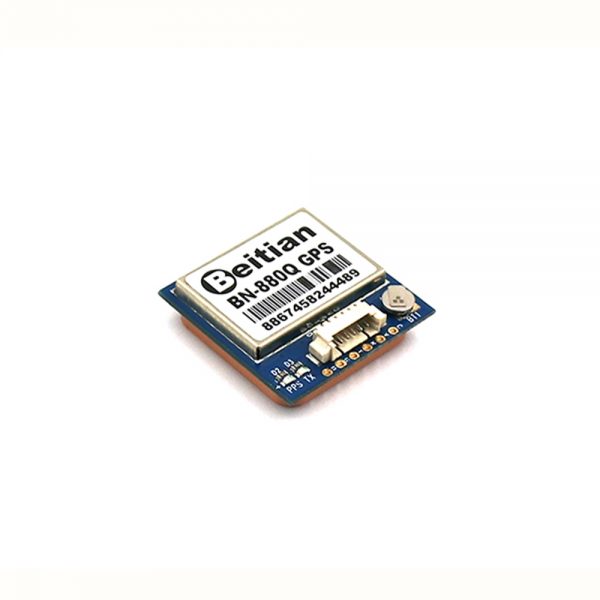

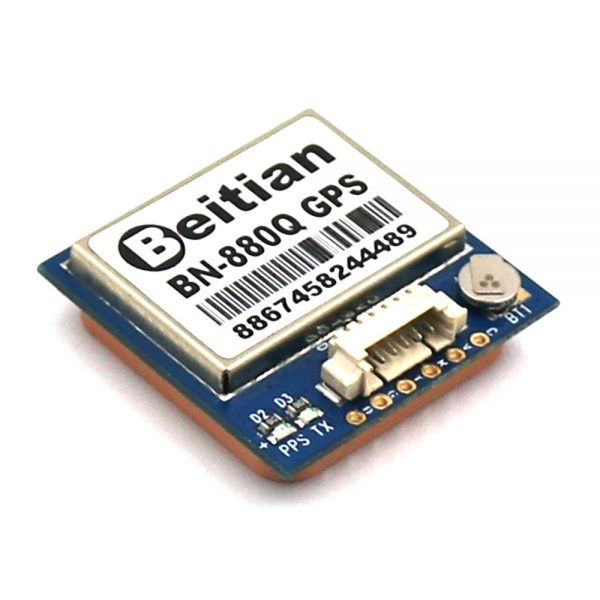

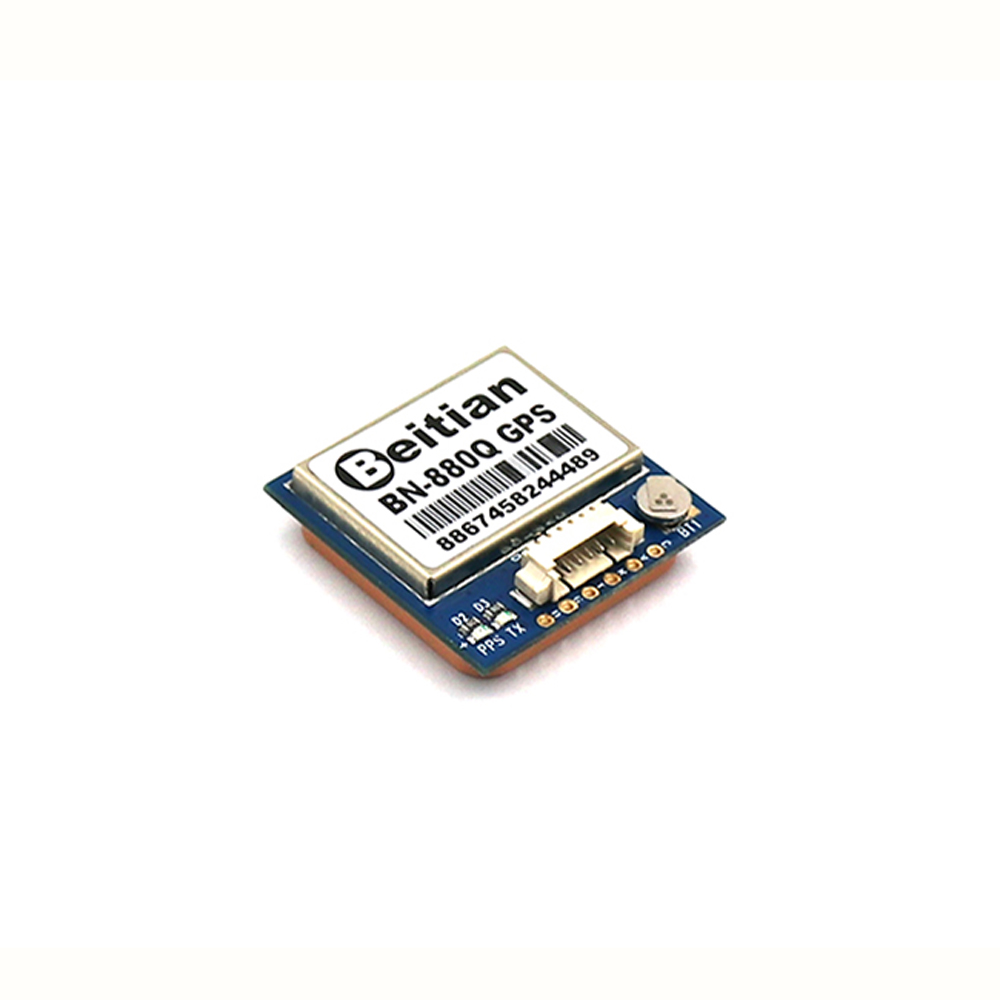

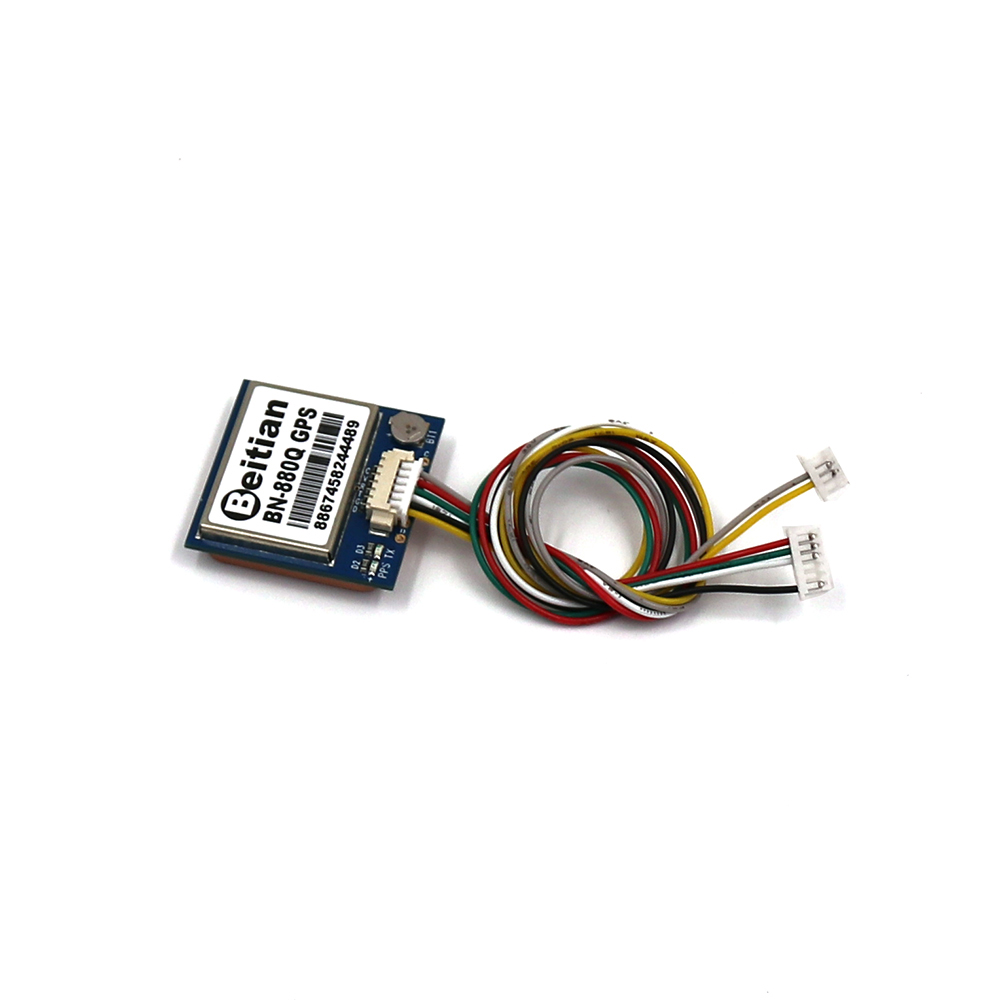

BN-880Q GPS integrated module
Pins of the module:
1. SDA.
2. GND, ground.
3. TX, the data output of the module.
4. RX, the data input of the module.
5. VCC, 3.0V–5.5V.
6. SCL.
Package Included:
1x BN-880Q GPS+Glonass antenna module
