APM Power Module V1.0 Vision 30V/90A with BEC for RC Model
It is not include the plug and soldering.
Description:
Material: Rubber
Dimension(mm): 25 x 21 x 9
Weight(g): 17(include all wire)

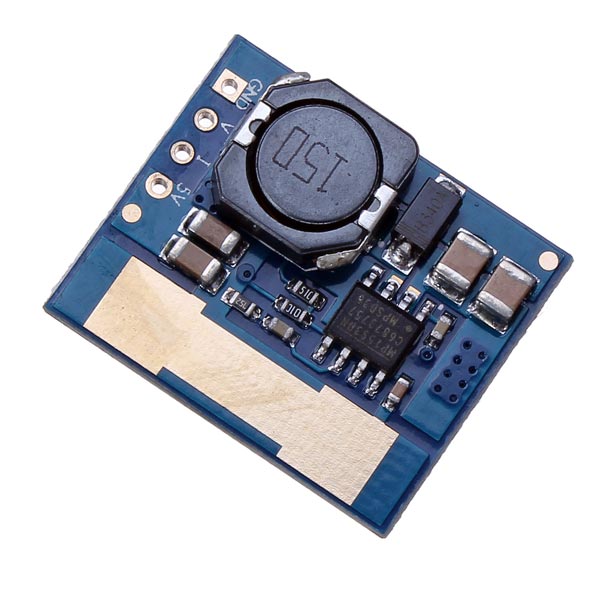

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.
Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.
Features:
Max input voltage: 30V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 3A max
6P molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector
Note: Product power cord and battery plug is not welding, users need to solder them by yourself.

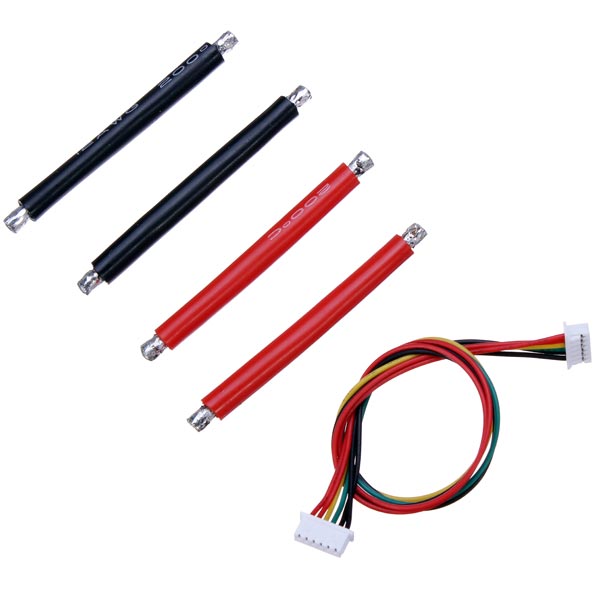

Package Includes:
1 x Power Module
1 x 6P cable 150mm
4 x 12AWG leads 50mm
