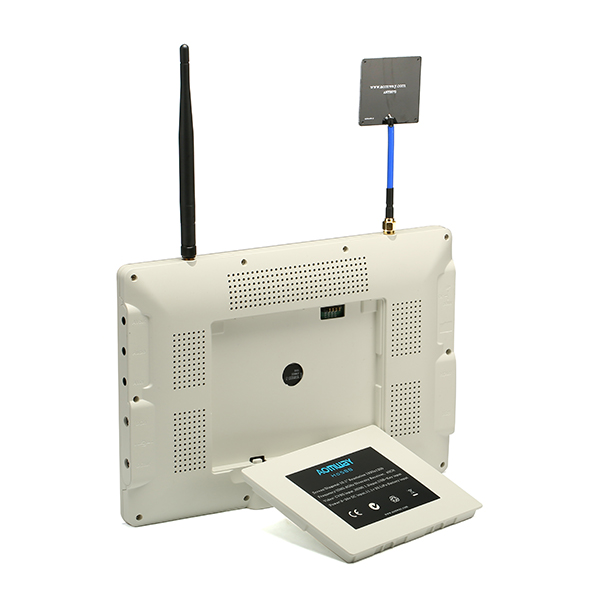

Aomway HD588 V2 10 Inch 5.8G 64CH Diversity FPV HD Monitor 1920 x1200 with DVR Build in Battery For RC

Aomway HD588 v2 10 Inch 5.8G 64CH Diversity FPV HD Monitor 1920 x1200 with DVR Build in Battery

Customer Review:http://www.rcgroups.com/forums/showthread.php?t=2700245





Brand Name: Aomway

Item Name: HD588 Monitor

Frequency: 5.8G 64CH

NTSC/PAL auto selection

Display: 1920 x1200p full HD

DVR Resolution: 1280*720P
Recording: auto save
Latency : 90ms

LED backlight

Sensitivity: 95dBm

Brightness: 450cd/m2
Auto brightness:yes
RF receiver switch:OFF/ON/L/R
Spectrum analysis:Yes

Power consumption ≤ 9W.

Wide Voltage : 8~28V

Build in Battery: 2400mah Li-ion battery

Working Time: about 100mins

Dimensions: 246 x 172 x 20mm.

Operating Language: 8 different languages

USB for multimedia displayer and firmware upgrade.

Standard 3.5mm AV in /AV out port.

Standard 5.5*2.1mm DC in and DC out port.

Support 1080p HDMI in display.

Support Max. 64G TF card.

OSD menu: Voltage, Channel, RSSI, Battery Status.







FPV three proofing: no blank screen, no blue, no flicker.

10.1” IPS MIPI screen with long service time.

Dual built-in diversity receiver module

Auto search for active channel ( scan all the 64 channels with one single button )

Auto select NTSC/PAL format.

Two built-in high quality stereo speakers with adjustable volume bar displayed on screen.

Integrated DVR for real time recording and playback, TF card support to maximum 64G.

Built-in 2400mah Li-ion battery, after fully charged, working time extended to 100mins.

Battery voltage status displayed on screen and low voltage alarm function is available.

Display aspect ratio: 16:9 and 4:3, /Zoom in,supporting point-to-point display and zoom-in function allows viewing at a particular section.





1 x Monitor

2 x Antenna

1 x Charger

2 x AV Cable

1 x User Manual
