Description
Click here to download the manual: TXRXUserManualV5.pdf
Description:
Brand: Aomway
Working frequency: 5.8G 64CH
Model: DIV006 V4(DVR)
DVR Function: DVR with auto save function
Working Voltage: 7-26v
Power Consumption: 12V,210mA
Channel: 64CH(RaceBand)
Format: NTSC/PAL selectable via menu
Sensitivity: ≥-95db
Channel Selection: Digital Display,Single Button Selection,Auto Scan, Diversity
Antenna Connector: SMA- Jack (outer thread, inner hole)
Features:
– DVR recording audio and video signal simultaneously in D1 resolution.
– AV out: 640×480
– Video compression format: MJPG
– TF card slot, support to 64GB
– Recording file format: AVI
– Playback available
– PAL/NTSC selectable via menu.
– 48CH selection by single button, digital display current channel
– Single short press button to change channel from CH1 to 8 and buzzer beeps
while each press; long beep indicates on CH1.
– Each time long press 3s to change band from A to H.
– Digital tube point indicates which antenna is selected to work.
Package included:

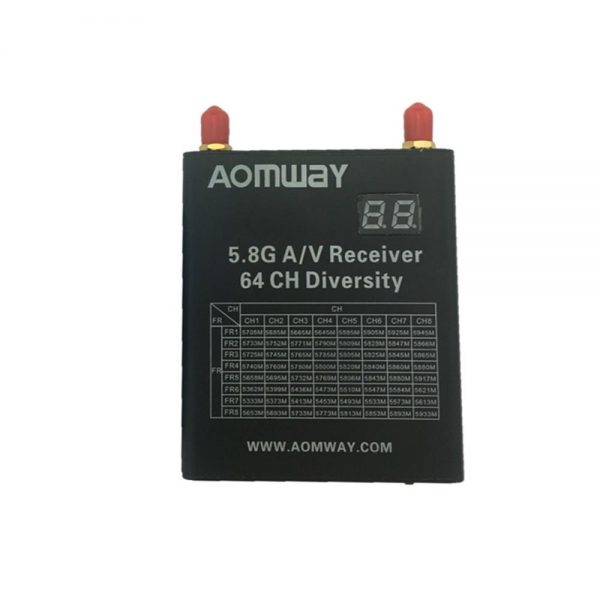

1 x Aomway DIV006 V4 DVR 5.8G 64CH Raceband FPV Receiver
2 x 5.8GHz antenna
1 x 1.2m 3.5male/RCA male AV cable
1 x 1m 2.1*5.5male/bare tin power cable
1 x 30cm 3.5male/RCA female AV cable
