Description
Anniversary coupon price $199.99 : BGANCB7
FEATURES
Upgraded 64CH 5.8Ghz high sensitivity diversity RF modules , for optimal analog video signal reception
Well‐equipped with a pair of 16 to 9 WVGA LCD micro displays (FOV as 32 degrees) for providing immersive FPV experience.
Built‐in DVR, support up to 32G TF card.
Support 2D/3D mode,720p@60fps HDMI input,AV-IN/OUT
Support head track , not included.
Auto switch between PAL/NTSC
OSD menu already includes mode, brightness/contrast,channel/band, voltage and DVR status all that you need.
A high‐speed ventilating fan installed to prevent fogging up on screens

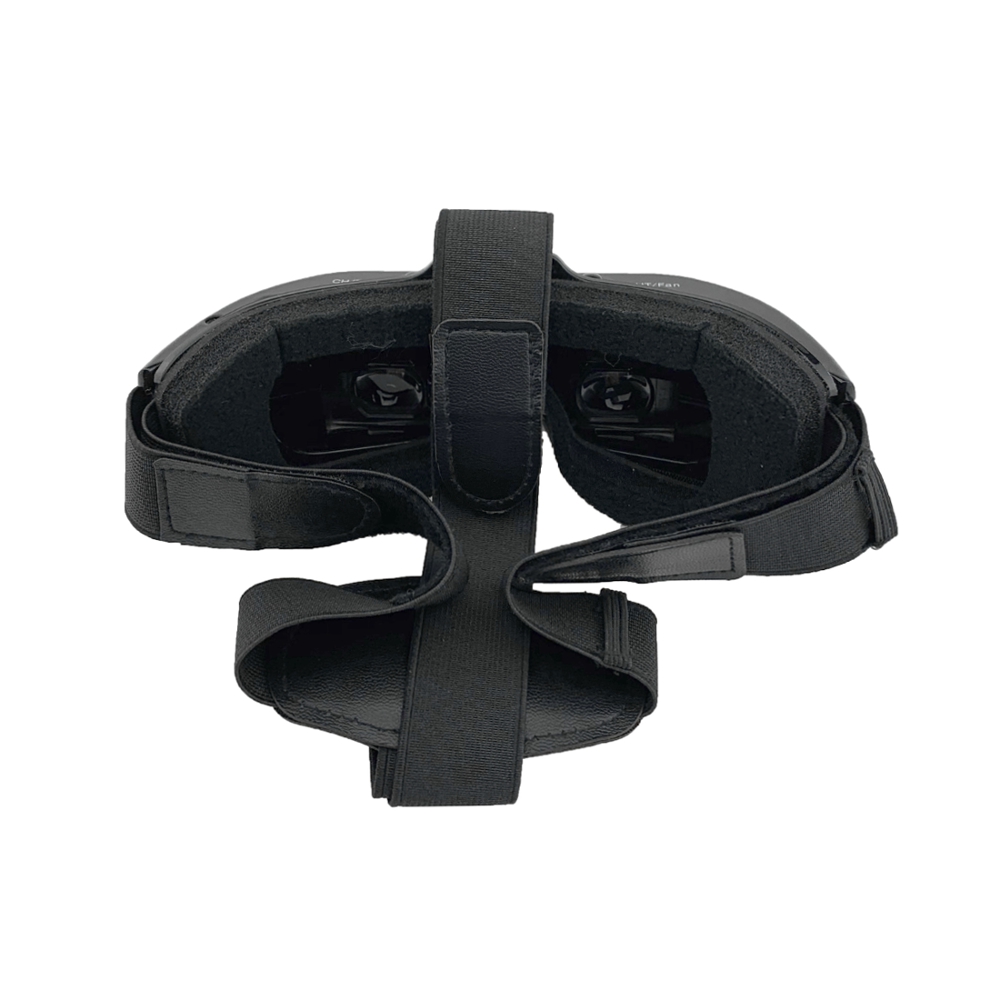

A mask with soft foam attached on all these humanized designs are intended for wearing comfort.
DESCRIPTION
Brand Name : Aomway
Model : Commander V1S Goggles
Model : Commander V1S Goggles
Weight : 172g
Package Size : 230*165*77mm
Package Size : 230*165*77mm
SPECIFICATIONS
FOV : 32°
Lens : Glass optics (binocular)
Display :854×480(WVGA) LCD display, LED backlight
3D function : Side/Side 3D (include AV 3D and HD 3D mode)
Interpupillary Distance (IPD) : 59‐69mm (Adjustable)
Audio Output : Stereo
Operation : Brightness / contrast / channel selection / display mode/DVR recording / head track switch/ mini fan switch
Video Format : NTSC / PAL auto switch
HD Input : Support 720p, C‐type high definition multimedia interface
DVR Recording : Only for RF and AV in mode, TF card support to 32GB
Video compression format : MJPG 30fps
Recording file resolution : D1 NTSC 720*480/ PAL 720*576
Head track : Modular (purchase separately)
Built‐in Receiver : Dual 64CH high‐sensitivity diversity RF module, autoswitch, channel display on screen
Auto Scan : One key starts auto search active channel within 6CH at high speed
Power Supply: DC 7‐18V (2S‐4S)
OSD display voltage status (low voltage alarm)
Operating Environment : 0 ‐ 55°C
Operating Environment : 0 ‐ 55°C
Interface:
DC in: standard 5.5*2.1 (inner positive outer negative)
AV in: 3.5mm four‐pole AV jack port
Audio: 3.5mm three‐pole earphone jack port
Head track: PS2 data port
TF card slot for recording
USER MANUAL : click here

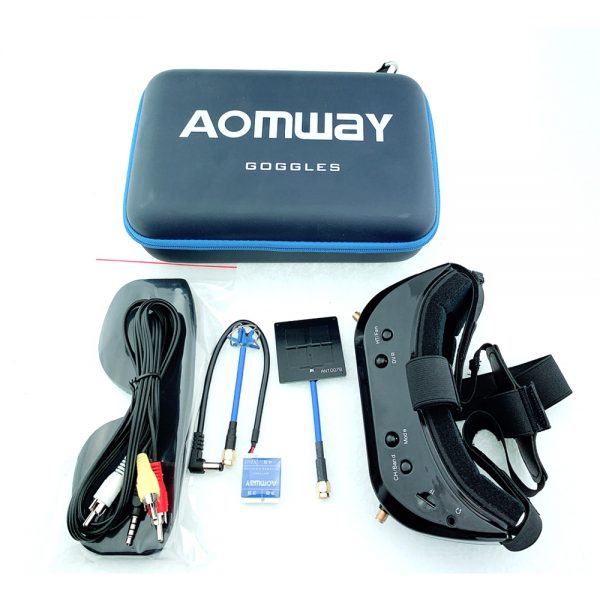

PACKAGE INCLUDED

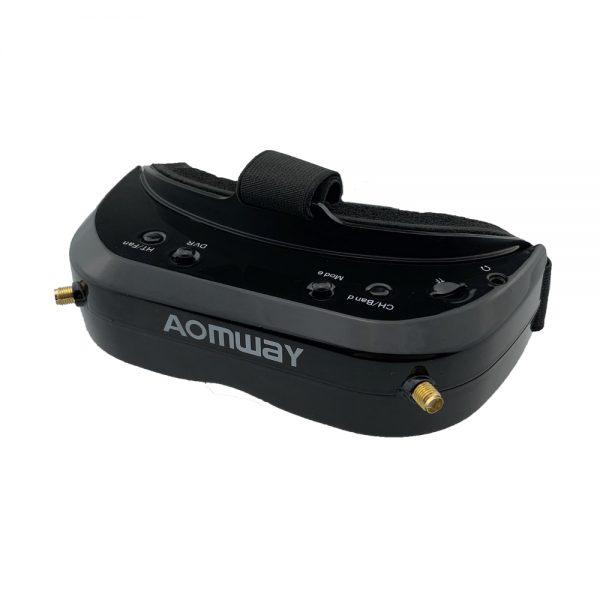

1 x AOMWAY Commander V1S FPV Goggles 854×480 64CH 5.8Ghz Diversity RF 2D/3D 720P HD Input AV-IN/OUT Built-in DVR Support Head track
1 x Carry Case
1 x AV cable
1 x JR cable
1 x cable
1 x Filtered adapter
2 x Foam (thin and thick)
1 x User manual
2 x Antenna
