Aomway 5.8G 13dbi Diamond Directional Antenna SMA RP-SMA For Receiver RC Drone

$13.90

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

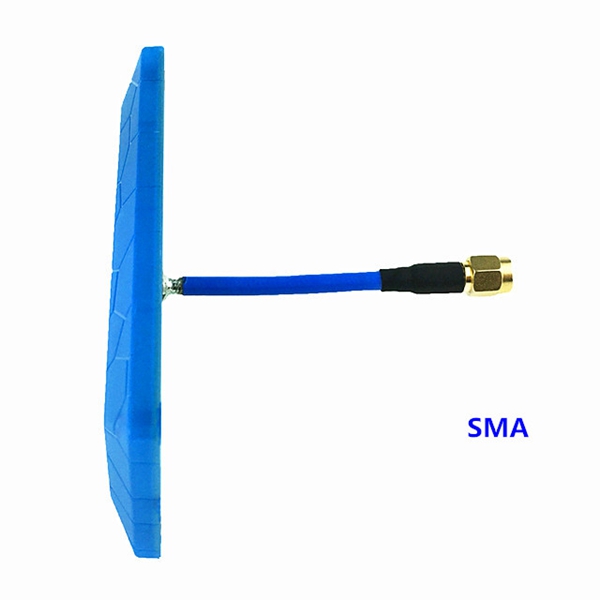

Aomway 5.8G Diamond Directional Antenna SMA RP-SMA For Receiver
Description:
Brand Name: Aomway
Item Name: 5.8G Antenna
Directivity: Directional
Frequency Range: 5.8GHz
Standing Wave Ratio: ≤1.5
Gain: 13dBi
Impedance: 50 ohm
Connector: SMA / RP-SMA (optional)
Polarization: Vertical
Angle: H 40;V40
Material: Copper & high-frequency PCB
Color: Blue
Package Content: 1 x diamond antenna
Weight: 25g
Dimensions: 103*47*10mm
Extension Cable: 75mm


Features:
Vertically polarized, high gain antenna,
Designed for use on receiver and effective angle is 40 degree; on the transmitter side,you need to use an omni antenna.
While using a 200mw transmitter with this solution, transmission range easily reaches up to 1km above .
Silver jacketed wire and 24k gold plated connector are adopted to ensure high performance.


Package Included:
1 x Antenna
