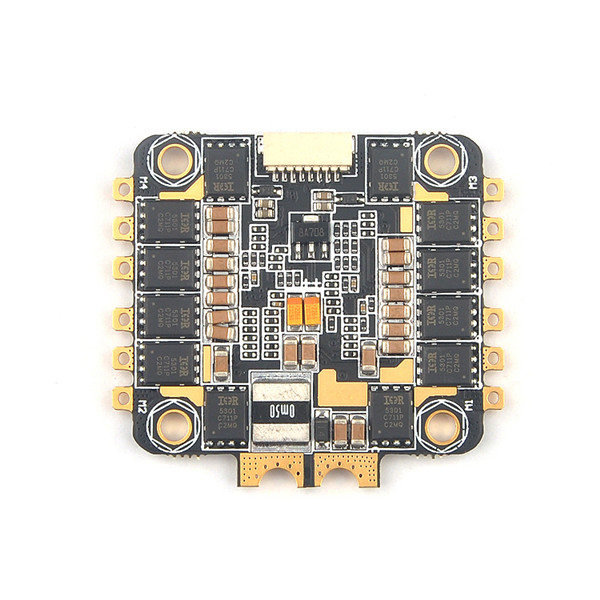

Anniversary Special Edition Racerstar REV35 35A BLheli_S 3-6S 4 In 1 ESC Built-in Current Sensor
Specification: ( User Guide)
Brand Name: Racerstar
Item Name: 35A BLheli_S 3-6S 4 in 1 ESC
Model: REV35
Con. Current: 35A
Peak Current(10s): 40A
LBEC: NO
SBEC:NO
Lipo: 3-6S
Programming: YES
Weight:13g
Size(PCB): 36x36mm
Hole size: 30.5×30.5mm
Features:
-BB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmware
-Supports 3-6S Lipo input
–4PWM input
–Built-in Current sensor
-Only 36x36mm, mount holes 30.5×30.5mm M3
-No External capacitors needed
–Dshot600 ready(Default) Support PWM/ONESHOT/MULTISHOT/DSHOT

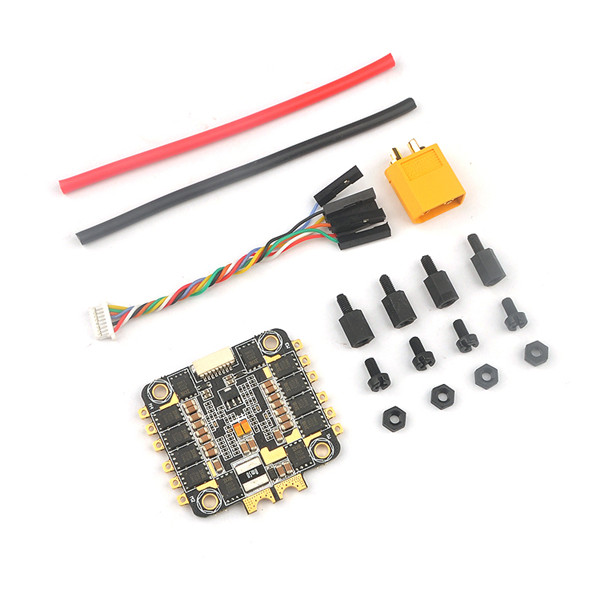

Package Included:
1x Racerstar REV35 35A 4 in 1 ESC
,
,
,
,
,
,
