Description
Description:
Brand: ALZRC

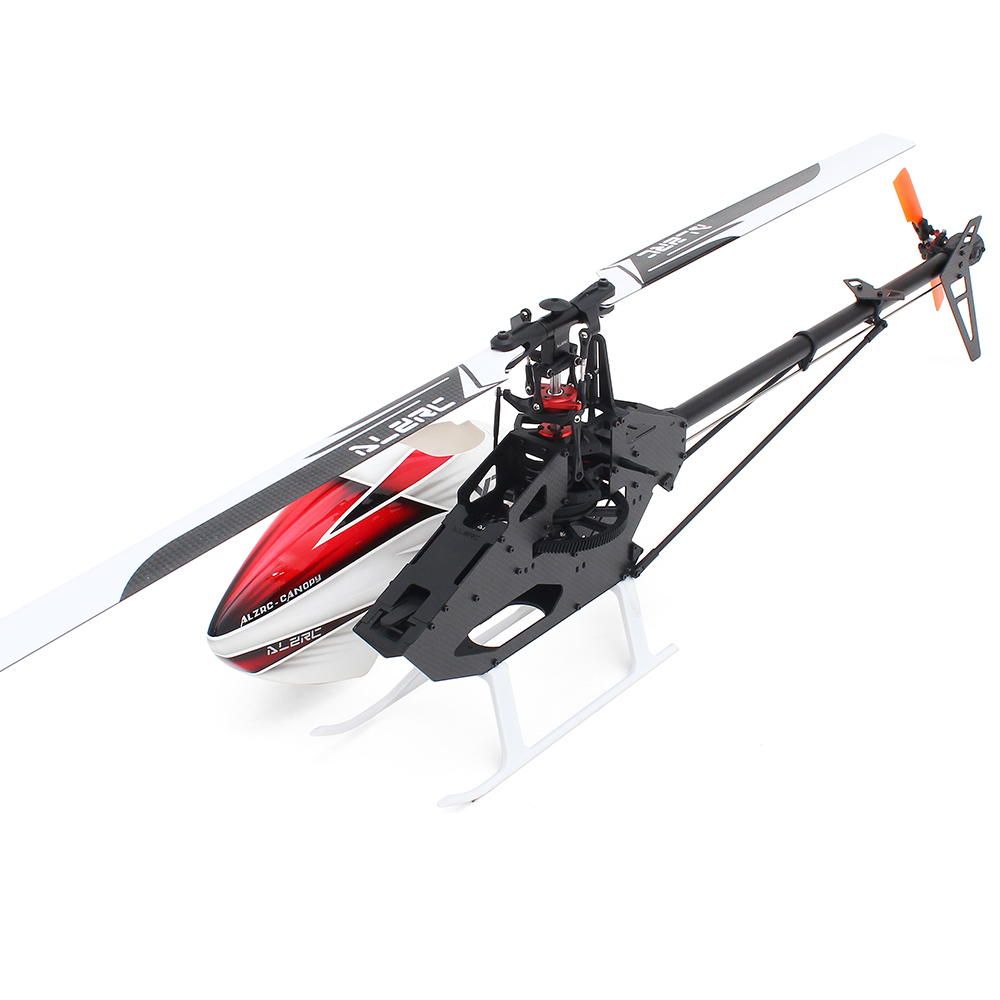

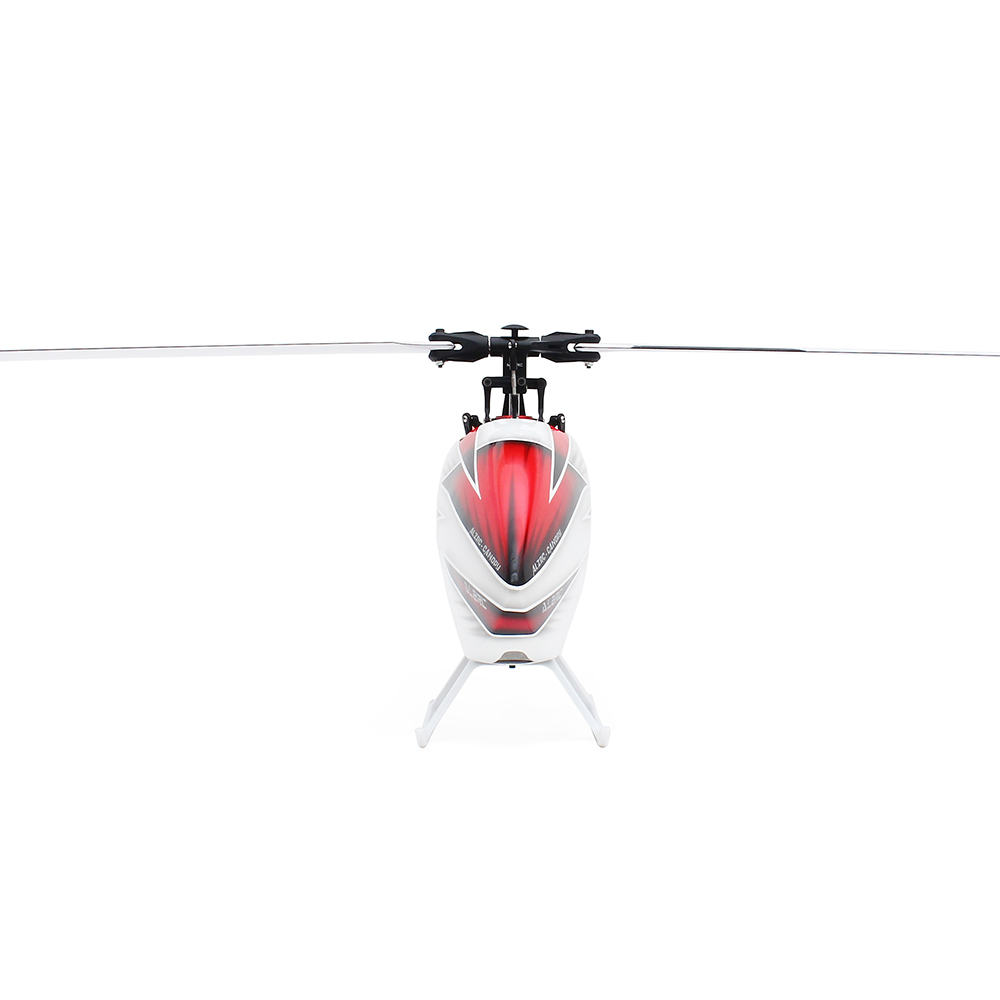

Item: X360 RC Helicopter
Channel: 6CH
Main Rotor Diameter: 805mm
Main Blade Length: 370mm
Tail Rotor Diameter: 160mm
Tail Blade Length: 62mm
Main Shaft Diameter: 6mm
Spindle Shaft Diameter: 5mm
Tail Shaft Diameter: 4mm
Tail Spindle Shaft Diameter: 3mm
Motor Size: max 32mm diameter,max 48mm height
Weight: 580g(kit)
Weight: 580g(kit)
Battery Compartment: 34*34*120mm
Motor: ALZRC 2525
ESC: ALZRC V4 50A (Hobbywind)
Servo: 3* ALZRC DS452 Servo & 1* ALZRC DS501 Servo
Gyro: K8
Color: Red
Features:
– The blade is made of 3K carbon fiber (370mm length) coordinated with unique molding technology to improves ints distortion-resistant ability,suitable for violent 3D fly.
– All machine PA engineering plastic parts are adopt the most advanced high-precision mould scheme.
– Apply FBL rotor set and with diameter of 5mm for spindle shaft and 6mm for main shaft 6061-T6 main rotor housing working with precision CNC machining, enhanced the capacity of 3D flight.
– Main rotor set's thrust bearing internal design, substantially increased the resistance of transverse forces, reduce part,s abrasion, circular pitch control is more precise and more agile, reduce mechanical fatigue of spindle shaft screws. Equipped with m4*8mm screw which increased tooth spacing and gain greater external tension.
– Brand new design swashplate with zero gap and double bearing bring you an accurate flight.
– Brand new design ESC mount, lower the installation surface which can be combined with large ESC.
– Apply slideway design for the battery mount, bring more convenient for installation and dasassembly.
Instruction manual, please click here!

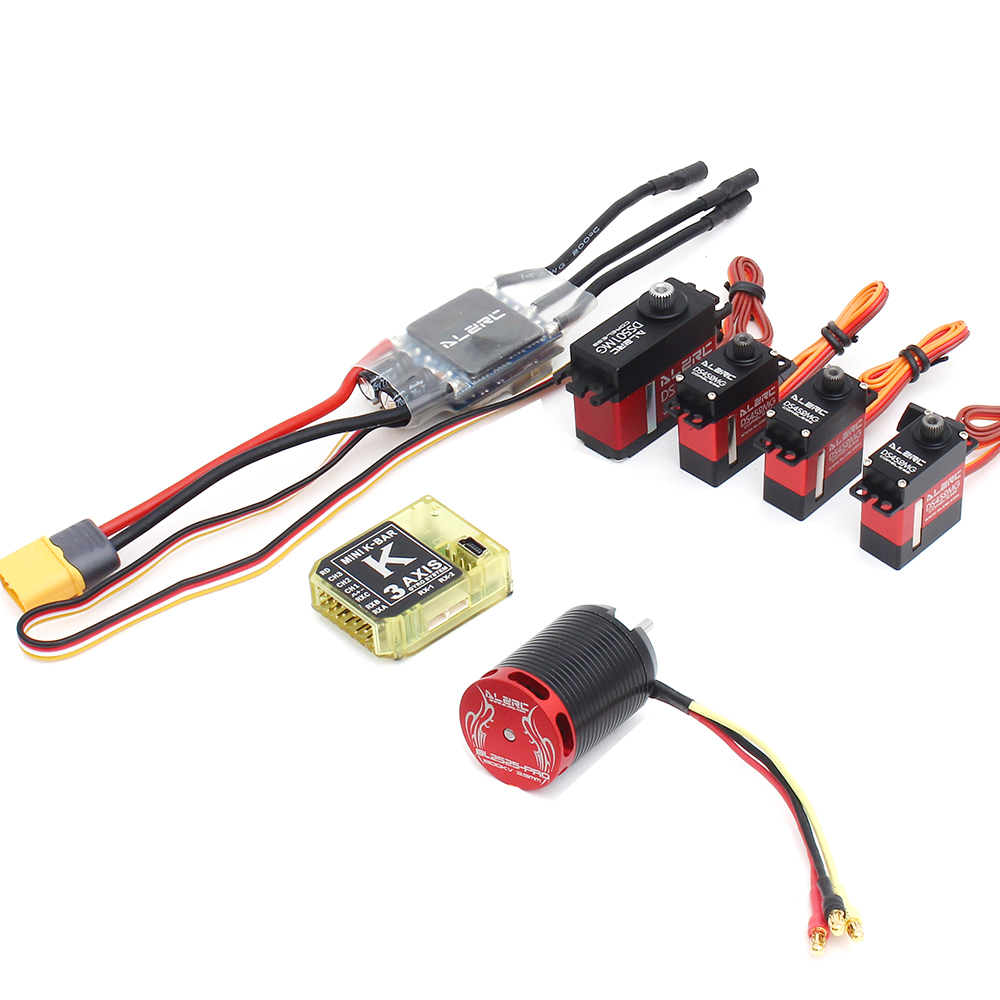

Package:
1* ALZRC X360 RC Helicopter Kit
1* ALZRC 2525 Motor
1* Hobbywind V4 50A ESC
3* ALZRC DS452 Servo
1* ALZRC DS501 Servo
1* k8 Gyro
