ALZRC Devil 380 480 Parts DS501MG 450-500 Medium Digital Metal Locked Rudder Servo For ALZRC 380 X360 RC Helicopter
Description:

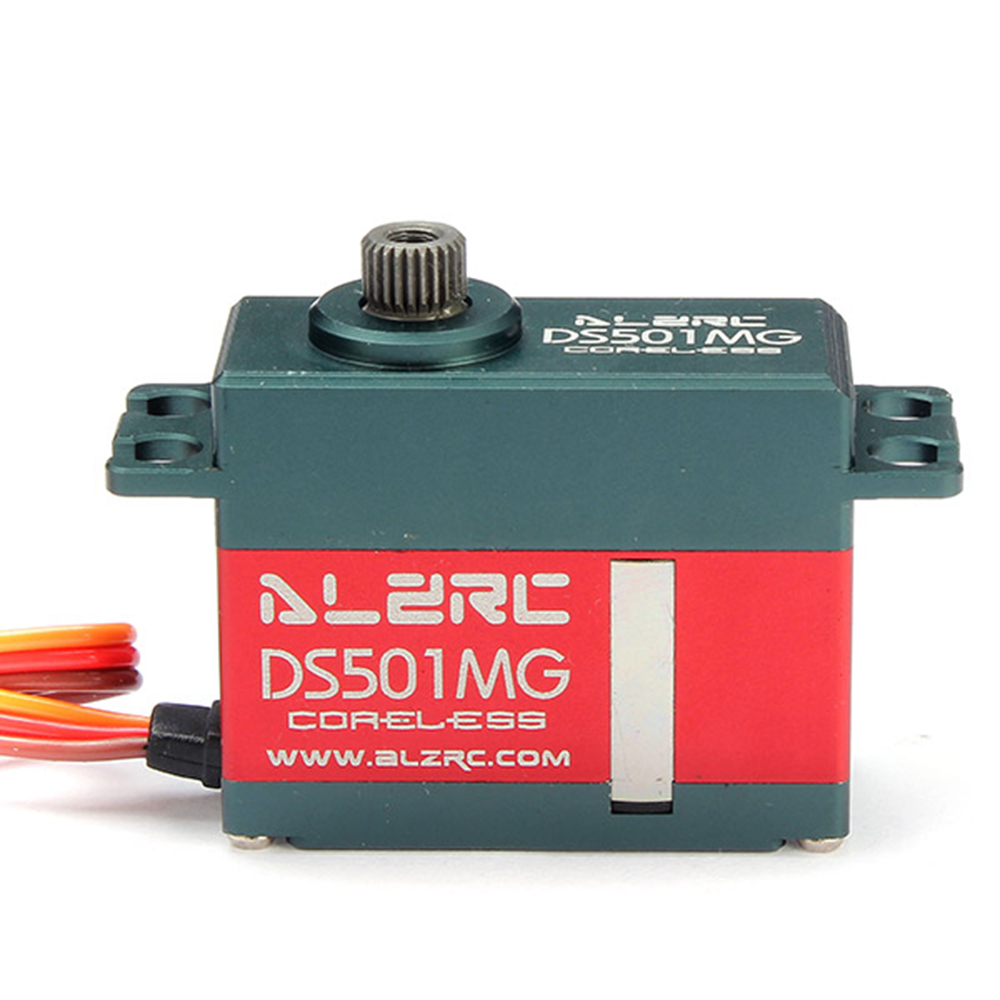

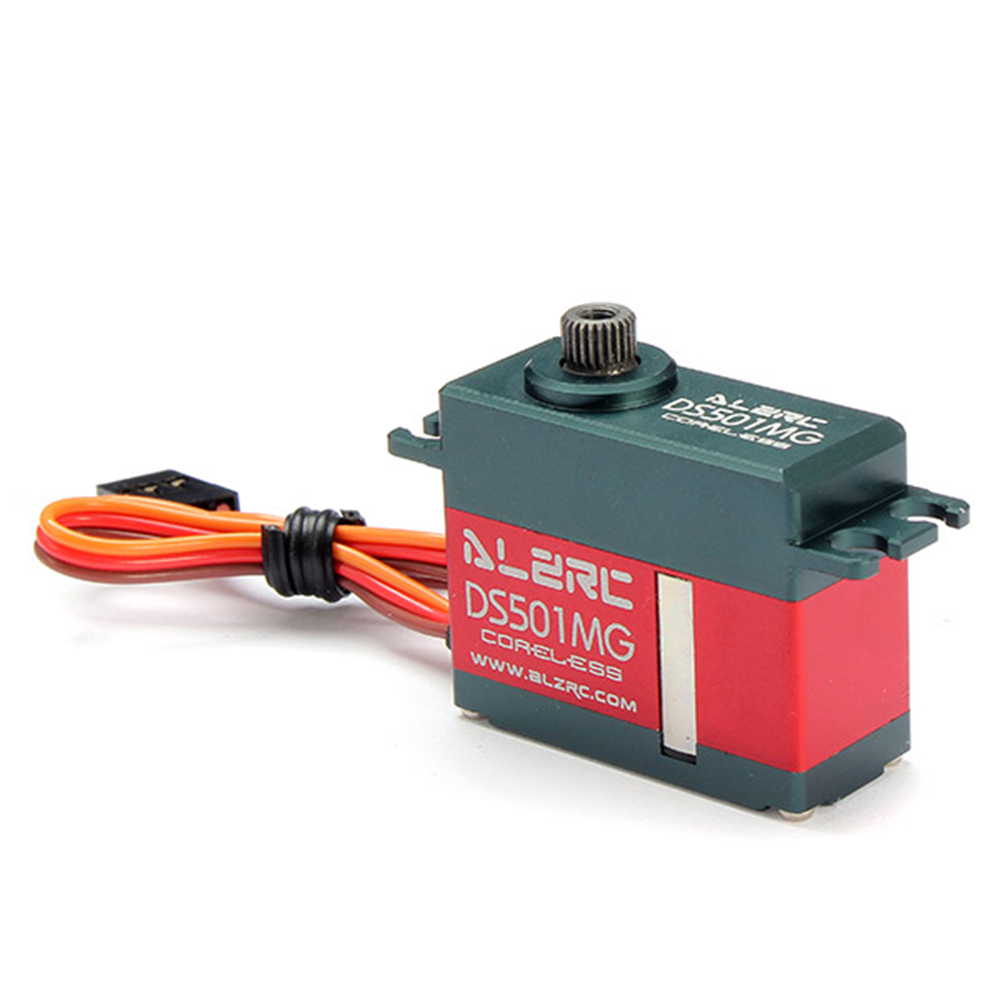

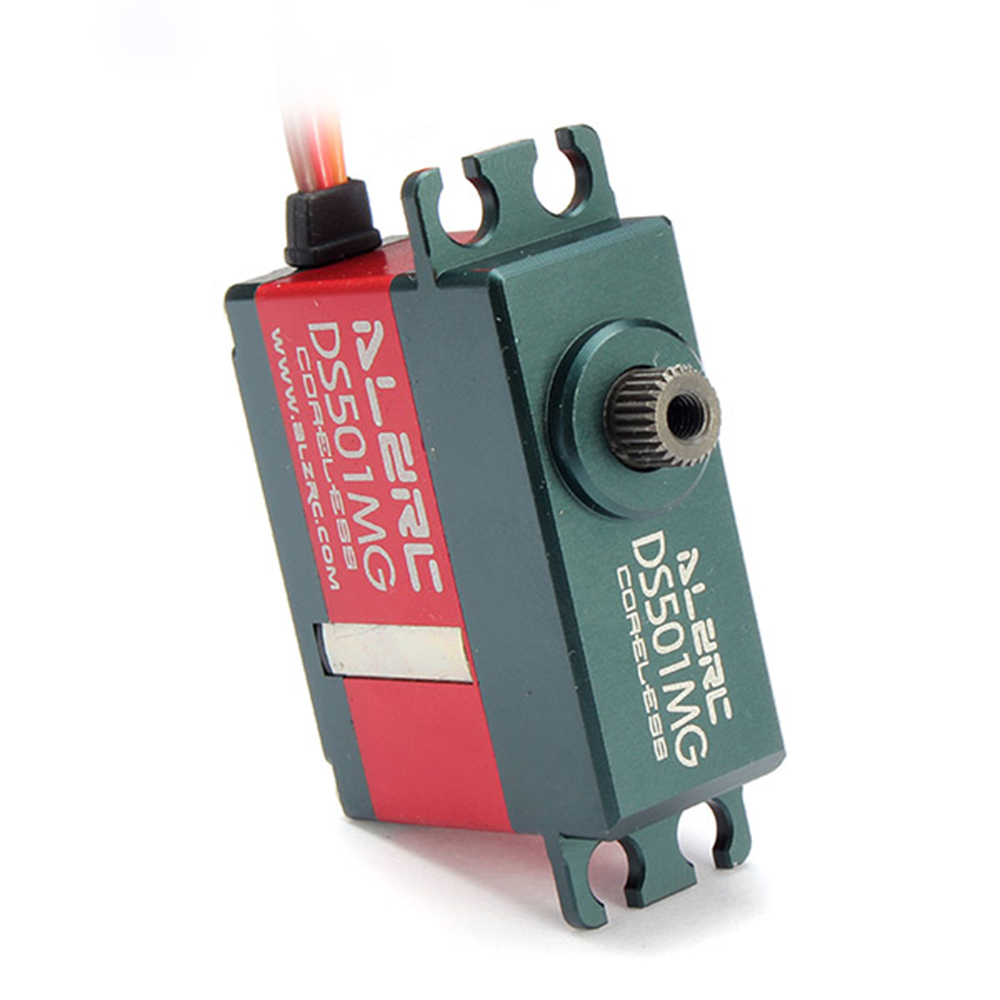

ALZRC – DS501MG 450-500 Medium Digital Metal Locked Rudder Servo
●Compatible 450-500 Class Helicopter.
●1515 type 5 pole hollow cup motor, fast response speed, low energy consumption, high efficiency, up to 5 times more than the traditional motor life, the life of the number 200000.
●Japanese potentiometer, high precision, good consistency, high life potentiometer 1000000.
●High resolution digital chip, stable performance, strong anti-interference ability, fast reaction speed, high precision, more delicate and smooth operation control.
●Aluminum alloy shell, processed by high precision CNC, better protection of the actuator product precision and cooling performance.
●All metal gears imported fromTaiwan,made of high strength aluminum alloy material,it strengthens the strength,durability of gears and higher smoothness of gears ,and makes it smaller empty spaces to gears.
●Double bearing design,imported precision miniature bearing, a greater degree of protection gear concentricity and smoothness.
Specification:
●Operating Voltage:DC6.0V-8.4V
●Working frequency:1520us/333Hz 800us-2200us
●Speed and torque:
– 6.5Kg.cm/0.05sec/60°@8.4V
– 5.5Kg.cm/0.06sec/60°@7.4V
– 4.6Kg.cm/0.07sec/60°@6.0V
●Dimensions:35.5mm x 15mm x 28.3mm
●Weight:35g
●Motor:Coreless/1515m
●Wire Length:220mm

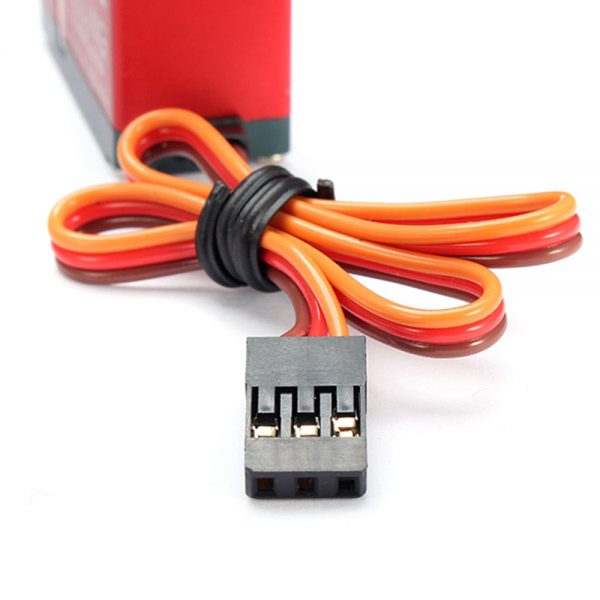

●Plug:FUT;JR Propo

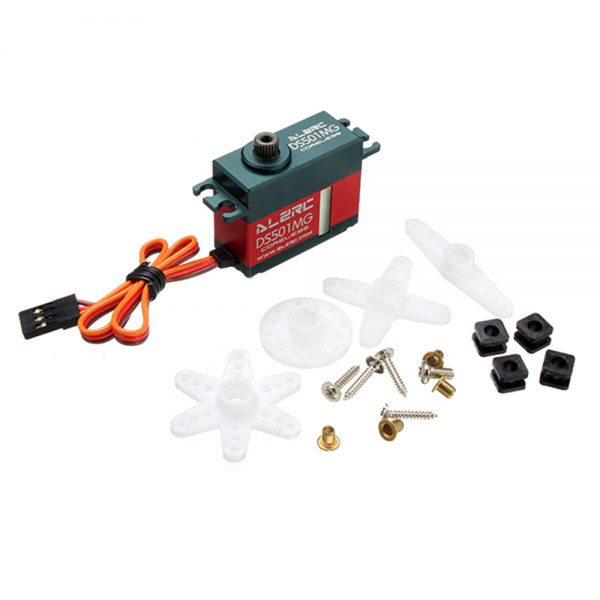

Package Includes:
1 x DS501MG Medium Digital Metal Locked Rudder Servo
1 x Hexagon Servo Arm
1 x Disc Servo Arm
1 x A Servo Arm
1 x Cross Servo Arm
4 x Damping Ring
4 x Damping Ring Copper Nuts
4 x Phillips Self-tapping Screws(T2x12mm)
1 x Phillips Screws(M3x6mm)
