Description
Description:
Compatible Devil 450 Pro / Devil 450 RIGID / Devil 465 RIGID / Devil 480 RIGID / Devil 480 FAST / Devil 380 FAST / Devil 500 Pro.
Using 1715-type 5-pole coreless motor, 1715 large motors 'speed is quicker,steering torque is greater,and using life is longer than 1515 small motors.
Japan Noble 180° potentiometer,high accuracy,consistency,and one million times the high life potentiometer.
High resolution digital chip,stable performance,strong anti-interference ability,fast reaction speed,high precision,more delicate and smooth operation control.
Aluminum alloy shell, processed by high precision CNC, better protection of the actuator product precision and cooling performance.
Taiwan imported all metal gears, input and main gear wheel made of high strength material and hard iron manufacturing, reinforcing the strength and durability of gears, a higher degree of smoothness, even smaller gear virtual spaces.
Double bearing design,imported precision miniature bearing, a greater degree of protection gear concentricity and smoothness.
Servo control signal narrowband narrower width, width can be modified more frequently, respond faster and better.
Note: narrowband receivers use the steering gear can not be directly inserted, can only choose to work through 760us gyro!
Specification:
Operating Voltage: DC6.0V-8.4V
Stall Torque/Operating Speed:
– 8.4V – 5.5Kg.cm/0.03sec/60°
– 7.4V – 5.0Kg.cm/0.035sec/60°
– 6.0V – 4.0Kg.cm/0.04sec/60°
Dimensions: 35.9(L) x 15(W) x 31.9(H)mm
Weight: 47g
Motor: Coreless
Gear: Full Metal
Working Frequency: 760us / 333Hz
Case: All CNC Aluminum
Bearing: 2BB
Overload Protection: Yes
Resolution: 4096
Connector Wire: 28AWG
Connector Wire Length: 220mm
Plug: FUT;JR Propo

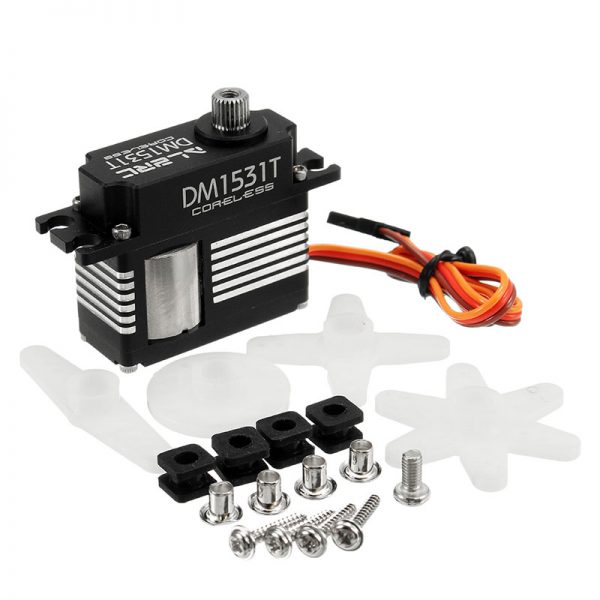

Package
1x Medium Digital Metal Locked Rudder Servo

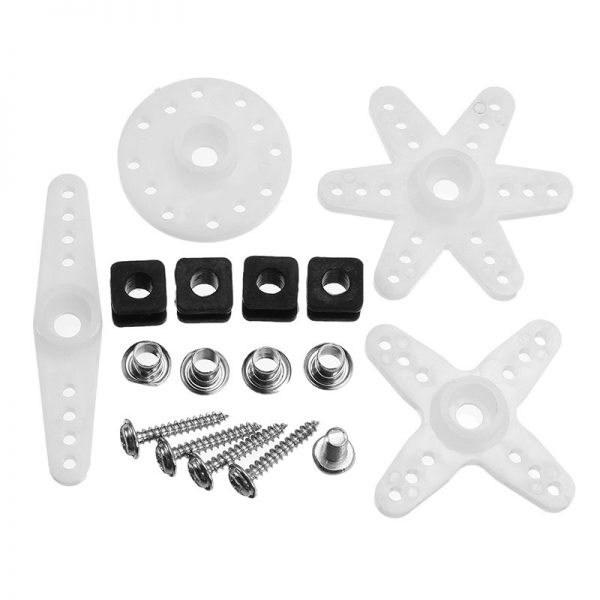

1x Hexagon Servo Arm
1x Disc Servo Arm
1x A Servo Arm
1x Cross Servo Arm
4x Damping Ring
4x Damping Ring Copper Nuts
4x Cross Self-Tapping Screw(T2x12mm)
1x Cross Screw(M3x6mm)
