Description
Description:
●Using 1715-type 5-pole Coreless motor, 1715 large motors 'speed is quicker,steering torque is greater,and using life is longer than 1515 small motors.
●Japan Noble 220°potentiometer,high accuracy,consistency,and one million times the high life potentiometer.
●High resolution digital chip,stable performance,strong anti-interference ability,fast reaction speed,high precision,more delicate and smooth operation control.
●Aluminum alloy shell, processed by high precision CNC, better protection of the actuator product precision and cooling performance.
●Taiwan imported all metal gears, input and main gear wheel made of high strength material and hard iron manufacturing, reinforcing the strength and durability of gears, a higher degree of smoothness, even smaller gear virtual spaces.
●Double bearing design,imported precision miniature bearing, a greater degree of protection gear concentricity and smoothness.
Specification:
Operating Voltage: DC4.8V-8.4V
Stall Torque/Operating Speed:
– 6.0V – 9.00Kg.cm/0.08sec/60°
– 7.4V – 10.50Kg.cm/0.07sec/60°
– 8.4V – 12.00Kg.cm/0.06sec/60°
Dimensions: 35.9mm x 15mm x 31.9mm
Weight: 47g
Motor: Coreless 17x15mm
Potentiometer Type: Japan Noble 220°
Chip Type: Digital
Gear: Full Metal
Horn Gear Spline: 25T Φ 5.9mm
Working Frequency: 1520us/333Hz
Case: All CNC Aluminum
Bearing: 2BB
Overload Protection: Yes
Resolution: 4096

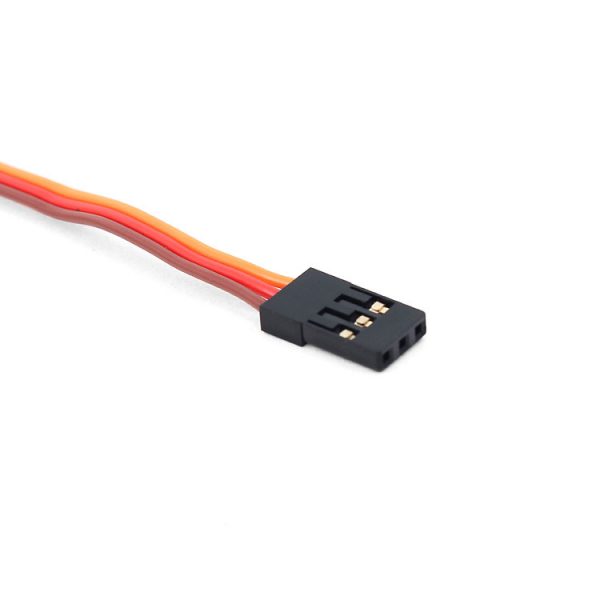

Connector wire: 28AWG
Connector Wire Length: 220mm
Plug: FUT;JR Propo
Packaging included:

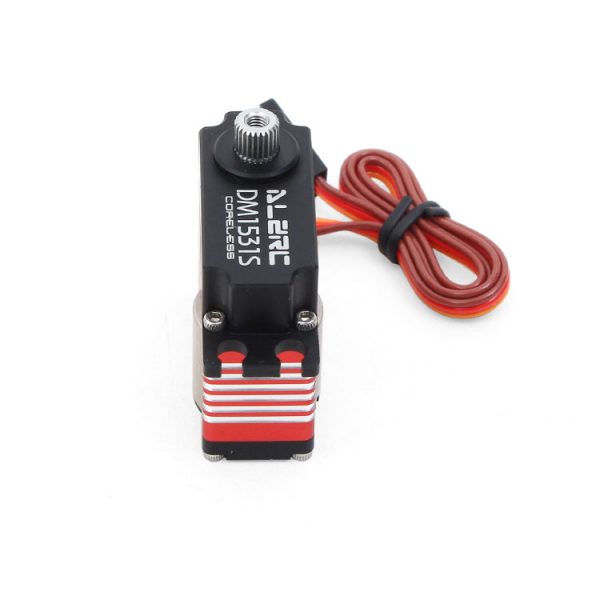

1 x ALZRC CCPM Medium Digital Metal Servo
