Description
Description:
Compatible Devil 450 Pro / Devil 450 RIGID / Devil 465 RIGID / Devil 480 RIGID / Devil 480 FAST / Devil 380 FAST.
1215 type 5 pole hollow cup motor, fast response speed, low energy consumption, high efficiency, up to 5 times more than the traditional motor life, the life of the number 200000.
Japanese potentiometer, high precision, good consistency, high life potentiometer 1000000.
High resolution digital chip, stable performance, strong anti-interference ability, fast reaction speed, high precision, more delicate and smooth operation control.
Aluminum alloy shell, processed by high precision CNC, better protection of the actuator product precision and cooling performance.
All metal gear imports from Taiwan , output gear used Dutai processing, strengthen the gear strength and wear-resisting degree, more smooth, more small gear virtual.
Double bearing design, imported precision miniature bearing, a greater degree of protection gear concentricity and smoothness.
Specification:
Operating Voltage: DC4.8V-8.4V
Stall Torque/Operating Speed:
– 8.4V – 5.6Kg.cm/0.052sec/60°
– 7.4V – 4.8Kg.cm/0.065sec/60°
– 6.0V – 4.1Kg.cm/0.072sec/60°
Dimensions: 23(L) x 12(W) x 26.3(H)mm
Weight: 20g
Motor: Coreless
Gear: Full Metal
Dead Band Wigth: 2.0us
Working Frequency: 1520us / 333Hz
Case: All CNC Aluminum
Bearing: 2BB
Overload Protection: Yes
Resolution: 4096
Spilne: 25T
Connector Wire: 28AWG
Connector Wire Length: 220mm
Plug: FUT;JR Propo

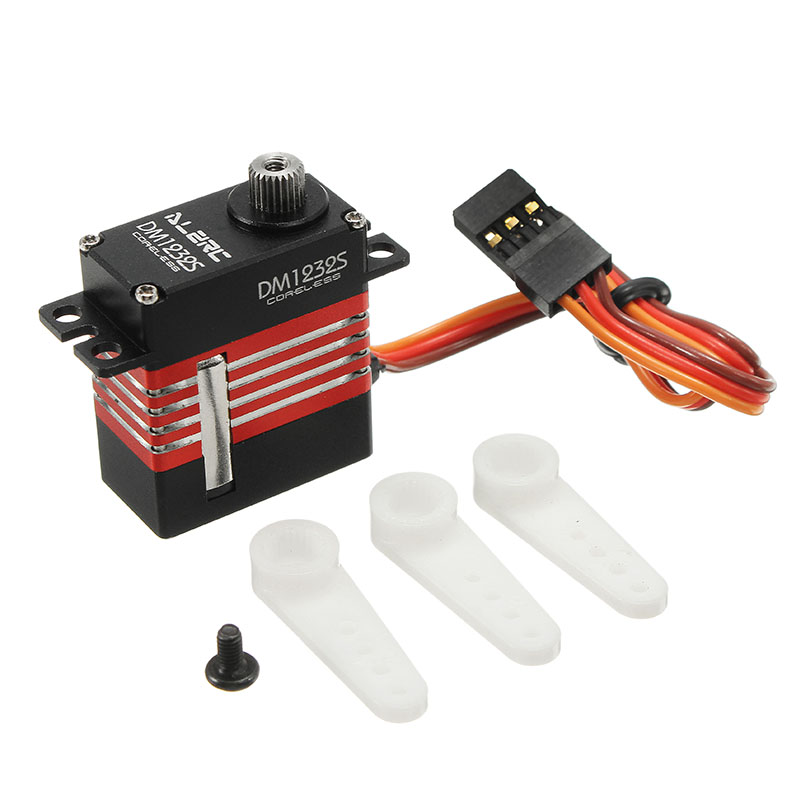

Packaging:
CCPM Micro Digital Metal Servo x 1

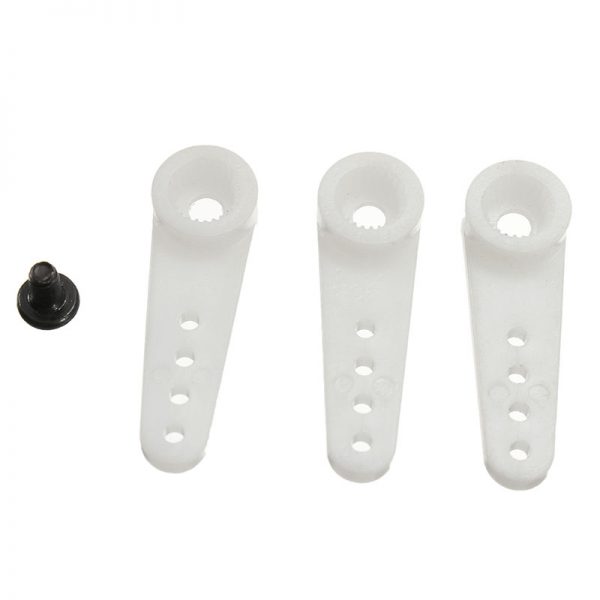

Servo Arm – A x 3
Cross Screw(M2.5x4mm) x 1
