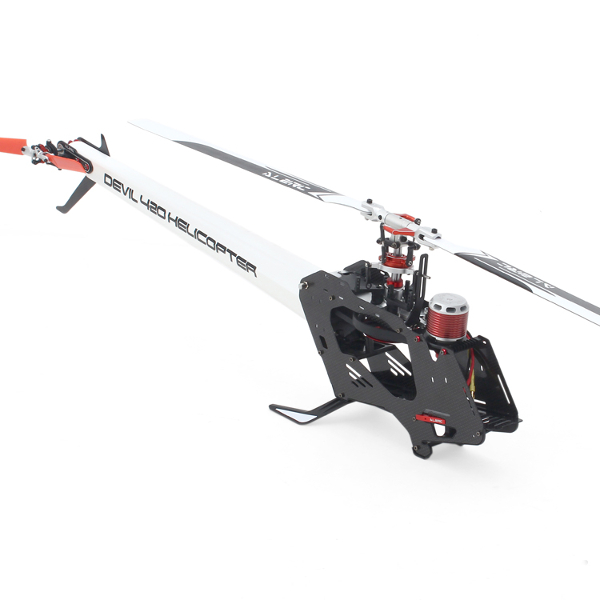

Brand new DEVIL 420 FAST, adhering to last generation of excellence flight performance and collocate with 425mm carbon fiber main blade and 19t gear, optimize the gear ratio, provide a better endurance and operating experience. The unique appearance just as a symbol of “L” and reveals the classic beauty.
Specification:
Main Rotor Diameter:935mm
Main Blade Length:420mm

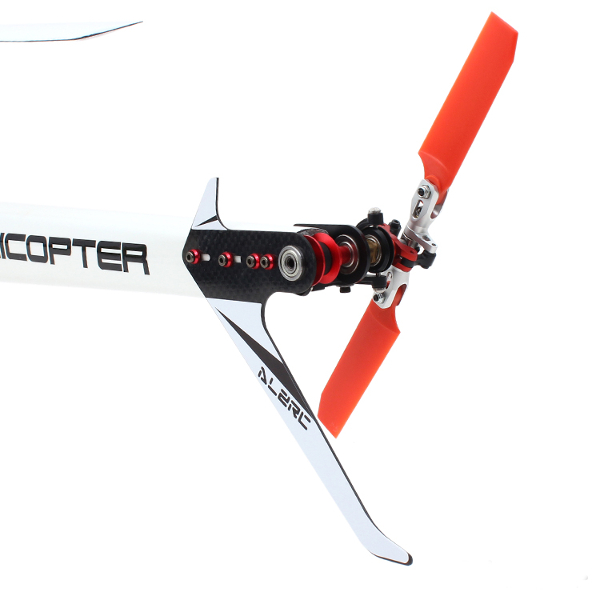

Tail Rotor Diameter:196mm
Tail Blade Length:70mm
Main Shaft Diameter:8mm
Tail Shaft Diameter:5mm
Motor Size:Maximum 41mm diameter, maximun height 41mm.
Battery Compartment:44x44x130mm
Radio Transmitter And Electronic Equipment Required For Assembly:
1.Transmitter: 6-channel or More,Helicopter System
2.Receiver: 6-channel or More
3.Pitch Gauge: Digital Pitch Gauge
4.Battery: 6S/22.2V 1500~2600mAh Li-Po Battery
5.Motor: RMC-BL3120 1000kv 6S Brushless Motor(5mm spindle) x 1
6.ESC: 50~80A Brushless ESC x 1
7.Swashplate Servo: Micro Digital Metal Servo x 3
8.Tail-lock Servo: Coreless Servo x 1
9.Gyroscope: Flybarless Gyro System x 1
10.Other: Plug & Assemble Tools Set
Package included:
1 x Devil 420 FAST FBL KIT
1 x ALZRC – Pentium-60A-V4 Brushless ESC
1 x ALZRC – 380X 6S Brushless Motor 1000KV 5.0mm – RMC-BL3120
1 x ALZRC – DM1531T Coreless Servo
3 x ALZRC – BLS521MG Medium Digital Metal Locked Rudder Servo
1 x MINI KBAR K-BAR K8 V2
,
,
,
