Description
Description:
-With flybarless head rotor set. 6061T aluminum precision CNC processing technic, equipped with silver-red present more high fidelity.
Rotor head using 5mm-diameter spindle shaft and 8mm-diameter main shaft.
-With FBL pros and cons linkage rod,Plastic dual-bearing swashplate.
-With all-Plastic swashplate servo mount, accurate fixed position.
-Improved with all-metal 5 fixed points motor mount.
-Big battery compartment and slideway design, more convenient for install and disassemble.
Wide selection of batteries with different capacities 6S 1500~2600 mAh.
-Plastic locked rudder servo mount, apply to Medium-sized servo.
-With magnetic quick release canopy mounting bolt.
-Adapting Medium performance Tail Drive Gear Belt.

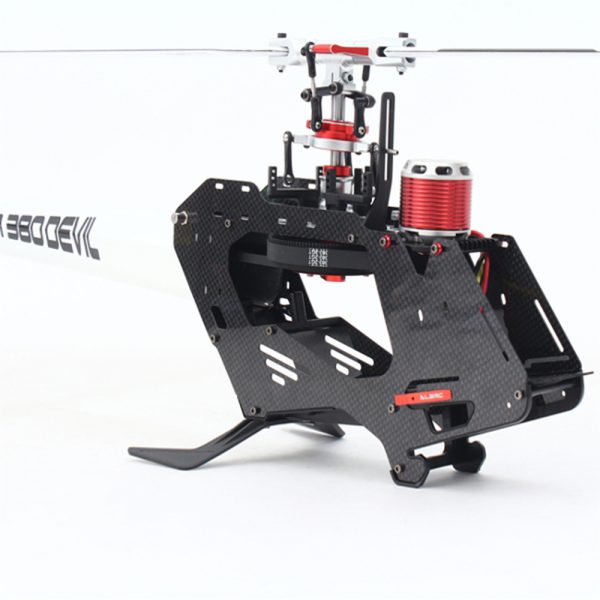

-New improved 1.2mm carbon fiber compound frame,over 90% of screw using Taiwan Fang Sheng 12.9-Class socket button head screw,
equipped with red aluminium screw washer.
-With plastic gyro mount.
-Improved and thickened carbon fiber tail boom.
-Improved tail holder set, apply to most commercially 5mm tail blade. (That is 500-Class tail blade)
-With plastic tail rotor control arm assembly.

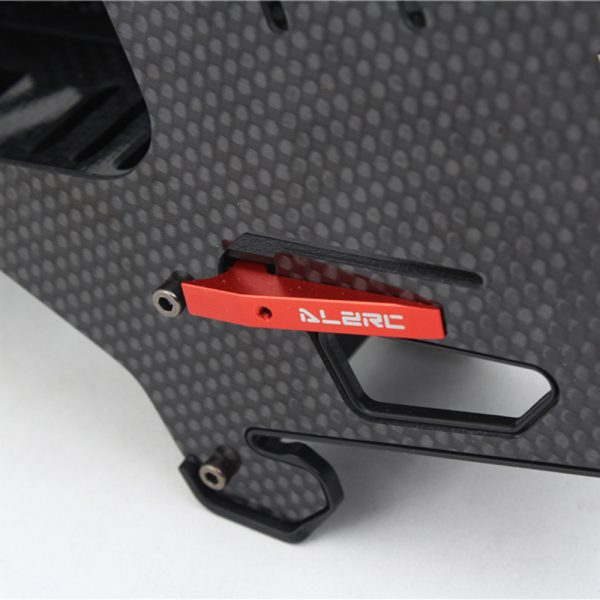

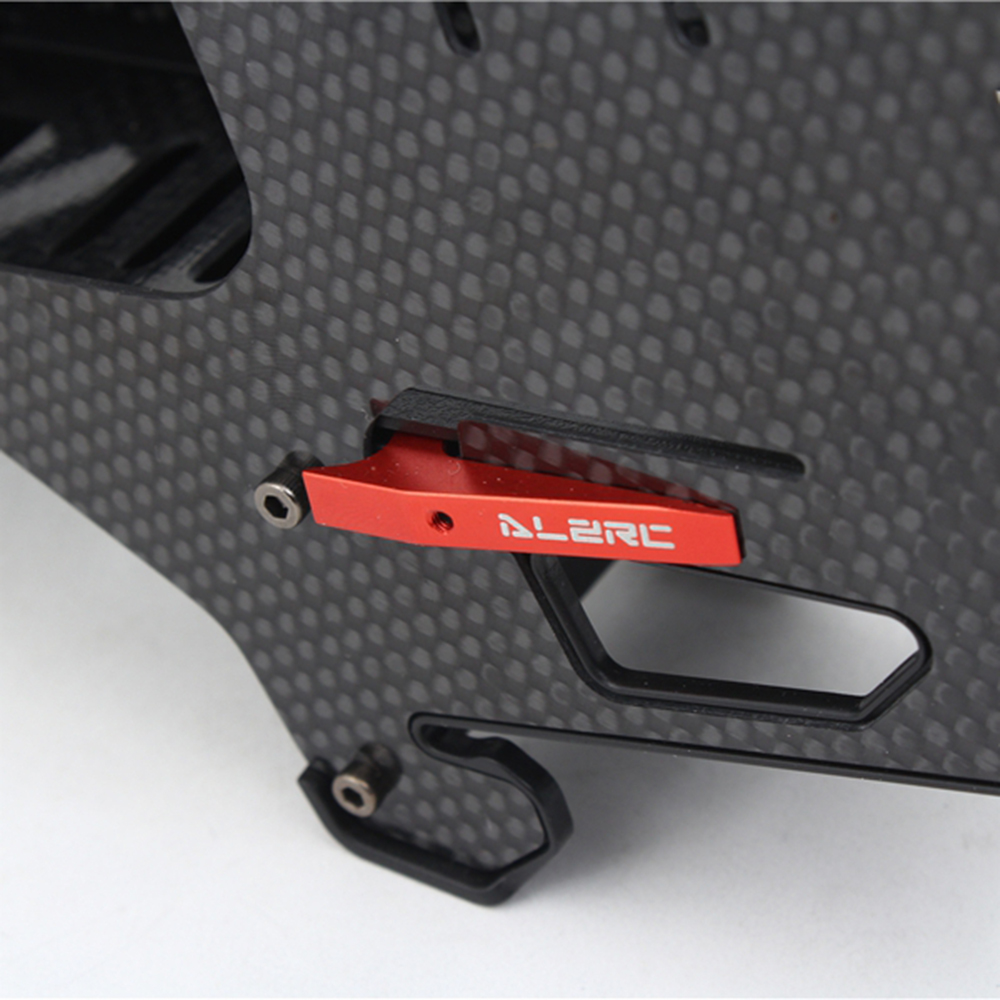

-come with 1 piece 1.2mm Carbon Battery Mount.
-The key parts of the screw with a gasket,and the decorative gasket be canceled.
-Improved with simple and elegant canopy Combo.
Specification:
Length:784mm
Heigh:224mm
Main rotor diameter: 856 mm
Main blade length: 380mm
Tail rotor diameter: 196 mm
Tail blade length: 70 mm
Main shaft diameter: 8 mm
Tail shaft diameter: 5 mm
Note: Yellow white canopy comes with black main rotor holder and black red motor. Red white canopy comes with silver main rotor holder and silver red motor.
Recommended Parts(Not Included):
Battery 22.2V 1800mah 6S 30C Lipo Battery Click here
Radio System: Above 6ch
INSTRUCTION MANUAL: Click here
The differences with the Devil 380 RC Helicopter: Most of the metal parts replaced with plastic parts and some parts more thin.
-Plastic Servo Mount
-Plastic Anti-Rotation Bracket
-Plastic Bell Crank Lever
-Plastic Radius Arm
-Plastic Gyro Mount
-Plastic Tail Boom X Fixing Pieces
-Plastic Tail rotor control arm
-Medium performance Tail Drive Gear Belt
-1.2mm Carbon Vertical Stabilizer
-1.2mm Carbon Fiber Main Frame
-1.2mm Carbon Battery Mount 1 piece

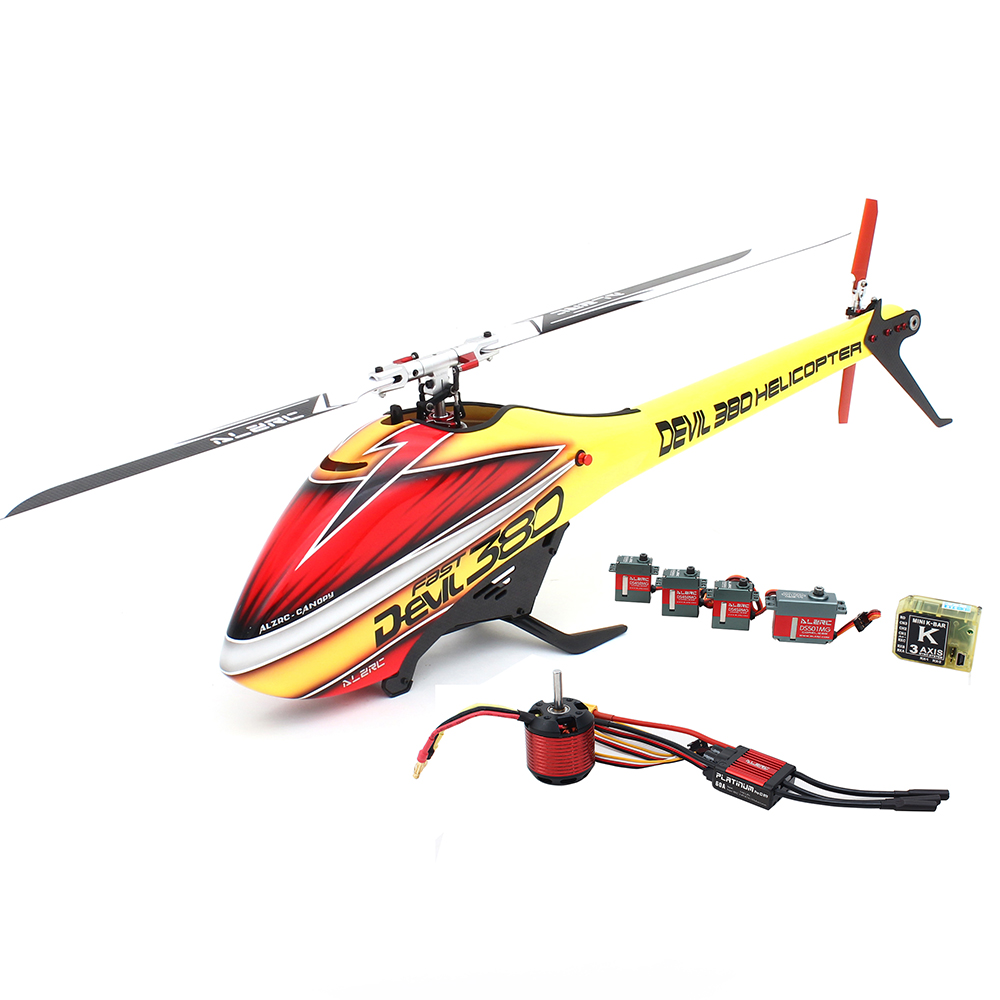

Package Included:
1x Devil 380 Helicopter
1x 1000KV Motor
1x ALZRC V4 60A ESC
3x ALZRC 452 Swashplate Servo
1x ALZRC 501 Tail Servo
1x KBAR K8 3 Axis Gyro
