Description
Specification:
– Stator Diameter: 25.0mm
– Stator Thickness: 25.0mm
– No. of Stator Arms: 12
– Magnet Poles: 8
– Motor KV: 1800KV
– No-Load Current(IO/10V): 1.5A
– Motor Resistance(RM): 0.039
– Max Continuous Current: 40A
– Max Continuous Power: 1000W
– Max. Peak Current: 55A
– Max. Peak Power: 1375W
– Weight: 111g
– Outside Diameter: 31.5mm
– Body Length: 46mm
– Shaft Diameter: 3.5mm
– Overall Shaft Length: 62.2mm
– Max Lipo Cell: 6S
– Motor Timing: 15
– Drive Frequency: 16-32kHz

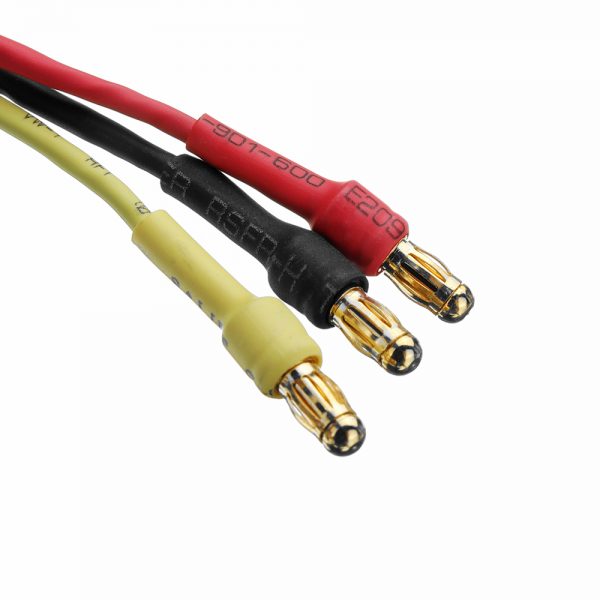

– Plug: 3.5mm Gold-plated Banana Plugs
Packaging Included:
1x ALZRC Motor
