Description
Feature
470EFL Main Rotor Head provides superior flight stability and offers a lower CG design to reduce flying resistance while providing a more rigid and fast rotor head response. To improve the strength and durability of the main and feathering shaft the 470 main shaft outer dimension was increased from Ø5mm to Ø6mm, while the feathering shaft outer dimension was increased from Ø4mm to Ø5mm.
The 470LT has adopt a high standard 1.2mm 3K carbon fiber main frame and a wider body design which increases the size of the battery compartment allowing the use of larger capacity battery. The 470L utilizes a new torque drive assembly, highly reduce gear abrasion and increase power output gives more direct and precise flight performance and extraordinary tail performance. The landing skid is tilted 5 degrees forward to improve crashworthiness and makes T-REX470L more avant-garde and dynamic.
Specification
●Length: 755mm
●Height: 210mm
●Width: 108mm
●Main Blade Length: 380mm
●Main Rotor Diameter: 850mm
●Tail Rotor Diameter: 181mm
●Motor Pinion Gear: 11T
●Main Drive Gear: 121T
●Autorotation Tail Drive Gear: 104T
●Tail Drive Gear: 28T
●Drive Gear Ratio: 11:1:3.71
●Weight(w/o battery): Approx. 871g
Accessories

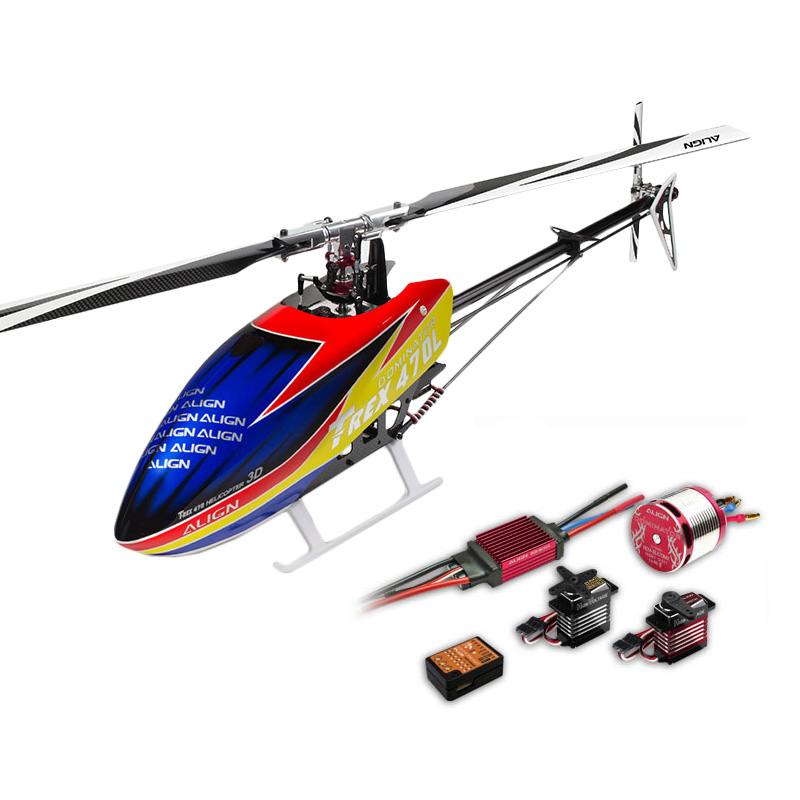

●T-REX 470LT DOMINATOR Set x 1
●380 Carbon Fiber Blades x 1set
●69 Tail Blade x1set
●470MX Brushless Motor(1800KV/2818) x 1
●DS450M Digital Servo x 3
●DS455M Digital Servo x 1
●RCE-BL50X 50A Brushless ESC x 1
Radio transmitter and electronic equipment required for assembly:
●Transmitter(6-channel or more,helicopter system)
●Receiver(6-channel or more)
●Pitch gauge or Digital Pitch Gauge
●6S Li-Po 1400~1900mAh battery x 1
,
,
,
,
,
,
,
,
,
