Description

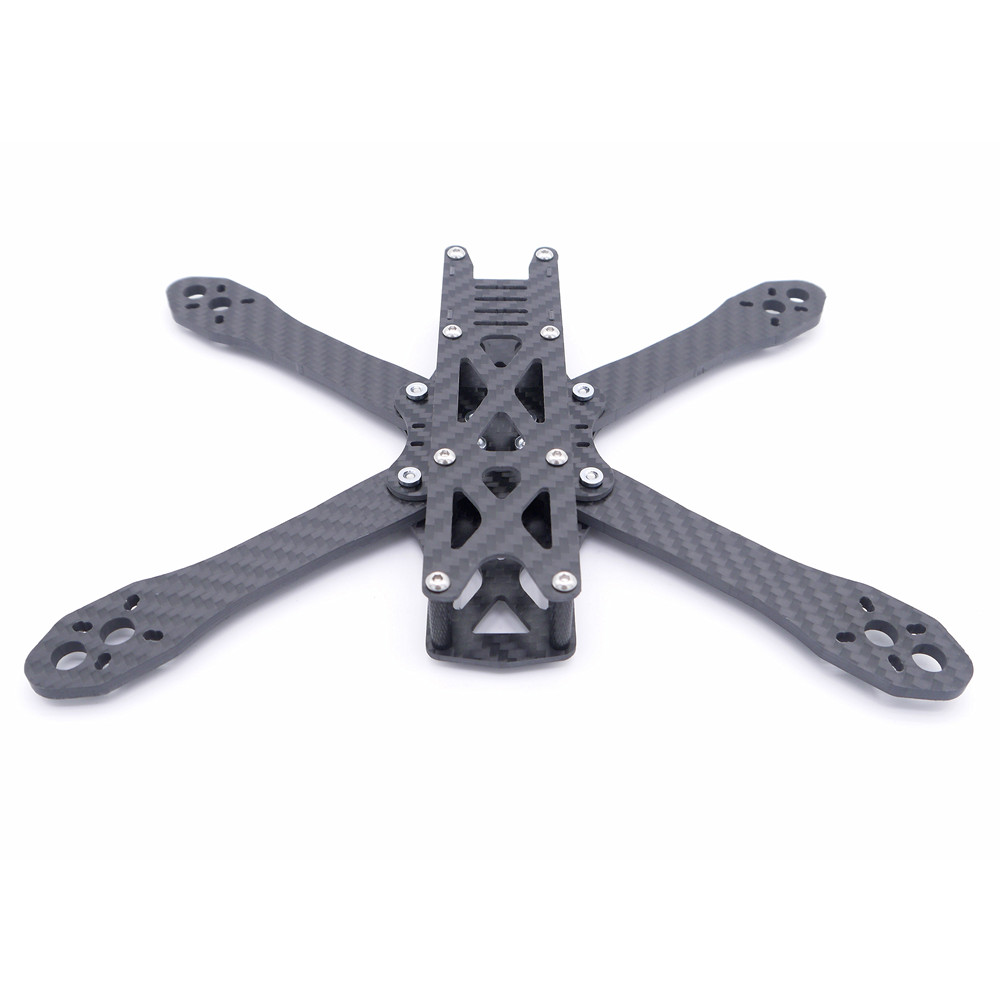

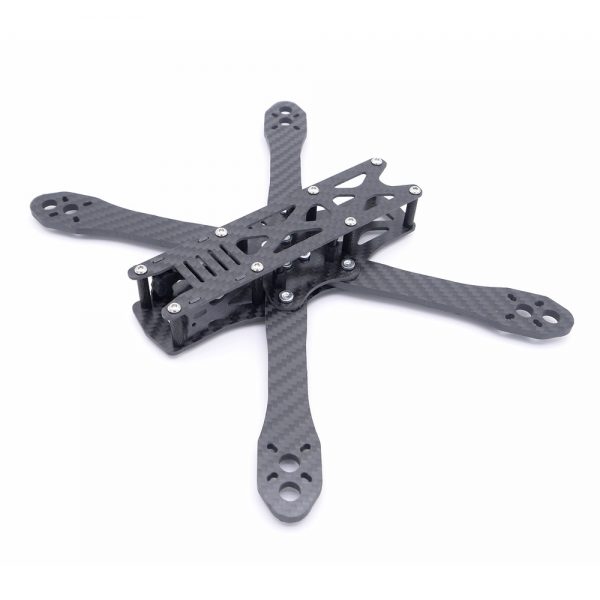

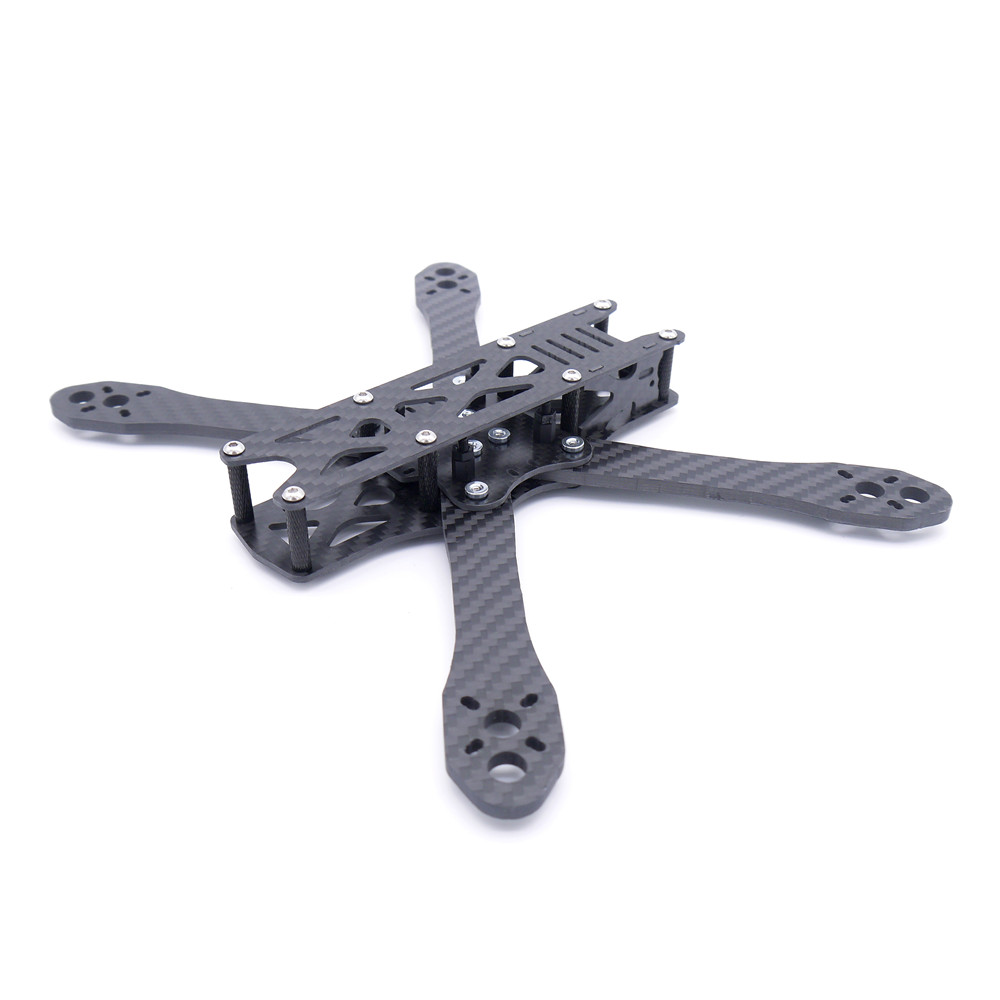

Alien Slam 5 225mm Wheelbase 4mm Arm Thickness 3K Carbon Fiber 5 Inch Frame Kit for RC Drone
Specification:
Item Name: 225mm 5 Inch Racing Frame Kit
Modle: Alien Slam 5
Version: Basic Version / Standard Version
Wheelbase: 225mm
Arm Plate Thickness: 4mm
Bottom Plate Thickness: 2mm
Other Plate Thickness: 1.5mm
Inner Installing Height: 20mm ( Basic Version) ; 28mm ( Standard Version)
Camera Mounting Width: 19mm ( Basic Version) ; 28mm ( Standard Version)

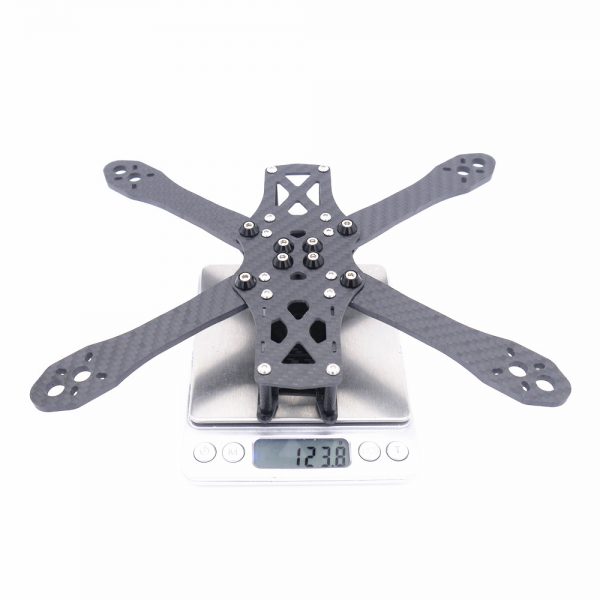

Weight: 118g ( Basic Version) ; 123.8g ( Standard Version)
Recommend Parts:
Flight Controller: 30.5×30.5mm F3/ F4 Flight Controller
Brushless ESC: 20-50A ESC
Brushless Motor: 2204/ 2205 /2206 /2306 Motor
Propeller: 5 Inch
Camera Mounting Width: 19mm ( Basic Version) ; 28mm ( Standard Version)
Lipo Battery: 3-4S Lipo Battery
The following Parts are Compatible: ( Not Included)
FC & ESC & VTX Stack: DYS Omnibus F4 Pro Flight Controller + F30A 4in1 _S DShot600 ESC
LDARC KK Super Flytower F4 FC w/ 48CH 25-600mW VTX & 40A ESC
Brushless Motor: Racerstar Racing Edition 2205 BR2205 2300KV 2-4S Brushless Motor
DYS Samguk Series Shu 2306 2250KV 2500KV 2800KV 3-4S Motor
Propeller: 10 Pairs Kingkong 5×4.5×3 5045 5 Inch 3-Blade Propeller CW CCW
10 Pairs GEPRC 5040 V2 5 Inch 3 Blade Propeller Transparent Color
FPV Camera: RunCam Micro Swift 2 600TVL CCD FPV Camera ( for Basic Version)
RunCam Eagle 2 Pro 800TVL CMOS Camera ( for Standard Version)
Lipo Battery: AHTECH Infinity 1500mAh 3S 11.1V 85C Lipo Battery XT60 SY60
Package Included:
1x Alien Slam 5 225mm Frame Kit
