Description

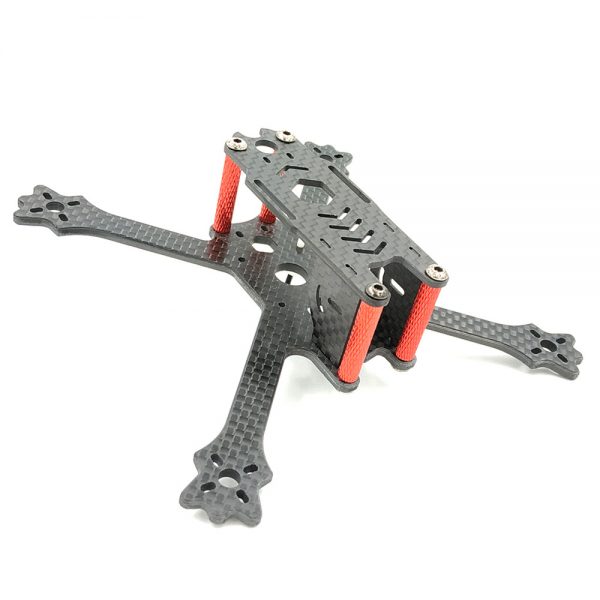

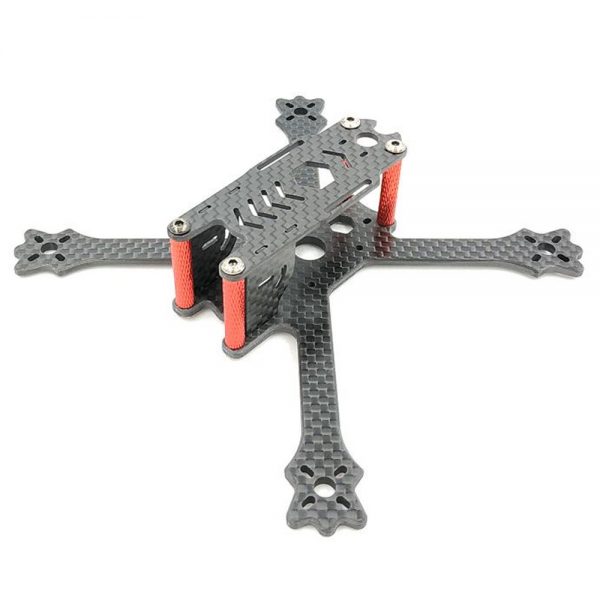

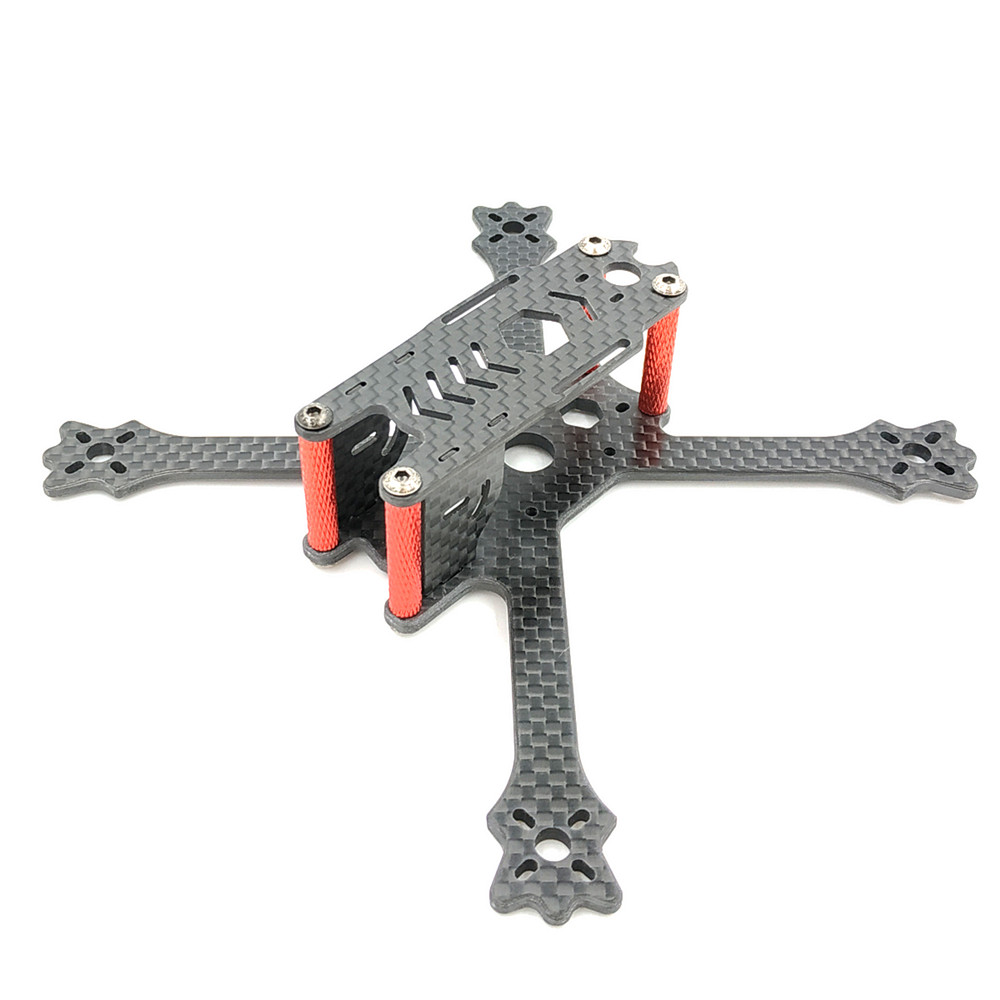

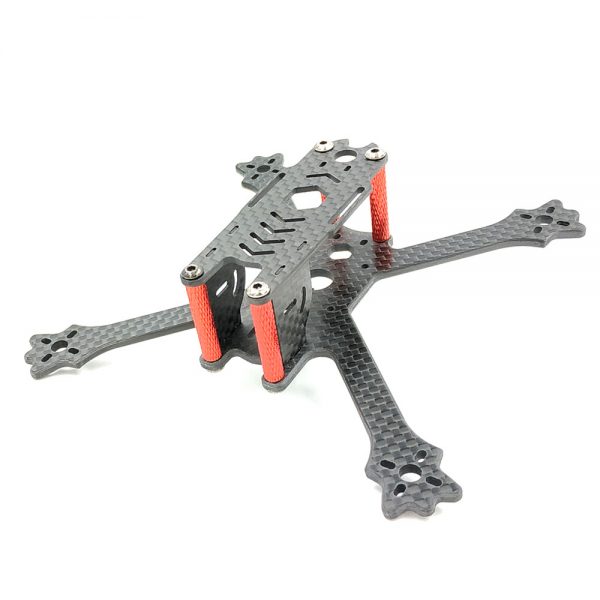

AlfaRC ATX-140 140mm Wheelbase 3mm Arm Ture X 3K Carbon Fiber Frame Kit for RC Drone FPV Racing
Specification:
Brand Name: AlfaRC
Model: ATX-140
Item Name: 140mm X Type Racing Frame Kit
Wheelbase: 140mm
Material: 3K Carbon Fiber
Bottom Plate Thickness: 3mm
Upper Plate Thickness: 2mm
Side plate thickness: 1mm
Height of aluminum column:25mm.
Camera angle range: 0-50 degree
Recommend Parts:
Flight Controller: 20x20mm F3 / F4 Flight Controller
Motor: 11XX-16XX…Brushless Motor
ESC: 10-100A Brushless ESC
Propeller: ≤3inch
Battery: 2-6S 500-900mAh Lipo Battery
support RunCam Micro series / /
The following parts are compatible: ( Not Included )
FC & ESC Flytower: LDARC KK20 Stack 20A BL_S ESC & Omnibus F4 FC AIO OSD
HGLRX XJB F438 Stack F4 FC AIO & 33A BLheli_S 4in1 ESC
Brushless Motor: Emax RS1106 RS1106 4500KV 6000KV 7500KV Motor CW
Propeller: Emax AVAN Rush 2.5 Inch 3 Blade Propeller 2 CW & 2 CCW
Lipo Battery: GAONENG GNB 7.4V 600mAh 2S 50C Lipo Battery XT30 Plug
Package Included:
1x AlfaRC ATX-140 140mm Frame Kit
