Description

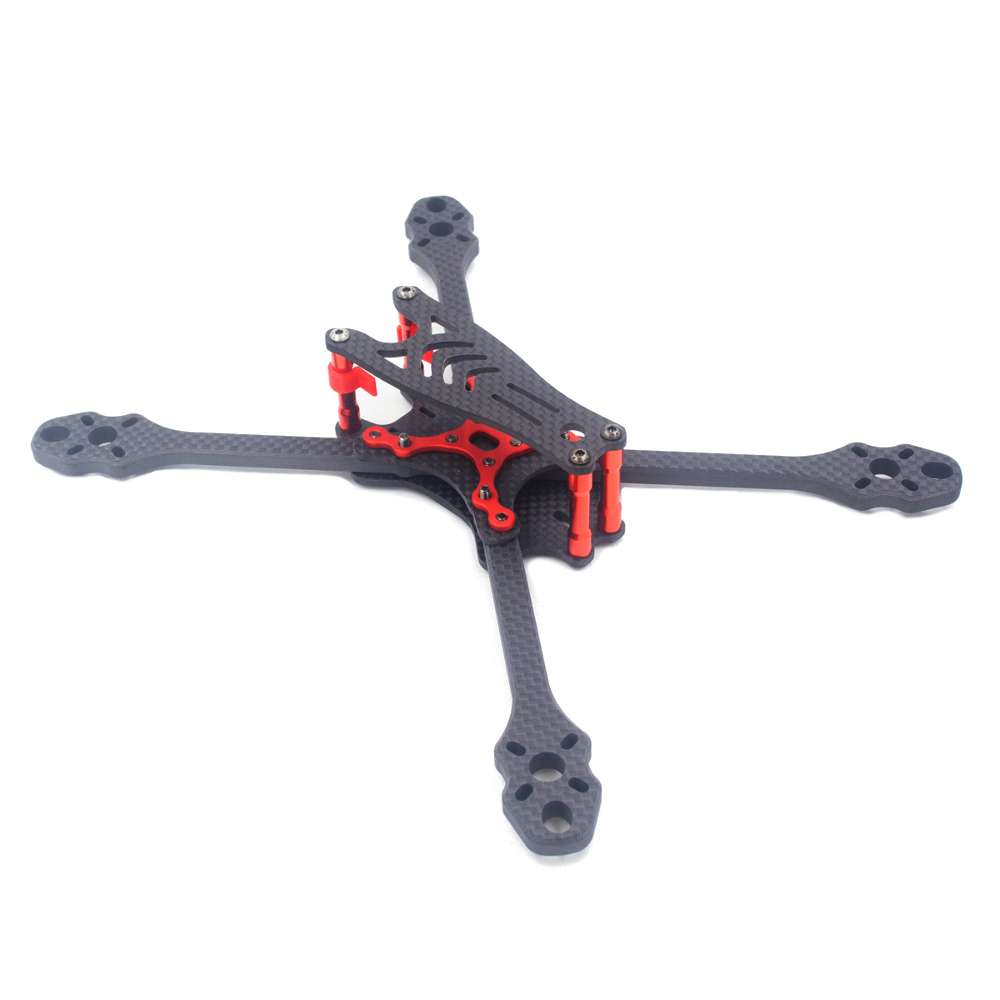

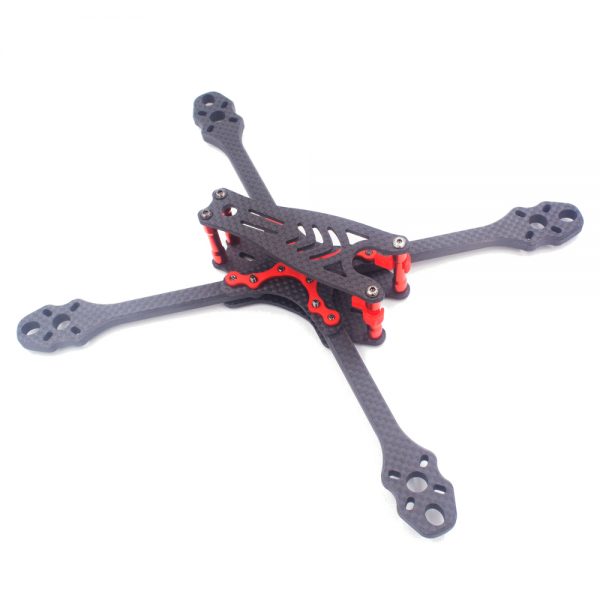

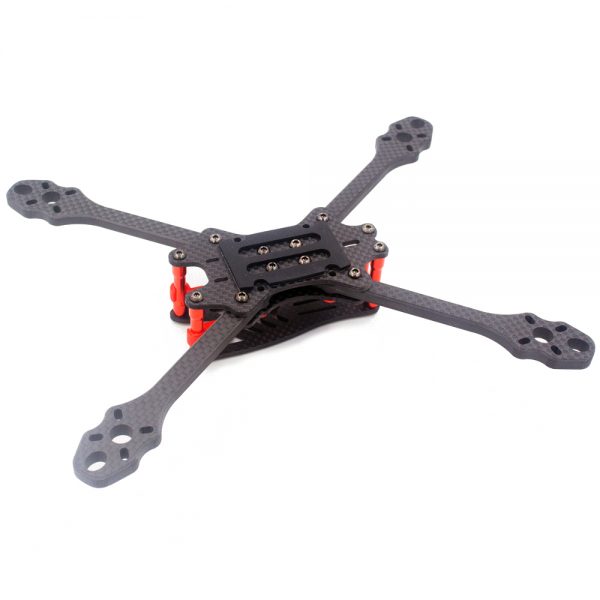

ALFA Monster 6mm Carbon Fiber 5/6/7inch FPV Freestyle Stretch X Quadcopter Frame Kit for RC Drone
Click here to buy replace Arm.
Specification:
Item name: ALFA Monster Frame Kit
Wheelbase: 215mm(5inch)/245mm(6inch)/275mm(7inch).
Arm Thickness: 6MM.
Bottom Plate Thickness: 2.5mm.
Upper Plate Thickness: 2.5mm.
Height of aluminum column:30mm.
Camera angle range: 0-90°.
Weight: 95g/103g/110g.
Material: 3K Carbon Fiber.
Recommend Parts(not included):
Flight Controller: Tower System/Kiss/F4/F3/Naze32/CC3D(Hole distance:30.5*30.5mm).
Motor: 22XX/23XX/24XX/25XX/26XX/27XX…Brushless Motor.
ESC: 20-100A Brushless ESC.
Propeller: 5-7inch.
Battery: 3/6S 1300-2200mAh Lipo Battery
Features:
Quick disassembly design
6MM independent arm, fast demolition, unique design virtual bit less.
We also designed a fixed four arm of the aluminum alloy, so that the arm is not easy to shift.
stretch X structure, suitable for racing with Freestyle fancy flight.
The position of the motor compartment is widened and the collision is not easy to hit the motor.
According to individual needs, can choose the frame assembly of battery on or under.
support RunCam Micro series FOXEER Micro series CADDX.US Micro series……and other FPV camera.
Package Included:
1X ALFA Monster Frame Kit
