Description

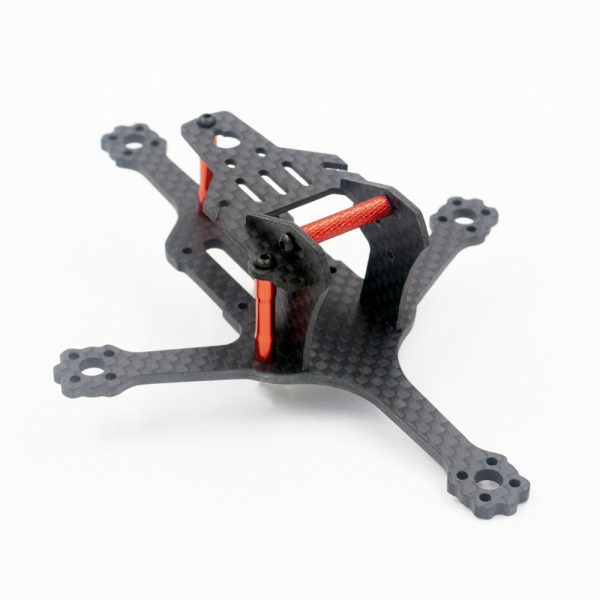

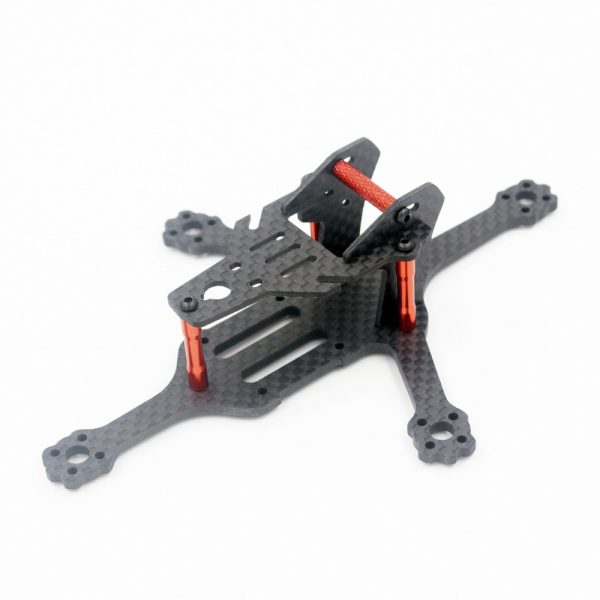

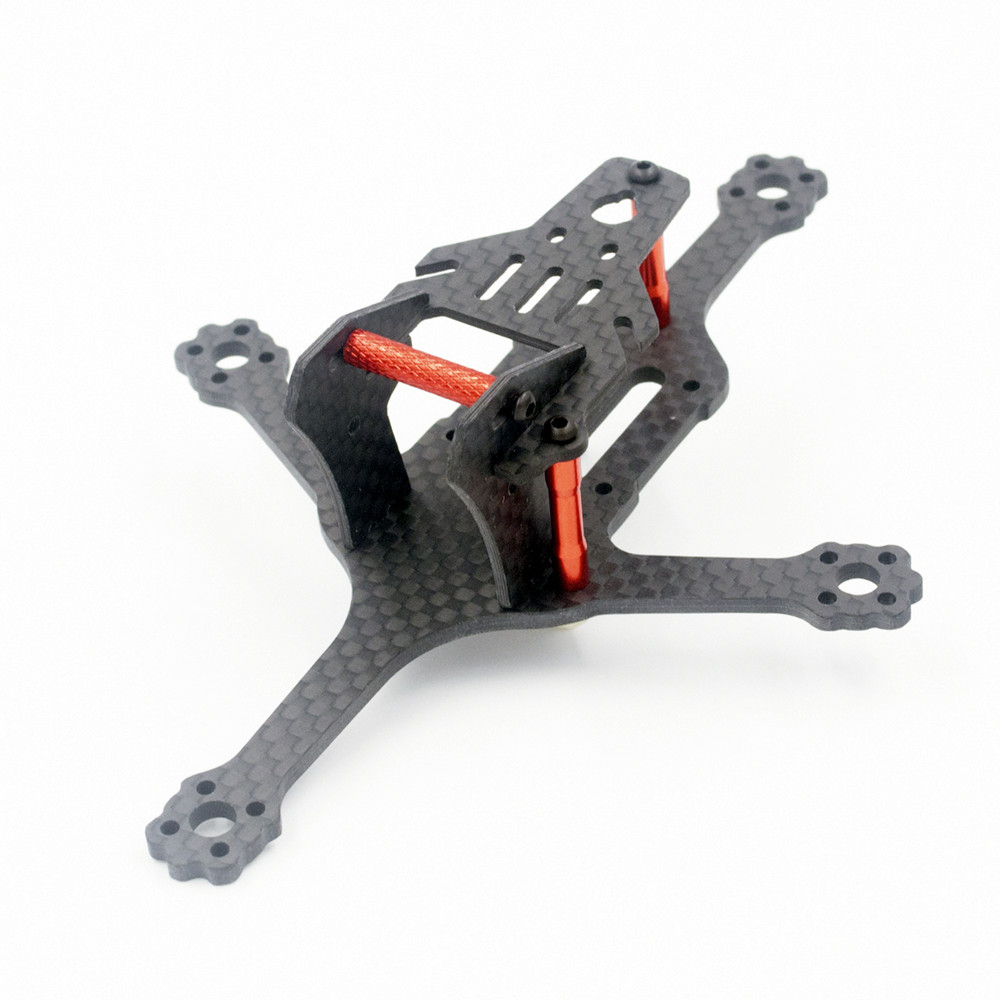

ALFA Falcon 120 2 Inch 120mm/84mm Wheelbase 2.5mm Arm 3K Carbon Fiber Frame Kit for RC Drone
Specification:
Brand Name: ALFA
Model: Falcon 120
Item Name: 2 Inch 120mm/84mm Racing Frame Kit
Material: 3K Carbon Fiber
Wheelbase: 120mm / 84mm
Bottom Plate Thickness: 2.5mm
Arm Plate Thickness: 2.5mm
Upper Plate Thickness: 1.5mm
Side Plate Thickness: 1.5mm
Standoff Height: 20mm
Weight: 16g
Recommend Parts:
Flight Controller: 20x20mm Mini F3 / F4 Flight Controller
Brushless Motor: 11XX Series Motor
Brushless ESC: 10-100A ESC
Propeller: 2 Inch Propeller
Camera: RunCam Micro / FOXEER Micro / CADDX.US MICRO series
Lipo Battery: 2-6S 200-800mAh Lipo Battery
The Following Parts are Suitable: ( Not Included )
FC & ESC: 20x20mm Flytower Kingkong Omnibus F4 FC & 20A BL_S ESC
Motor: HGLRC HF1106 6000KV 2-3S Brushless Motor
Propeller: Gemfan Hulkie 2040 2 Inch 3-Blde Propeller CW & CCW
Camera: Runcam Micro Swift 2 600TVL OSD CCD FPV Camera
Lipo Battery: ZOP Power 11.1V 500mAh 45C 3S Lipo Battery XT60 Plug
Notice: Only package include the empty frame kit
The anti-viration pad is on the bottom of whiole frame
Pacakage Included:
1x ALFA Faclon 120 2 Inch Frame Kit
