Description

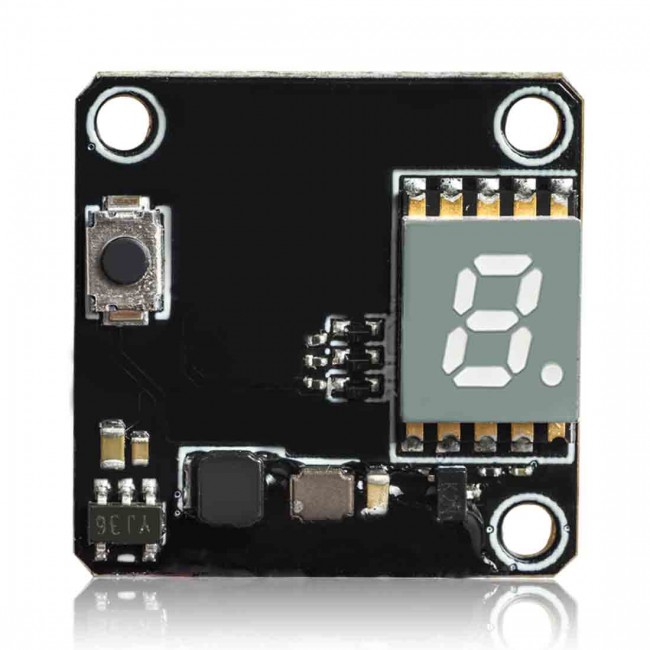

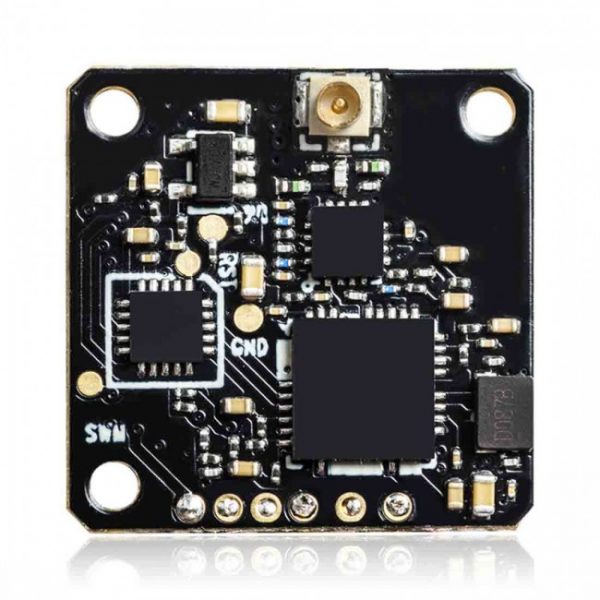

AKK X5 25mW/50mW/100mW/200mW 5.8GHz 37CH AV FPV Transmitter VTX with Smart Audio PIT Mode 16*16mm
AKK X5 is among the smallest vtx with smart audio function on the market now, and AKK Nano 2 has a smaller profile, exceptional good tidings for those mini quad players.
Features
Support 0.01mW PIT-Mode
25mW, 50mW, 100mW and 200mW power switchable
One button frequency and power setup
OSD configuration using Smart audio (F3/F4/F7 with OSD)
5V input with 5V output

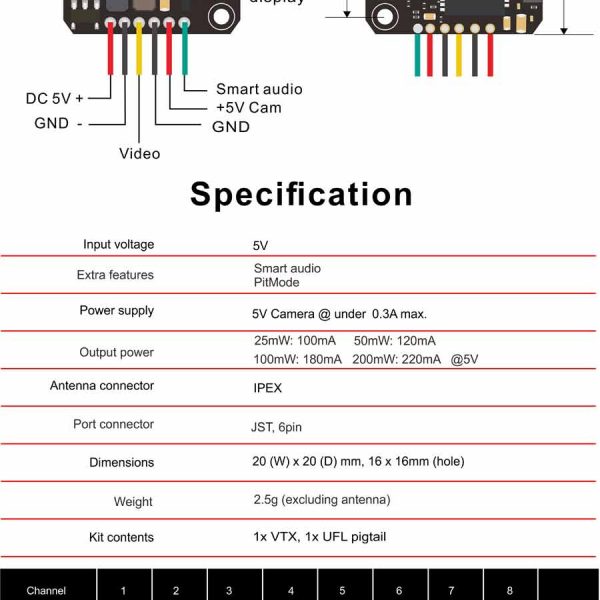

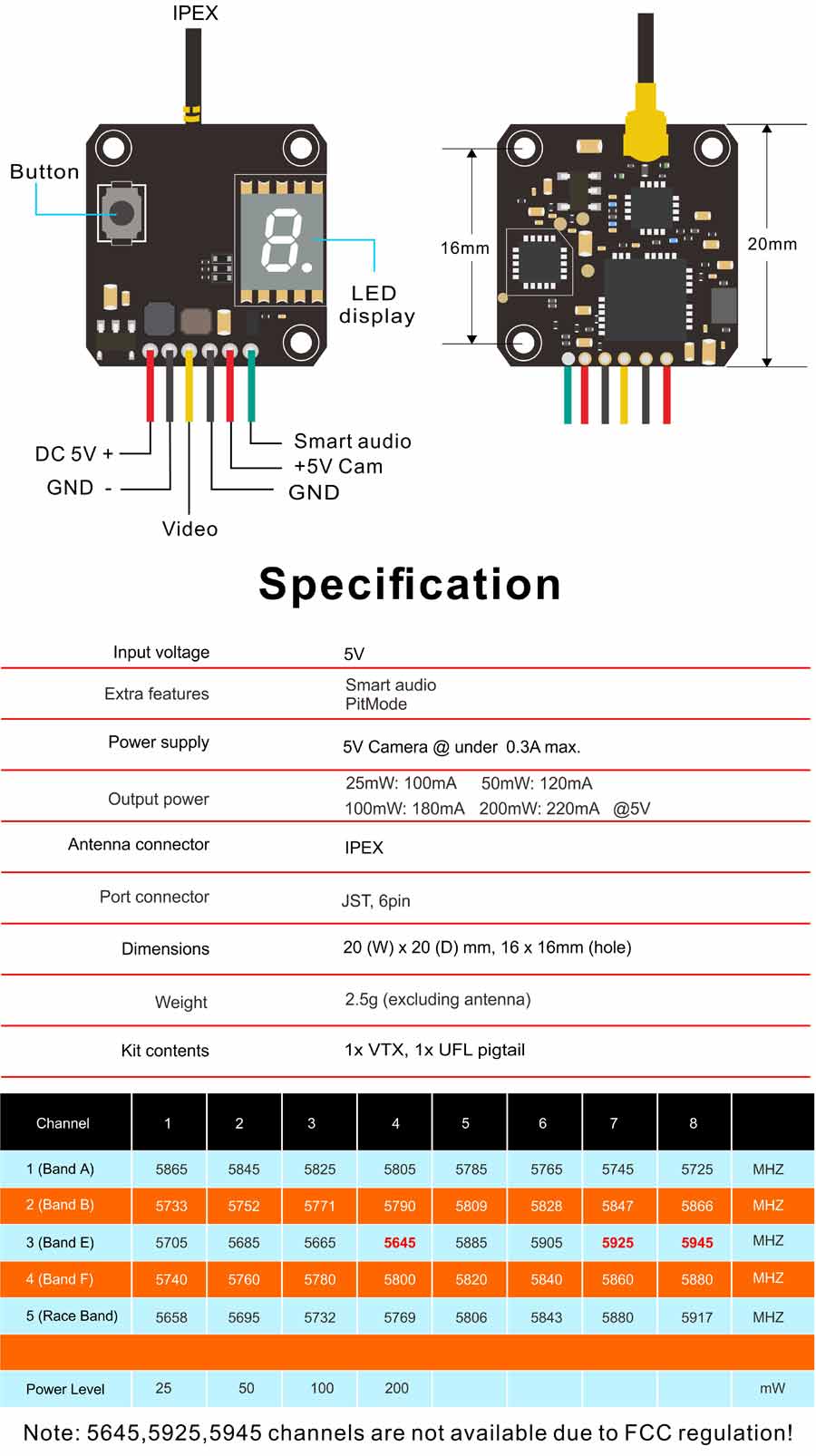

Specification
Input Voltage : 5V
Extra Features : Smart audio/ Smart audio
Power Supply : 5V Camera @ under 0.3mA max.
Output Power : 25mW@100mA/50mW@120mA/100mW@180mA/200mW@220mA
Antenna Connector : IPEX
Cable Connector : JST 6P
Dimension : 20 x 20mm,16 x 16mm(hole)
Weight : 2.5g(excluding antenna)

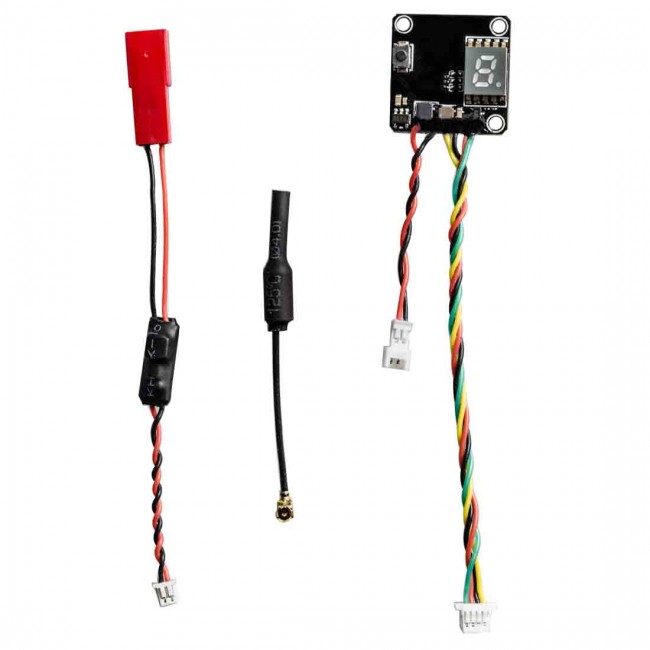

Package Includes:
1 x 5.8Ghz 25mW/50mW/100mW/200mW Switchable FPV Transmitter
1 x Antenna and cable set
1 x Product manual
