Description
Specification:
Input voltage: 5v
Video format: NTSC/PAL
Power supply: 5v to camera@under 300mA
Output power: 25mW:260mA/100mW:380mA/200mW:480mA
Antenna connector: IPEX
Port connector: 6pin
Dimensions: 20(W)x20(D)mm,16x16mm(hole)
Weight: 2g(excluding antenna)
Functions:
-AKK FX5 has 3 LED, LED 1 for CH, LED 2 for BAND, LED 3 for POWER.
The VTX has built-in OSD, it can display parameters on 5.8GHz goggles or monitors
The VTX has built-in OSD, it can display parameters on 5.8GHz goggles or monitors
-B2 stands for BAND B, Channel 2
5752 stands for frequency 5752
500 stands for power 500mW
10.42V stands for input voltage 10.42V
00:00:33 stands for power-on time 33seconds
Features:
25mW, 100mW and 200mW power switchable
One button frequency and power setup
Built in OSD
Super light weight
Package included:

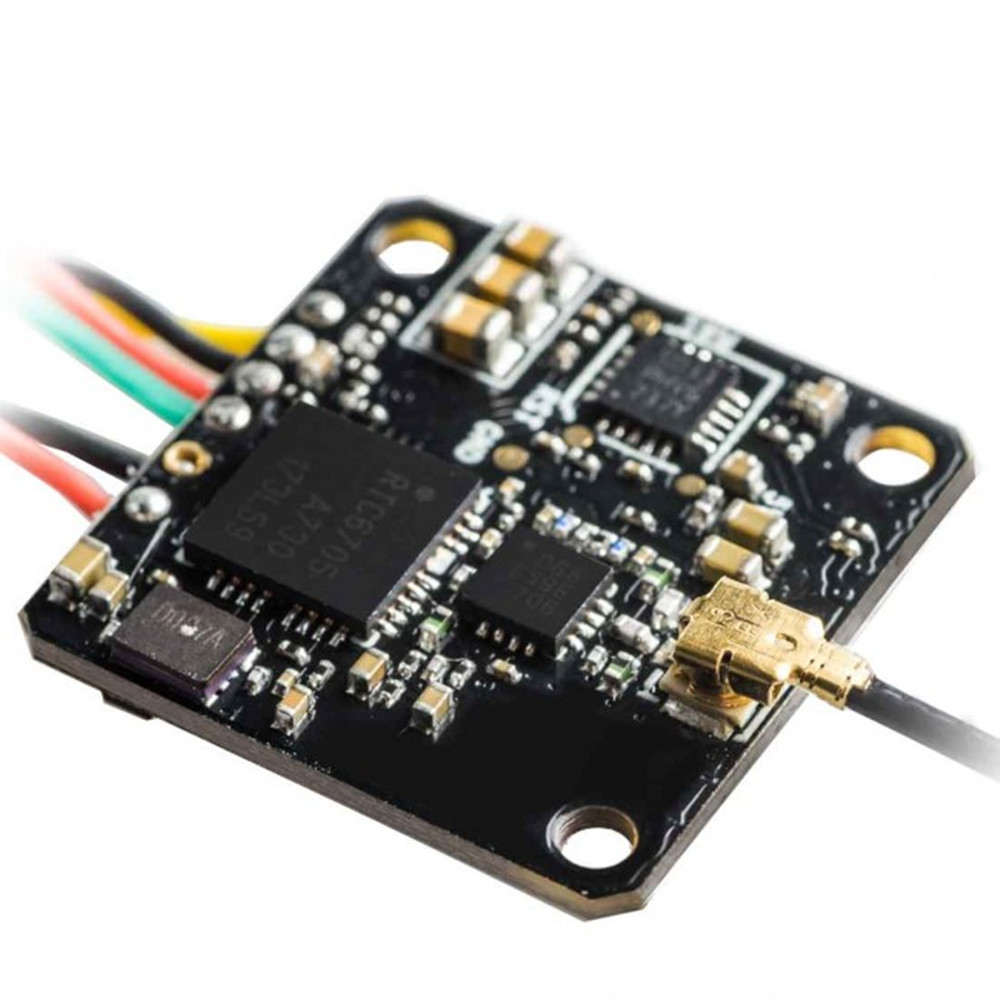

1 x AKK FX5 5.8Ghz 40CH 25/100/200mW Switchable FPV Transmitter Built-in OSD for RC Drone
