Description
Specification:
Output power: 25mW/200mW/500mW
Input voltage: 7v-24v
Operating current: 100mA-150mA(25mW)14dBM
200mA-260mA(200mW)23dBM
300mA-360mA(500mW)27dBM
Operating current: 100mA-150mA(25mW)14dBM
200mA-260mA(200mW)23dBM
300mA-360mA(500mW)27dBM
Video format: NTSC/PAL
Output voltage: 5v to camera@under 300mA
Antenna connector: MMCX
Port connector: JST,5pin
Size: 26*26mm(L*W) 20*20mm(Hole)
Weight: 4.6g
Output voltage: 5v to camera@under 300mA
Antenna connector: MMCX
Port connector: JST,5pin
Size: 26*26mm(L*W) 20*20mm(Hole)
Weight: 4.6g
Functions:
-AKK FX4 has 3 LED, LED 1 for CH, LED 2 for BAND, LED 3 for POWER.
The VTX has built-in OSD, it can display parameters on 5.8GHz goggles or monitors
The VTX has built-in OSD, it can display parameters on 5.8GHz goggles or monitors
-B2 stands for BAND B, Channel 2
5752 stands for frequency 5752
500 stands for power 500mW
10.42V stands for input voltage 10.42V
00:00:33 stands for power-on time 33seconds

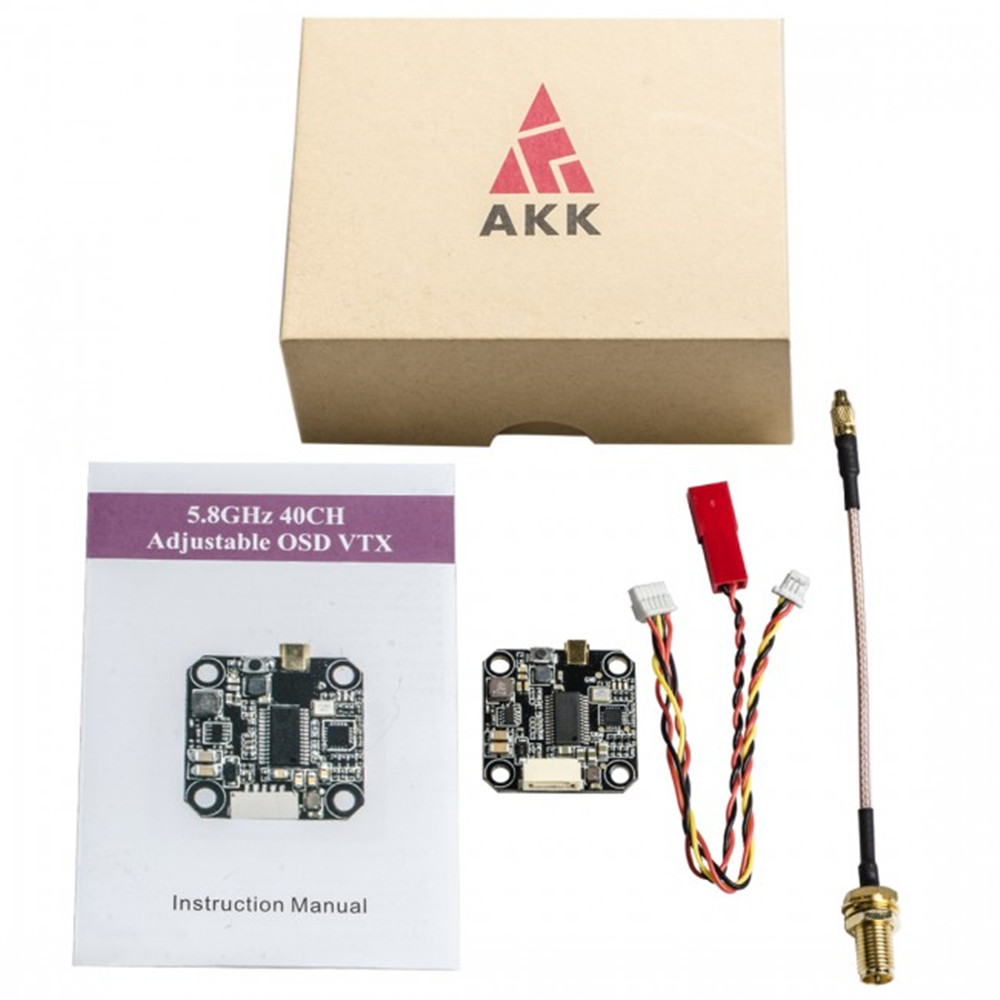

Package included:
AKK FX4 5.8GHz 40CH 25/200/500mW Switchable FPV Transmitter Built-in OSD
