Description
Specification:
Input voltage: 7-24V
Extra feature: Smart Audio/MMCX+UFL connector,MIC
Power supply: 5v camera@under 0.3A max
Output power: 25mW:100mA/200mW:200mA/400mW:250mA/600mW:320mA@12v
Range: Up to 2km with omnidirectional RHCP antenna
Antenna connector: MMCX/UFL
Port connector: Solder Pads
Dimensions: 26(W)x26(D)mm,20x20mm(hole)
Weight: 5.4g(excluding antenna)
Features:
Support Pit Mode
25mW, 200mW, 400mW and 600mW power switchable
One button frequency and power setup
OSD configuration using Smart audio
7-24V input with 5V output
MMCX+UFL connector
MIC

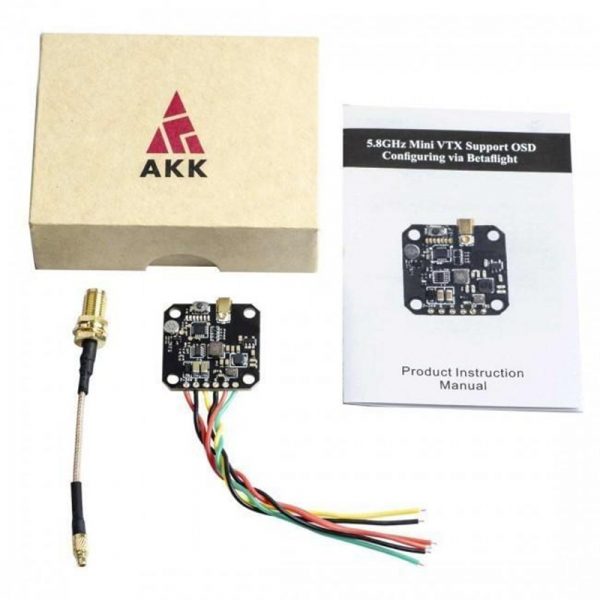

Package included:
1 x AKK FX3-ultimat 5.8G 40CH 25/200/400/600mW Switchable FPV Transmitter
1 x Cable
1 x MMCX pigtail
