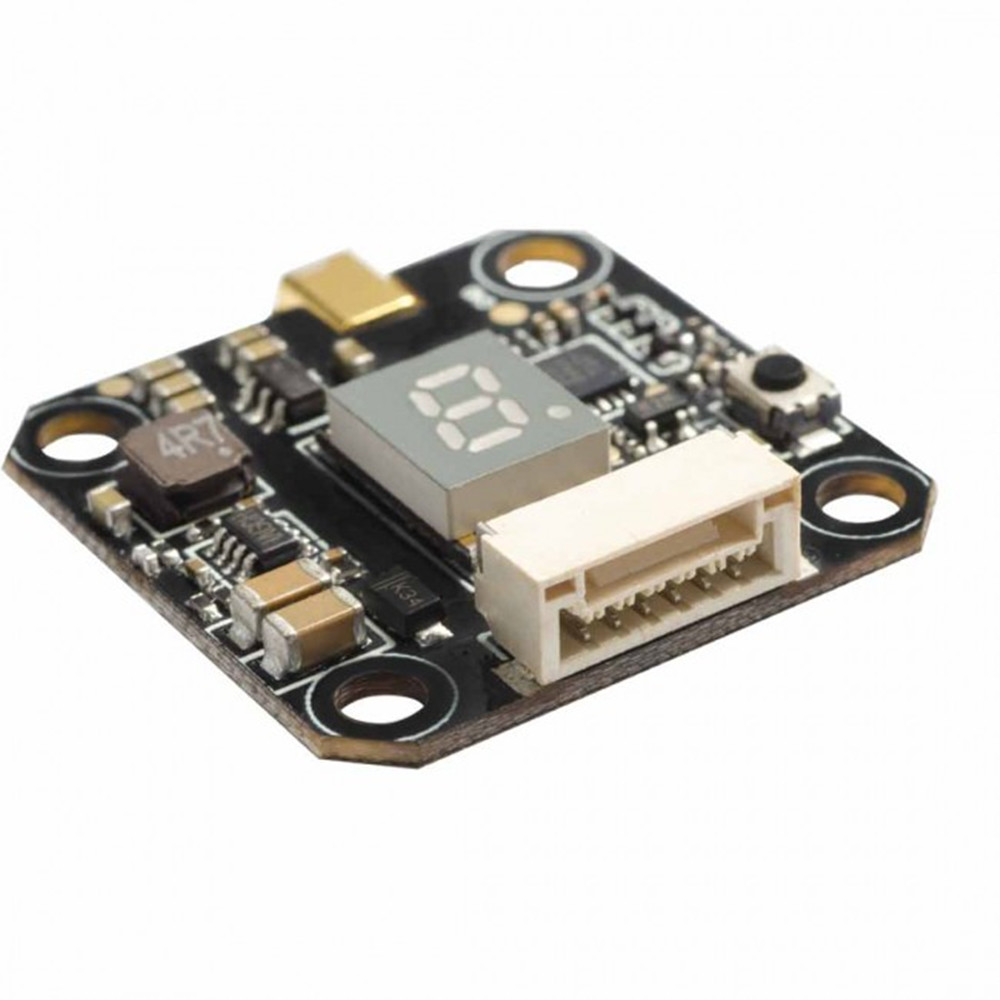

Description
FX3 is similar to the FX2 but has a smaller profile that uses 20x20mm mounting pattern,
in the cost of lower max output power, to be designed for smaller micro builds.
in the cost of lower max output power, to be designed for smaller micro builds.
Specification:
Input voltage: 7-24V
Extra feature: Smart Audio/PIT Mode
Power supply: 5v camera@under 0.3A max
Output power: 25mW:100mA/200mW:200mA/400mW:250mA/600mW:320mA@12v
Range: Up to 2km with omnidirectional RHCP antenna
Antenna connector: MMCX
Port connector: JST,6pin
Dimensions: 26(W)x26(D)mm,20x20mm(hole)
Weight: 4.6g(excluding antenna)
Range: Up to 2km with omnidirectional RHCP antenna
Antenna connector: MMCX
Port connector: JST,6pin
Dimensions: 26(W)x26(D)mm,20x20mm(hole)
Weight: 4.6g(excluding antenna)
Features:
Support Pit Mode
25mW/200mW/400mW/600mW switchable
One button frequency and power setup
OSD configuration using smart audio
7-24v input with 5v output
1 x AKK FX3 5.8Ghz 37CH 25/200/400/600mW Switchable FPV Transmitter VTX with MMCX Integrated OSD FC
1 x Cable
1 x MMCX pigtail
Package included:
1 x AKK FX3 5.8Ghz 37CH 25/200/400/600mW Switchable FPV Transmitter VTX with MMCX Integrated OSD FC
1 x Cable
1 x MMCX pigtail
