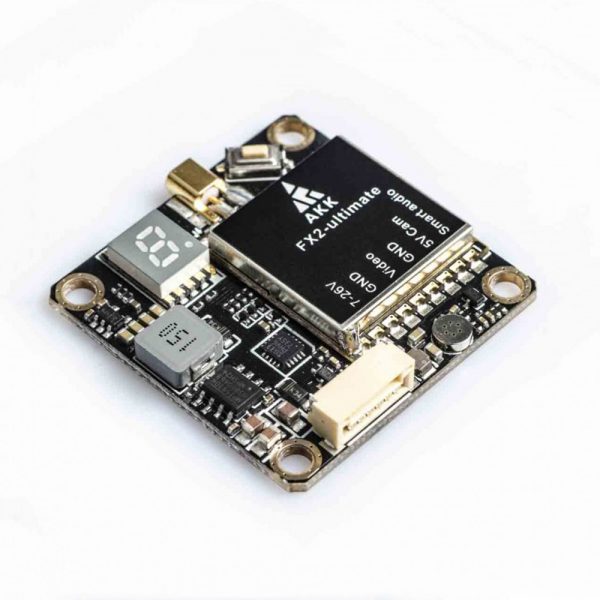

AKK FX2 Ultimate International Version 5.8GHz 40CH 25mW/200mW/600mW/1000mW Switchable FPV Transmitter
Description:
Brand name: AKK
Item name: FX2 Ultimate International Version
Input voltage: 7V to 26V
Extra features: Smart audio 1000mW
Power supply: 5V camera @ under 500mA max.
Output power: 25/200/600mW/1000mW

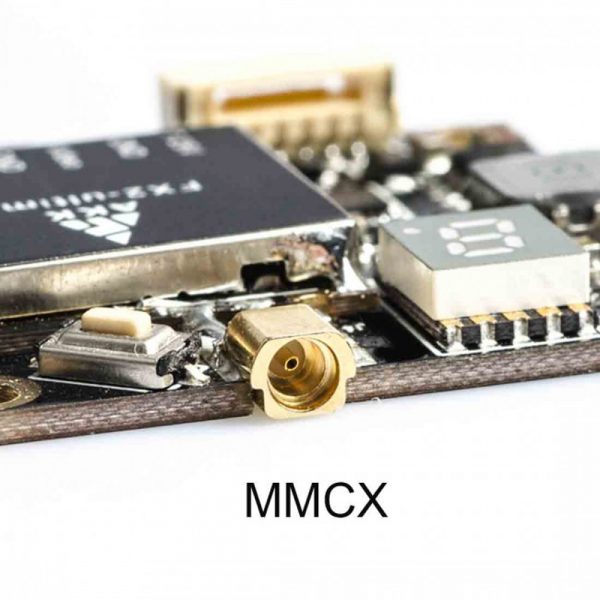

Antenna connector: MMCX

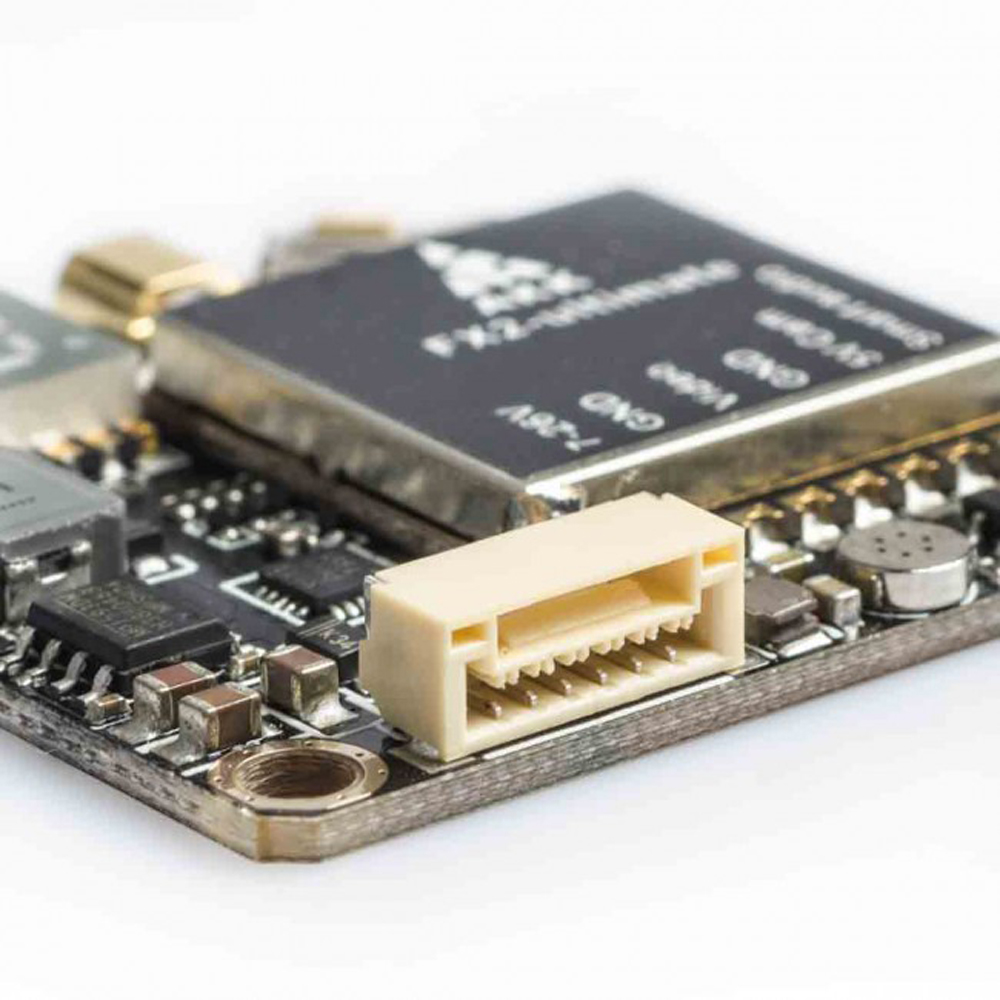

Cable connector: JST, 6pin
Dimension: 36x36mm, 30.5×30.5mm hole
Weight: 9.6g (excluding antenna)
Features:
* Support Smart audio
* 25/200/600/1000mW power switchable
* One button frequency and power setup
* OSD configuration using smart audio
* 7-26V input with 5V output for camera
* With MIC
Notice: 5645/5925/5945 (E4/E7/E8) are not available due to FCC regulation. Selecting 5645/5925/5945 (E4/E7/E8) will be invalid action.
Note: 37 channels are all above 5650 and below 5925MHz, which are legal to use in the USA with an amateur radio license.
Note: 37 channels are all above 5650 and below 5925MHz, which are legal to use in the USA with an amateur radio license.
This equipment is being sold under FCC’s amateur radio rules.
Operators must require amateur radio license to operator legally in
the US. Use of amateur equipment without a license or use of
equipment on restricted frequencies could subject the operator to
significant fines by the FCC.By purchasing this equipment, the user is
agreeing that they understand these responsibilities and will operate
the equipment legally. More information related to ARL, please go to
http://www.arrl.org/getting-licensed.
Pacakge Included:
1x VTX
1x cable
