Description

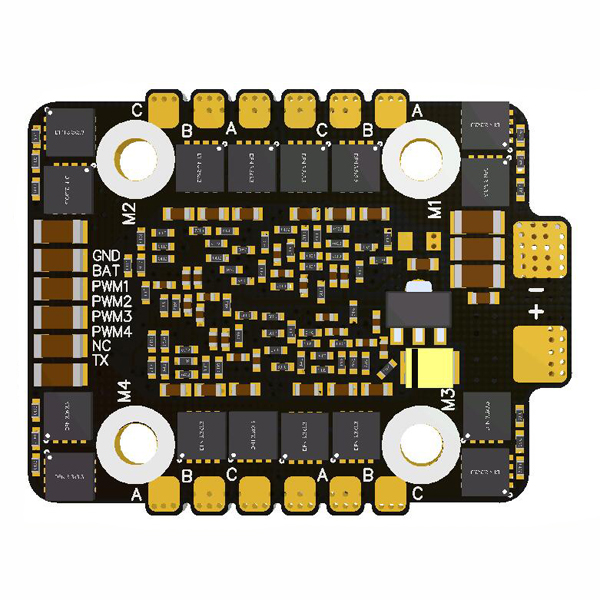

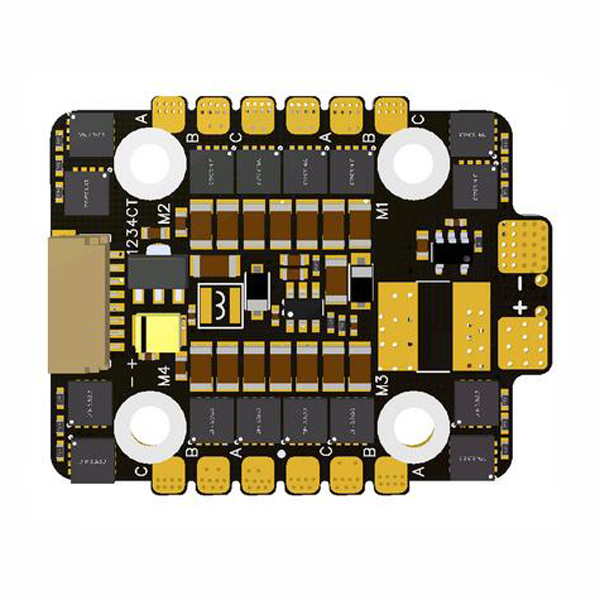

AIKON AK32PIN 4 IN 1 25A 2-6S Blheli_32 DSHOT1200 Brushless ESC 20x20mm for RC Drone FPV Racing
Specification:
Brand name: AIKON
Item name: AK32PIN 4 IN 1 25A 2-6S Blheli_32 Brushless ESC
Battery: 2-6S
Constant Current: 25A
Burst Current: 35A
Firmware: Blheli_32
MCU: STM32PIN F0
Bootloader: Yes
Signal wire length: 100mm
Battery wire length: 150mm
Weight( with/wire): 15g
Hole hole: 20x20mm
Feature:
– BLHeli_32 code base
– Programmable PWM frequency of up to 48KHz
– Auto-timing for higher efficiency and reliability
– Analog Voltage/Current sensing
– Adjustable “Brake on Stop” force
– Improve direction change in Bidirectional mode
– One current sensor to meaure the total apm draw.
– ESC Telemetry (Voltage and RPMs and current)
– Configuring from FC using DShot commands
– Programmable sine modulation mode
– Programmable soft bidirectional mode
– Programmable autonomous periodic (every 32ms) telemetry mode
– Hardware noise filter on the signal input
Package Included:
1 x AK32PIN 4 IN 1 25A 2-6S Blheli_32 Brushless ESC
