Description

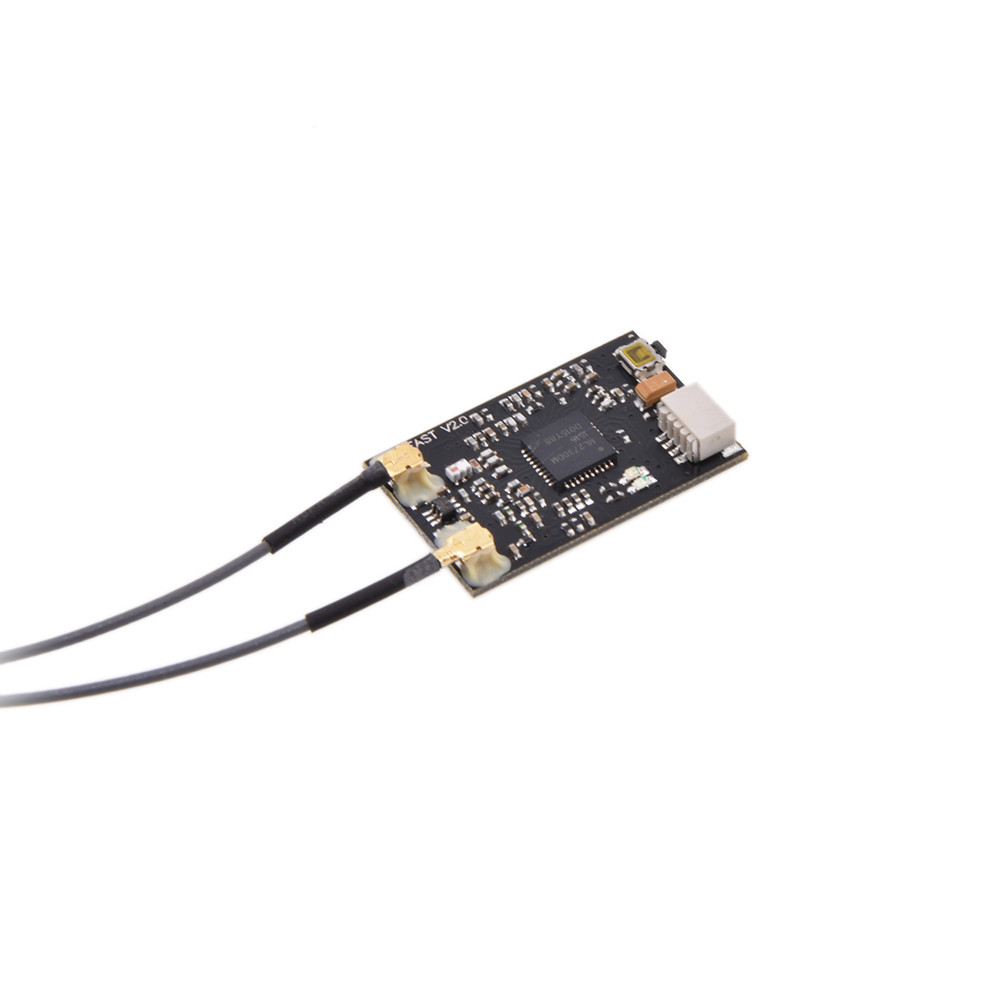

AGFRC MRFS01 2.4G FASST Mini Receiver Compatible SBUS RSSI Output for Mini RC Drone FPV Racing
Specification:
Brand name: AGFRC
Item name: MRFS01 receiver
Operating Voltage: 4.8V~8.4V
Dimension: 28x18x5mm (exclude antenna)
Weight: 3.8g
Antenna: Dual-antenna
Output Channels:S-BUS(16CH) + RSSI(PWM)
Compatible Futaba FASST remote control system
Suitable for Futaba 6EX, 7C, TM-7, TM-8, T8FG, T10C, TM-10, T10CG, T12Z, T12FG, TM-14, T14MZ, T18MZ etc FASST remote control
Feature:
1) High quality PA to ensure high receiving sensitivity;
2) Dual-antenna design, available to mount in different angle to increase the reception reliability;
3) Serial signal S-BUS (16CH) output, connect directly to flight control system, especially for mini multirotor and aircraft to save mounting space;
4) RSSI(PWM) output, available to detect the signal changes of the radio control via receiver.
Bind Procedure:
1. Get the transmitter and the receiver ready;
2. Turn on the transmitter;
3. Press the SW on the receiver and power on, the LED in the receiver changes to solid green while complete, the receiver start to work;
It could be failed binding as for the environment, please repeat the above steps.
LED Status:
| GREEN LED | RED LED | Status |
| Solid | Solid | Ready to bind |
| Solid | Off | Receiving signals |
| Solid | Blink | Signal loss |
Package included:
1x MRFS01 receiver
