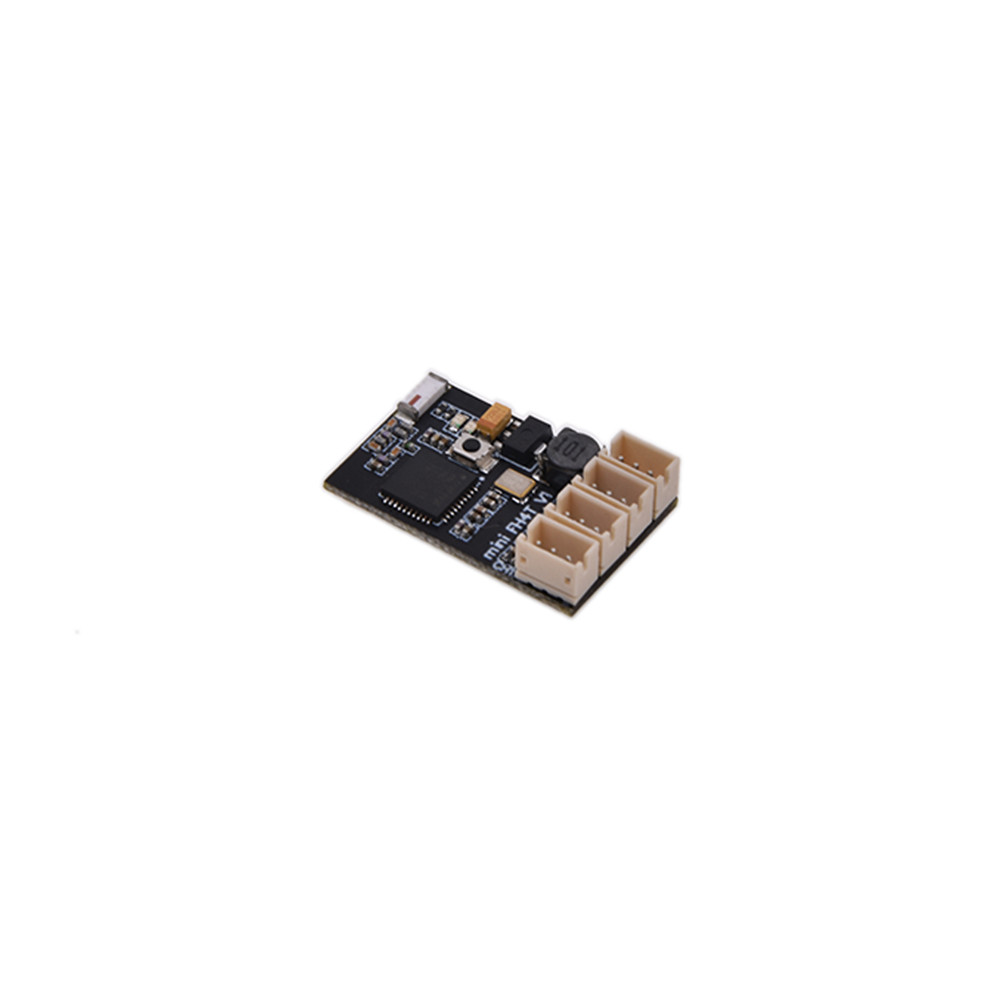

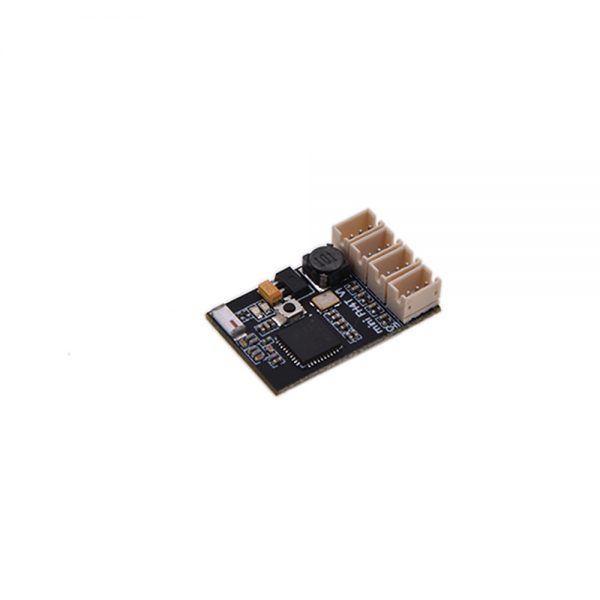

AGFRC ARX-472S 2.4GHz 4CH FH-3/ FH-4T Compatible Receiver for RC mini-Z/GLA Mini Car

Description

AGFRC ARX-472S 2.4GHz 4CH FH-3/ FH-4T Compatible Receiver for RC mini-Z/GLA Mini Car

Specification:
Brand name: AGFRC
Item name: ARX-472S receiver
Operating Voltage: 3.3V~8.4V
Dimension: 26×16.5×7.5mm
Weight: 3.5g
No. Of Channels: 4CH
PWM Mode: Normal/ SHR/ SSR

Compatibility:
Compatible with FH3/FH4T remote control system.
Suitable for remote control M12, M11X, EXZES X, MT-4,GEMINI X,MT-S, MT-4S, M12S ,M17.

Features:
1)  Professional onboard patch antenna an high quality PA to ensure high receiving sensitivity in microsize;
2) Bidirectional communication system, monitor the receiver voltage by transmitter in real time;
3) Compatible stabilizing voltage, operating voltage can up to 1-2s lipo, sudden low voltage won't be out of control;
4)  Light weight, micro size, full 4CH output, especially for Mini-Z or mini aircraft.

Bind Procedure:
1) Turn on the transmitter, get to the SYSTEM menu and select BIND;
2) Connect battery to the receiver while pressing receiver's F/S button SET, the LED on the receiver will flash slowly. Press and hold the F/S button for 2 seconds then release, the LED on the receiver will keep flashing slowly;
3) Select BIND menu in the transmitter and press ENTER while the LED on the receiver is flashing slowly. The LED will be off immediately.
4) Press ENTER again on the transmitter, the LED will be solid, indicating binding process is successful;
5) Please repeat the above procedure if binding is failed.

LED Status:

Package included:
1x ARX-472S receiver
