SN 10CH Receiver Signal Converter Module PWM/PPM/SBUS/ for FPV RC Racing Drone
Features:
* This module uses 32-bit single-chip microcomputer to complete signal acquisition, processing and conversion. The stability and speed are far superior to ordinary 8-bit single-chip microcomputer.
* The input signal is completely recognized automatically, no need to switch manually, the status indication is simple and clear.
* 5V power supply, support 8 channel output, plug and play.
Compatible:
* PWM signal (ordinary receiver signal)
* PPM signal (CPPM)
* SBUS signal (including FUTABA-R7008SB series, etc., FrSky, etc.)
Functions:
* Input PWM signal, output PPM and SBUS signals simultaneously.
* Input PPM signal, output PWM and SBUS signals simultaneously.
* Input SBUS signal, output PWM and PPM signals simultaneously.

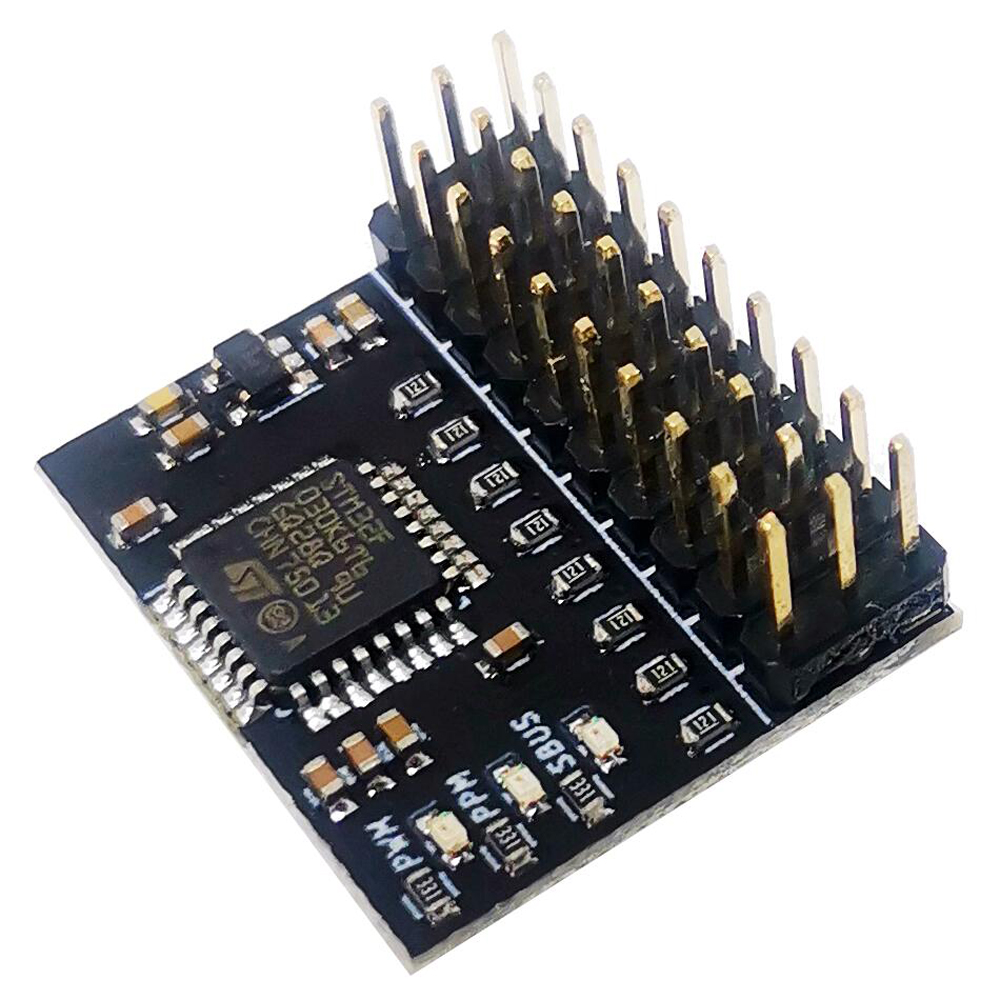

Indicator light:
* When no signal is input, all three indicators are off.
* The input signal indicator is always on, and the output signal indicator flashing.
* For example, when the PPM signal is input, the PPM corresponding indicator is always on, and the PWM and SBUS signal indicators are flashing.

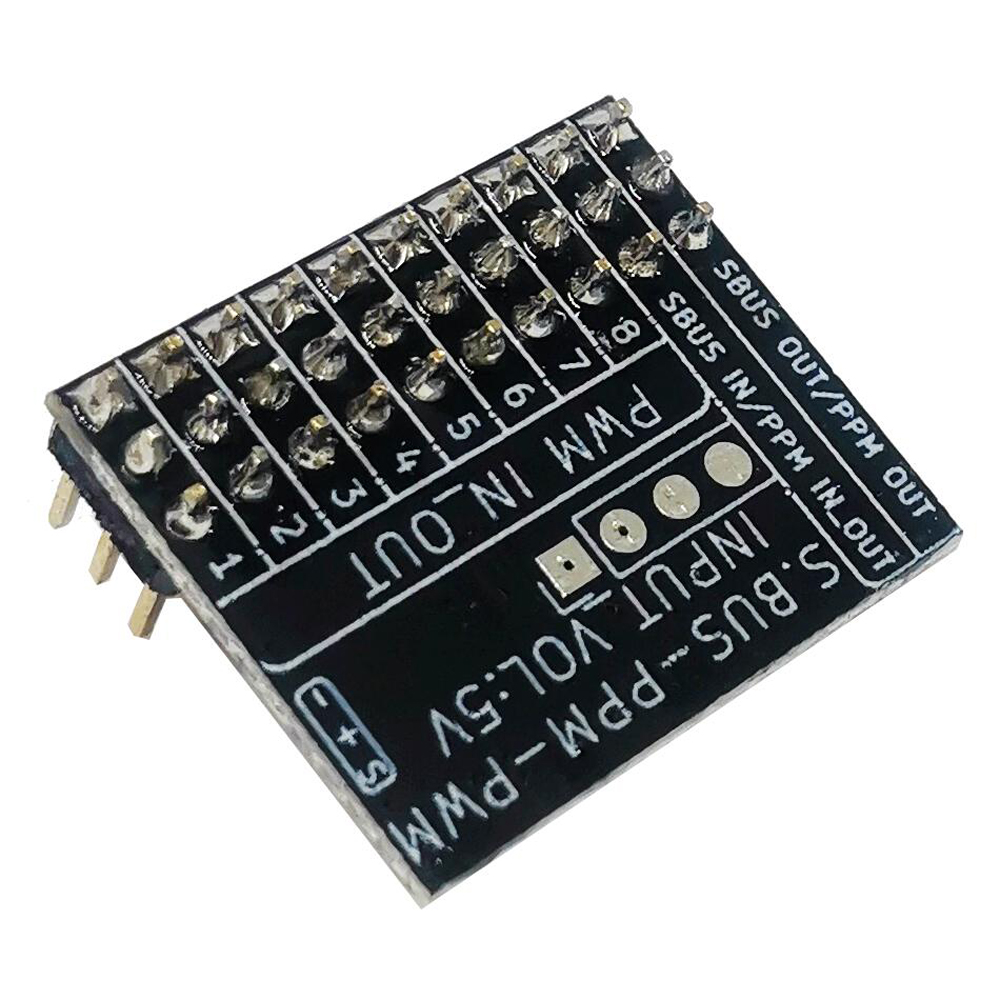

Channel description:
* 1-8 channels are PWM signal input or output channels.
* 9 channels are SBUS signal input channel or PPM signal input and output channel.
* 10 channels are PPM or SBUS signal output channels.
Wiring instructions:
* When any one or more channels of 1-8 channels input PWM signal, corresponding 9 channels output PPM signal, 10 channel output SBUS signal
* When 9 channels input PPM signal, corresponding 1-8 channel output PWM signal, 10 channel output SBUS signal
* When 9 channels input SBUS signal, corresponding 1-8 channel output PWM signal, 10 channel output PPM signal
Pacakge Included:
1x SN 10CH Receiver Signal Conversion Module
