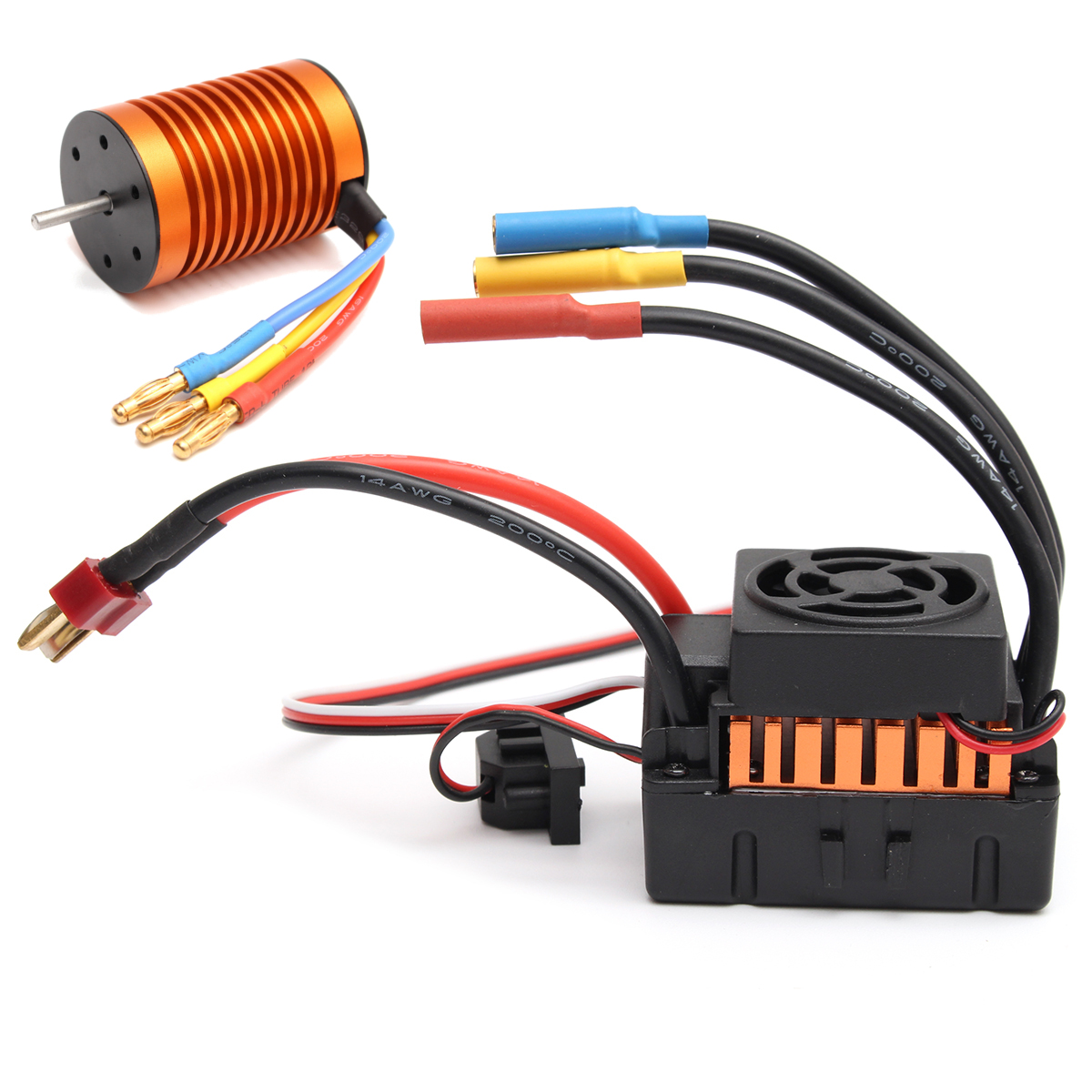

9T 4370KV Brushless Motor + 60A ESC Speed Controller Combo Set For 1/10 RC Car

Description

Features:

1. Compatible with sensorless brushless motor
2. Solid construction and durable, basically meet your need.
3. The strong resistant current capability, excellent heat disipation
4. Suitable for all 1/10 brushless cars-multi-mounting system for M3 screws.
5. Easily programmed and compatible with pocket-sized program card
6. Specially designed for RC car with excellent start-up, acceleration and linearity features
7. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/Over-heat protection/Throttle signal loss protection/Motor blocked protection

How to use:

1.Connect BEC wires with receiver
2.Connect motor wires with ESC
3.Turn on the transmitter
4.Connect battery pack with ESC then switch on the ESC
5.When the connection of motor and battery is finished, the motor emits "Beep-Beep“ tone
6.When the throttle stick is in the neutral position, the motor re-emits“Beep-Beep”tone
7.The ESC is workable

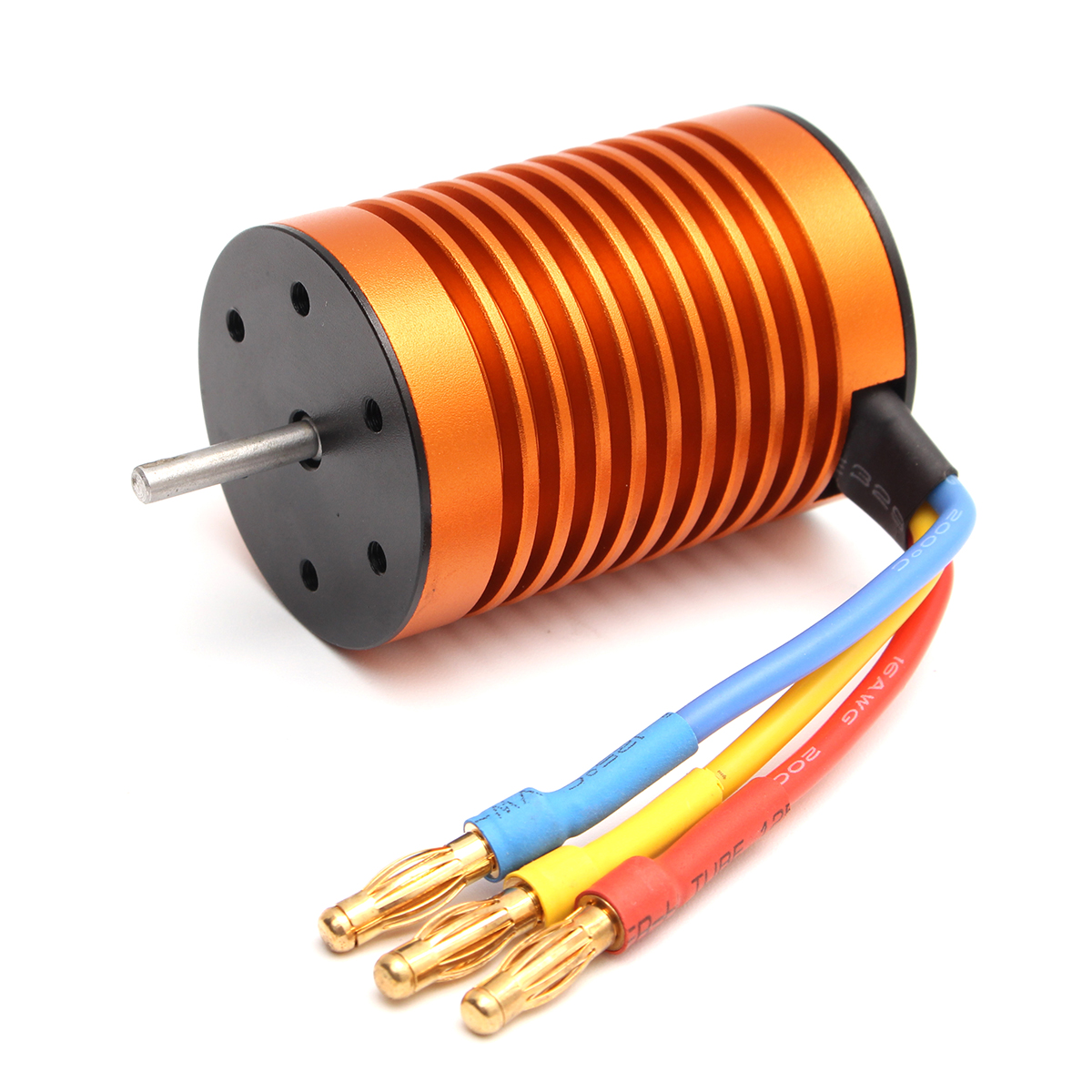

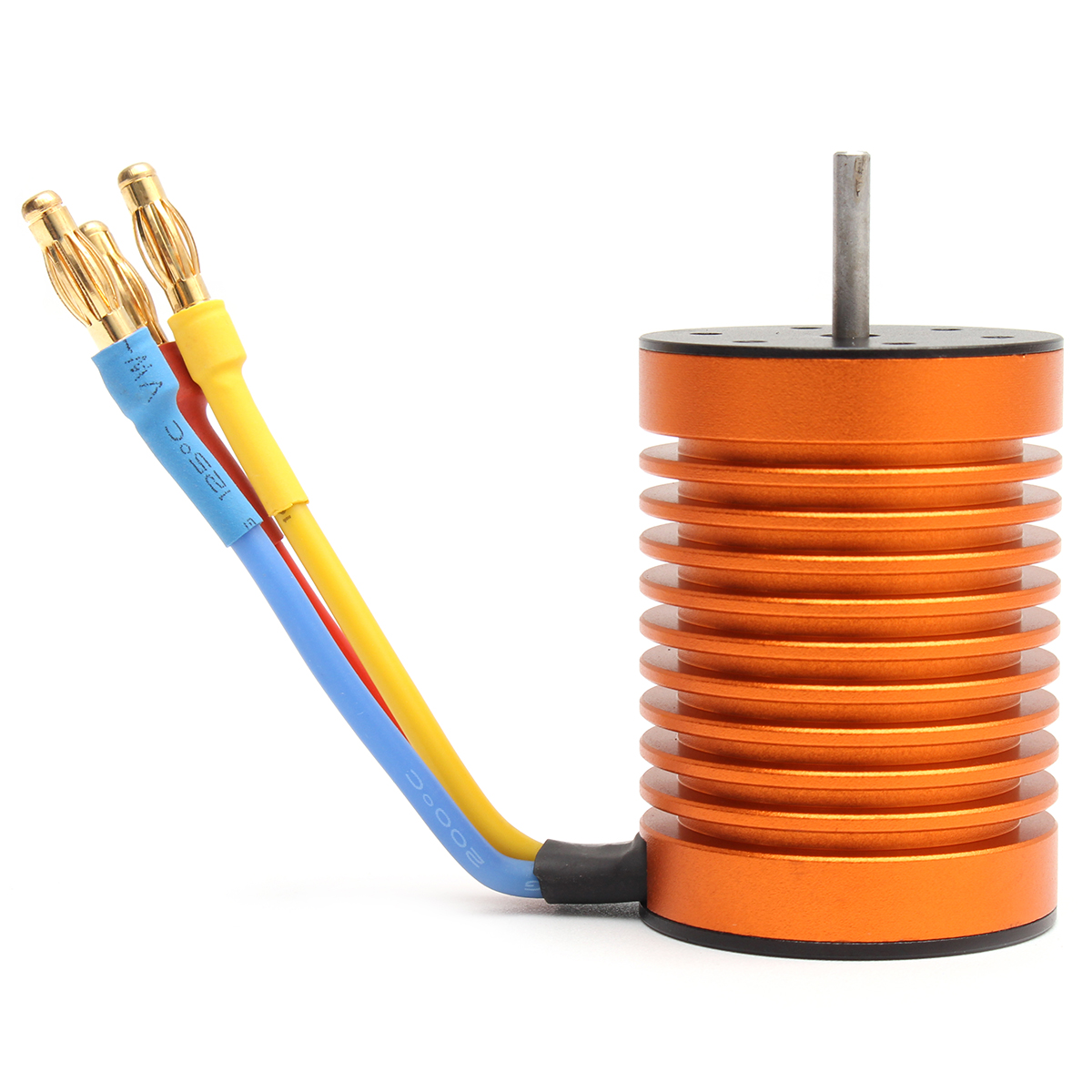

Motor Specifications:

Material: Metal
Color: Gold
Recommend Model: RC Model 1/10 Car
KV(RPM/Volt): 4370KV
Turns of the Motor: 9T
Max RPM: 50000
Watts: 820W
Max voltage: <12V
Input voltage: 7.4-11.1V
Max Amps: 66A
Diameter: 35.8mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug

ESC Specifications:

Material: ABS
Main Color: Black
For Vehicle Type: Car
Operating Current: 60A
BEC Output: 3A/5.5V
Input: 2-3 cells LiPo.
Motor Supported: sensorless,brushless
Connector: 4.0mm Banana Bullet
Size: approx. 50 x 38 x 37mm

Package included:

1x Brushless Motor
1x ESC Speed Controller
1x English Manual
