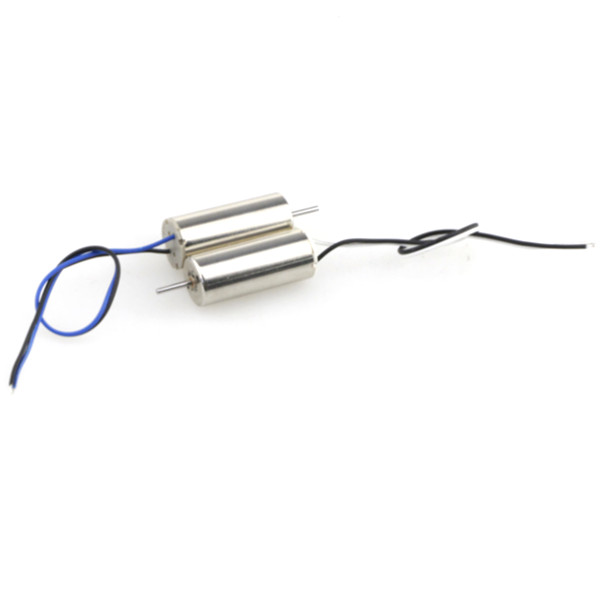

8520 8.5x20MM 28000RPM 2.1V DC Brushed Coreless Motor CW/CCW for DJI TELLO RC Drone
Description:
Motor Diameter: 8.5mm
Motor Length: 20mm
Axial Clearances: 0.05-0.3mm
Weight: about 5.5g
Rated voltage: 2.1V DC
Operating voltage range: 1.5-4.2V DC
Rated speed: 28000±10%RPM
Rated current: 200mA max
Rated Load: 20500±6%RPM
Rated load current: 2.7±0.25A
Starting voltage: 0.8V DC(MAX)
Insulation strength: 5MΩ(MIN)
Direction of rotation: CW and CCW
Motor position: all position
Working Environment: -20℃-
Temperature: 20±2℃
Humidity: (65±5%)RH
Usage: for DJI TELLO RC Drone
Note:
The cable length of DJI TELLO's front and back motor are different. Front Motor Cable is 87mm, Back Motor Cable is 71mm. (Optional)
Option: Clockwise Motor(With Black White), Anti-clockwise Motor(With Black Blue )
Quantity: 1 pcs
Package Included:
1 x Motor
