700TVL CMOS DC5V-12V Mini FPV Camera 2.8mm 3.6mm 90 Degree Wide Angle For FPV RC Drone QAV210 250

$8.23

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

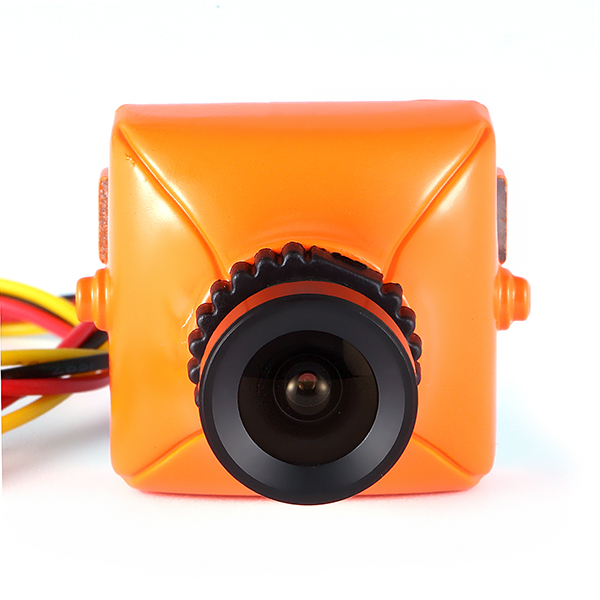

700TVL DC5V-12V Mini FPV Camera 2.8mm 3.6mm Wide Angle For FPV Racer Drone QAV210 250
Description:
Resolution: PAL: 1020H×596V/NTSC: 1020H×508V
Effective Resolution:  PAL: 976H×582V/ NTSC: 976H×494V
Format: PAL/NTSC
Pixel(Horizon): 700TVL
FOV : 90 degree
Output: 1.0Vp-p/75Ω
Auto Gain:  0.25/0.50/0.75/1.00,  4 grades adjustable, up to 55dB
WB: ON/OFF
Exposure:  EE
Shutter:  1/50(1/60) – 1/100000 second
Gamma Correction:  0.45/1.0
Sync System : inter-sync
Lens: Standard 2.8mm, 3.6MM optional
Lens Screw : M12
Voltage : DC12V(Wide Voltage, measured working voltage 7.5V-13V)
Current: 70mA(low power consumption)
Working Temp.:  -20℃–60℃
Wetness: 0%~98%
Size: 25mm*25mm
Weight: 13g


Package Included:
1 x Camera
