Description
Description:
Brand:JX

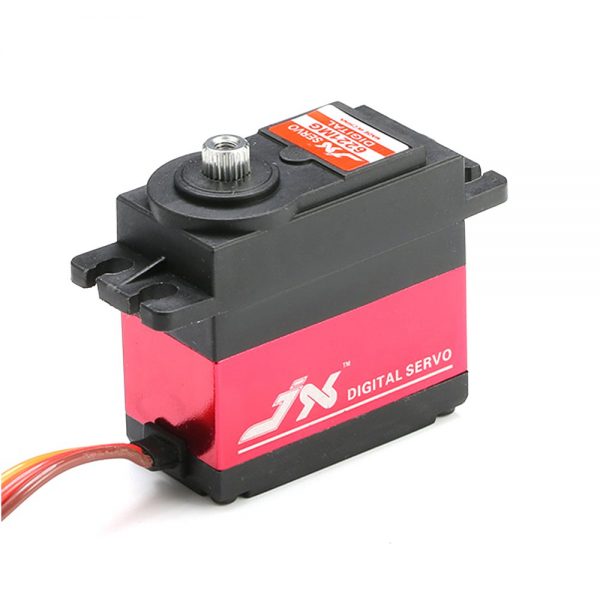

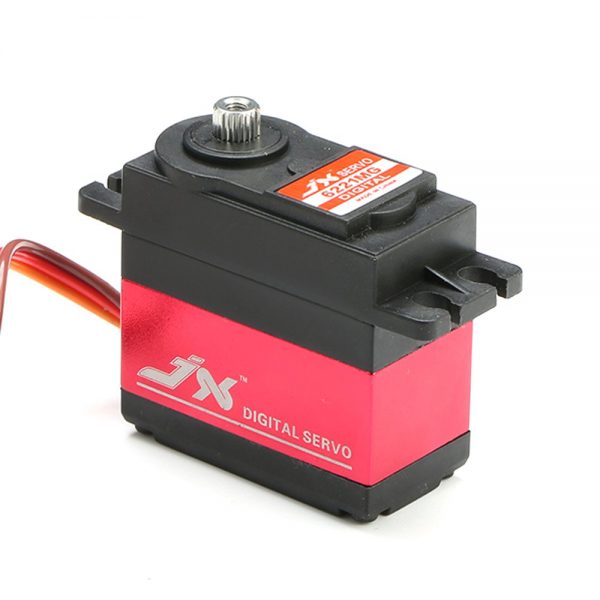

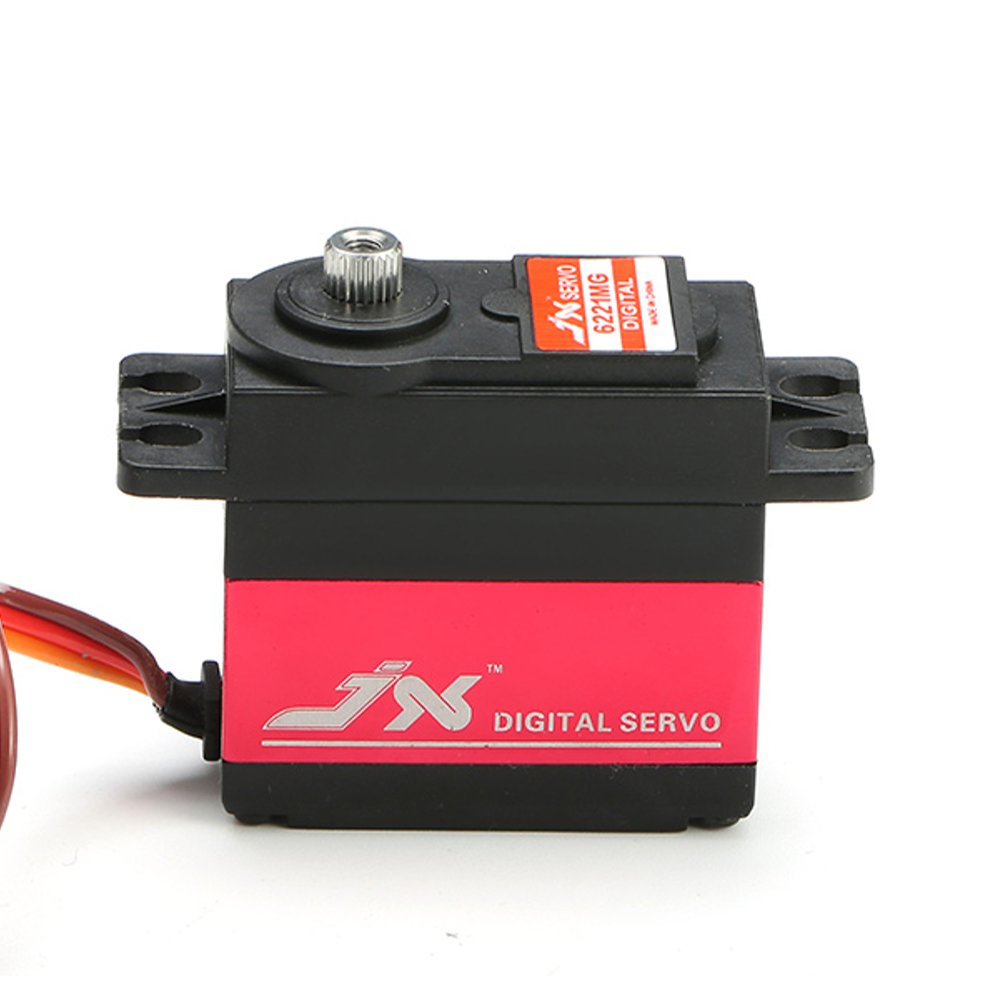

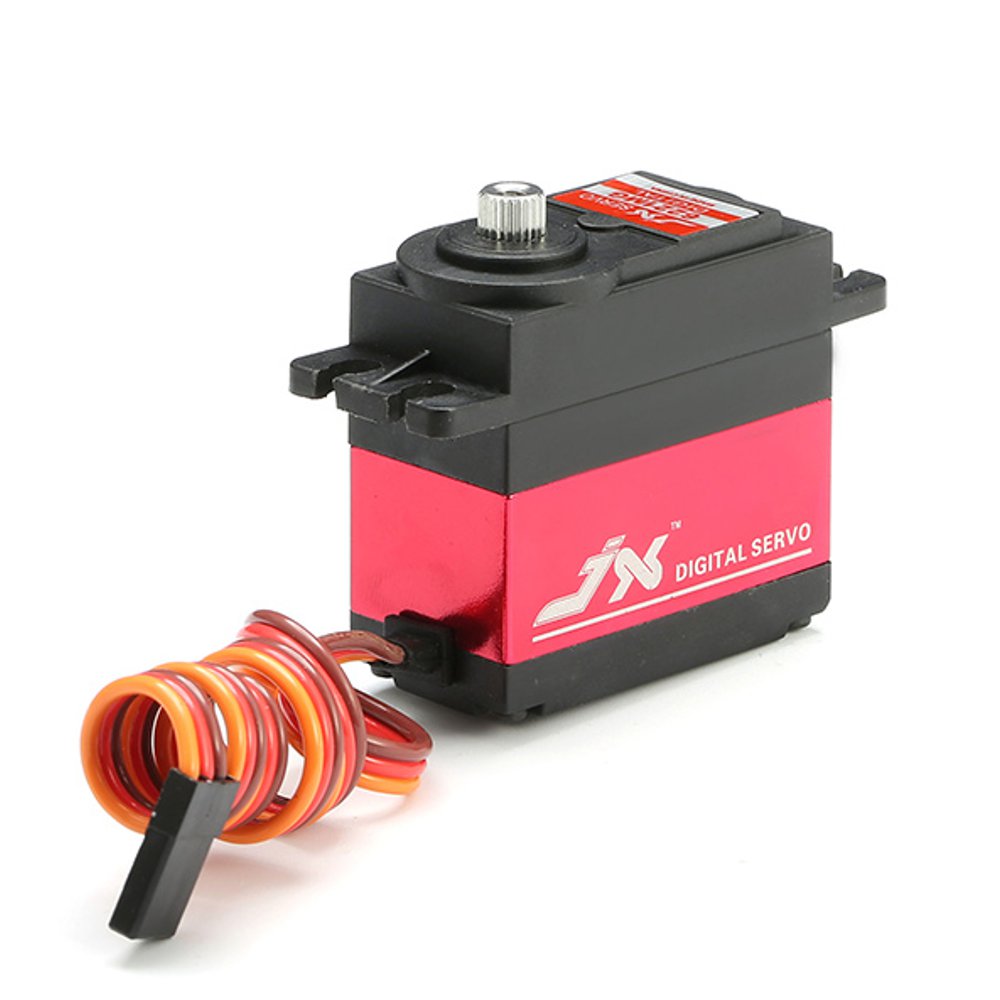

Item: PDI-6221MG 20KG Large Torque Digital Standard Servo
Degree: 180°
Dead band: 2μs
Working frequence: 500μs /2500hz
Angle Range: 172±2°
Operating Speed (4.8V): 0.18 sec/85°
Operating Speed (6V): 0.16 sec/85°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 62 g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Features:
– High performance digital standard servo
– High-precision aluminium gears with hard anodizing
– CNC aluminium middle Shel
– Dual ball bearings

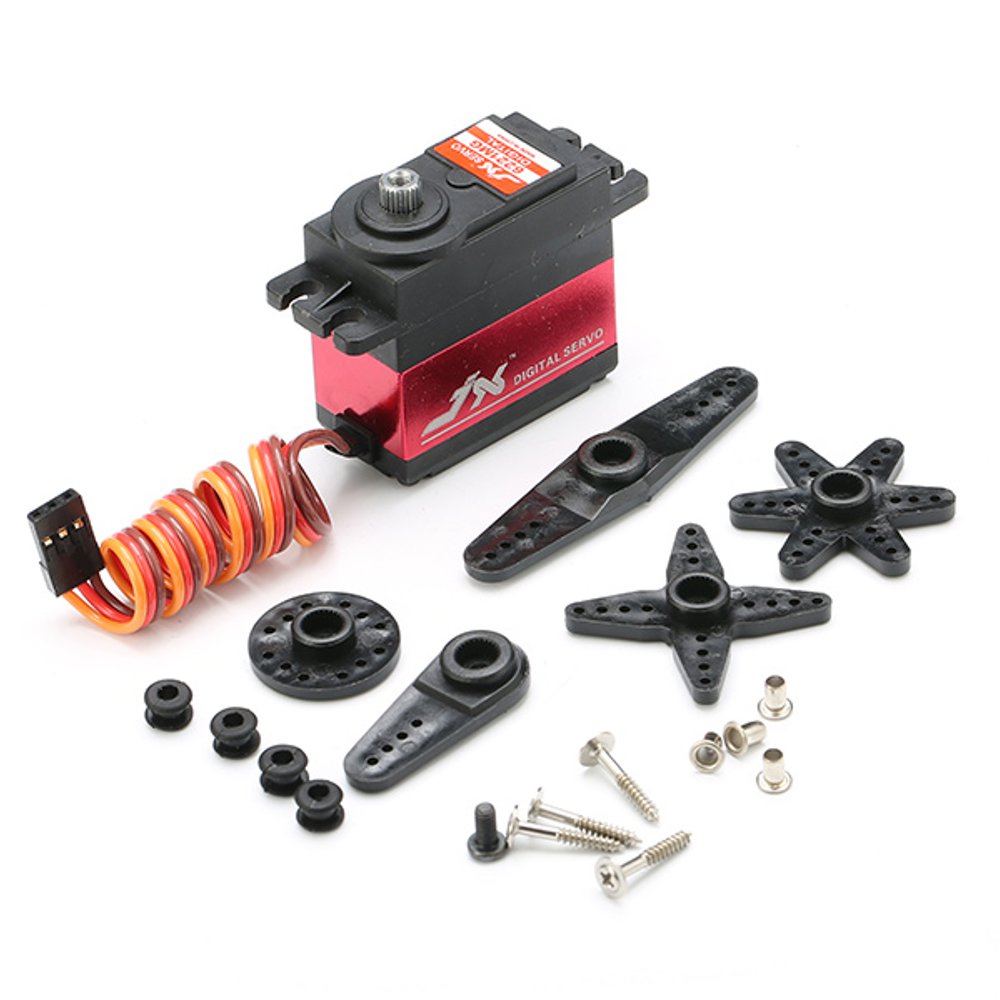

Package Included:
6 x PDI-6221MG 20KG Large Torque Digital Standard Servo 180 Degree
