Description
Description:
Brand Name: JX

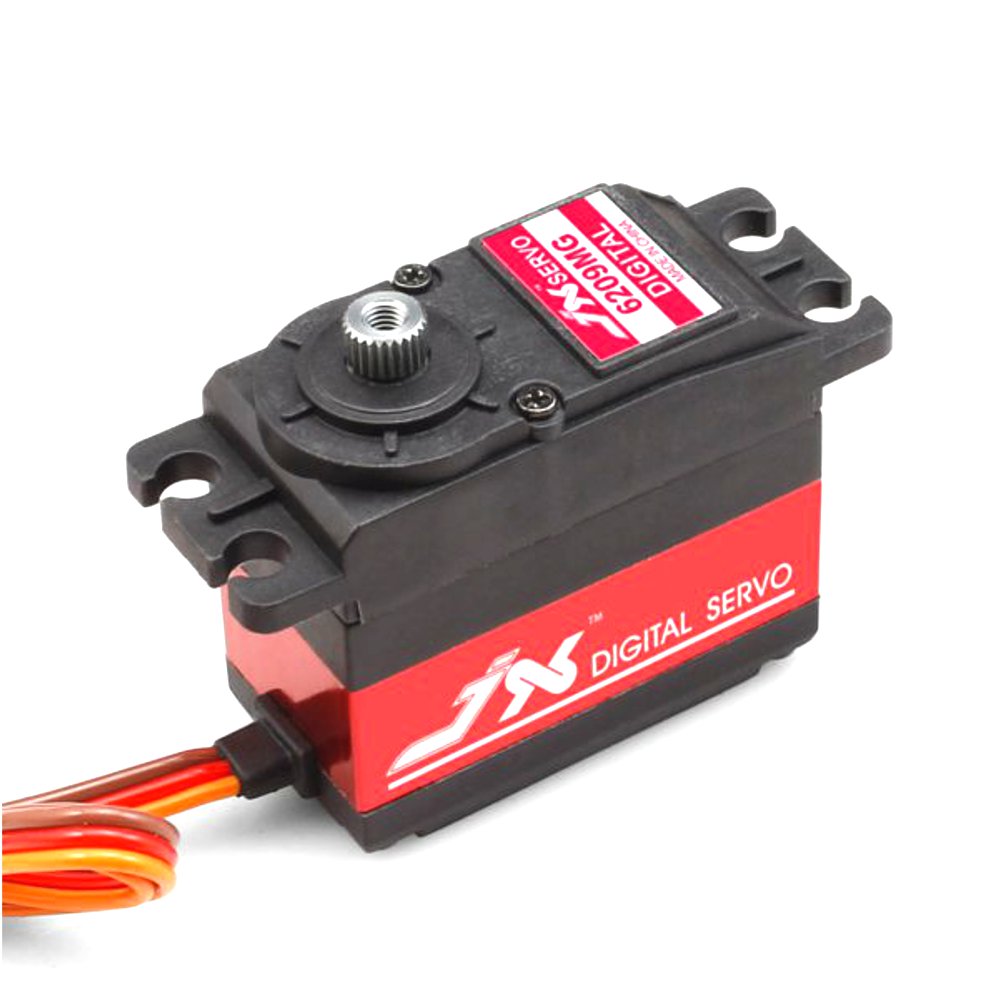

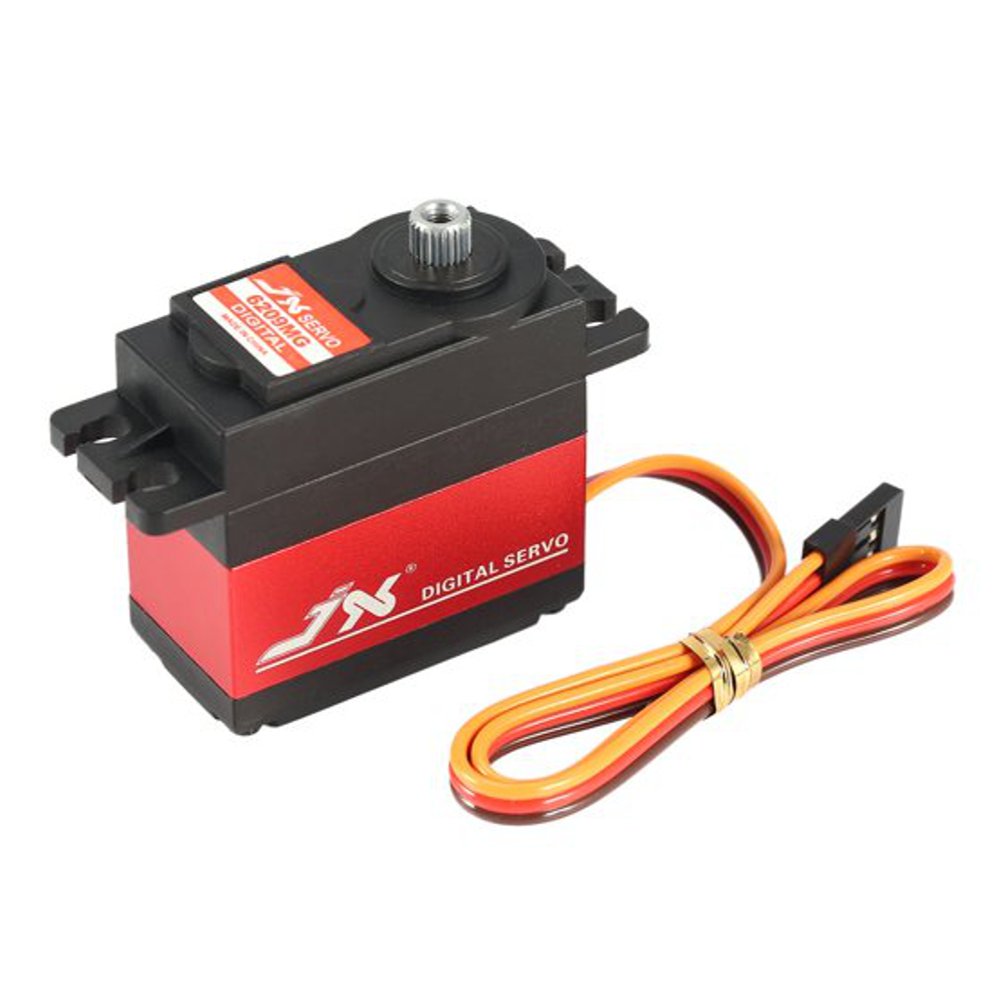

Item Name: PDI-6209MG
Dead band: 2μs
Working Voltage: 4.8V-6V DC
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.15 sec/60°
Operating Speed (6V): 0.13 sec/60°
Stall Torque (4.8V): 8.65 kg.cm (120.15 oz/in)
Stall Torque (6V): 9.35 kg-cm (129.88 oz/in)
Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49in
Weight: 62 g (2.18oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Feature:
High performance digital standard servo
High-precision aluminium gears with hard anodizing
CNC aluminium middle shell
Dual ball bearings
Package Included:

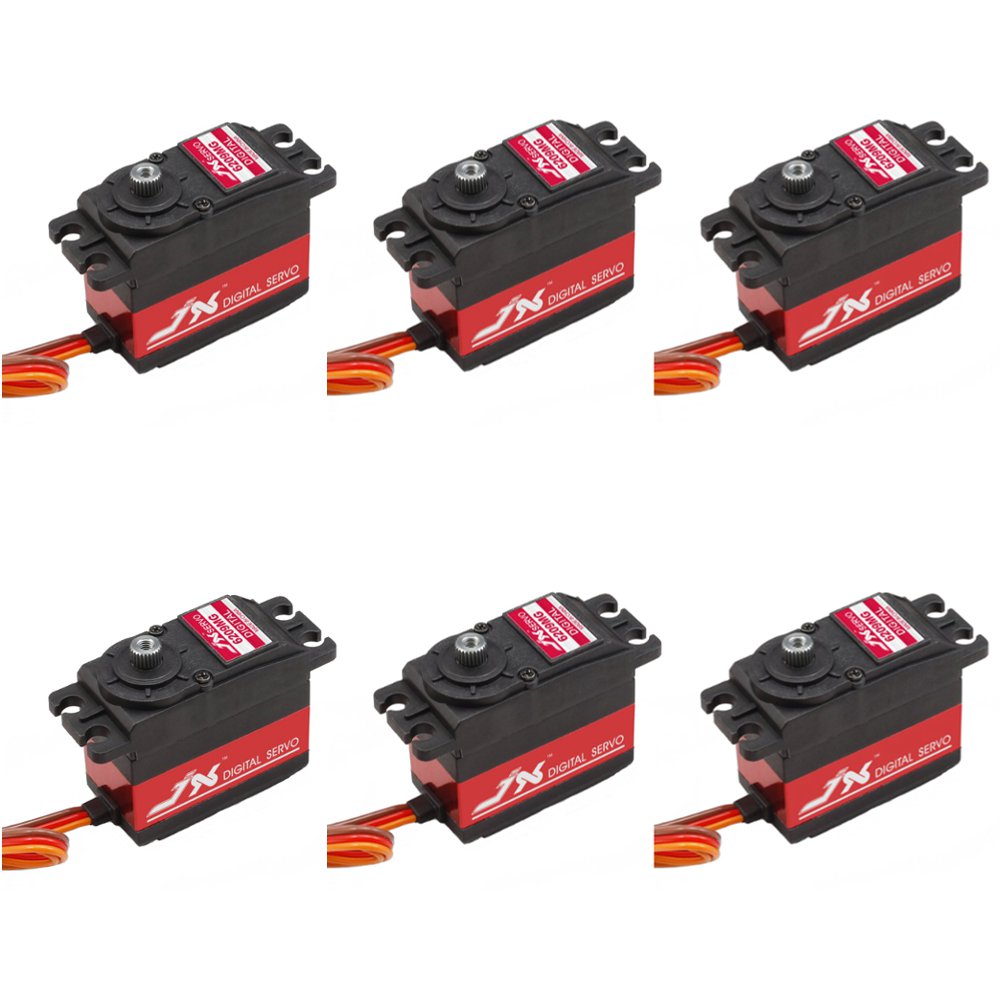

6x JX PDI-6209MG servo
