Description

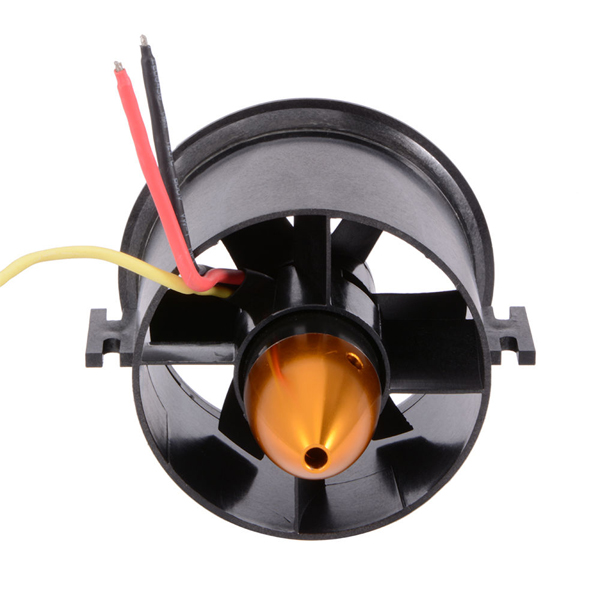

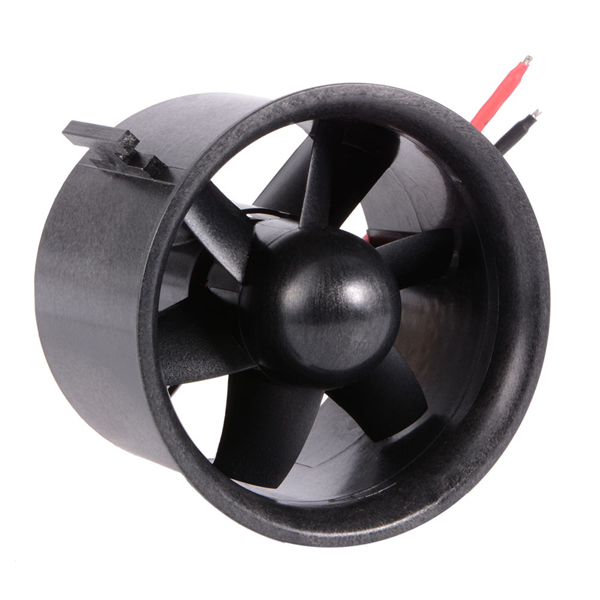

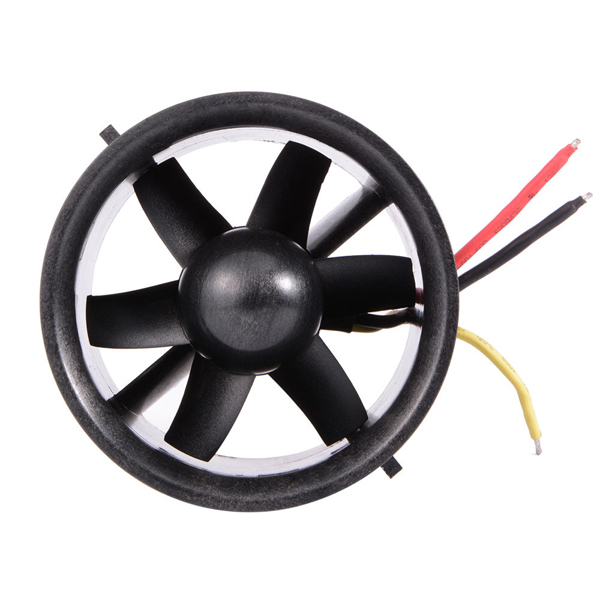

64mm Ducted Fan EDF Unit With 4500KV Brushless Outrunner Motor for RC Model
Description:
Item name: 64 mm Duct Fan with 4500KV Brushless Outrunner Motor
Weight: Motor 50 gram, Fan 25g
Motor Dimensions (Diameter x Length): 26mm x 47.5mm
Shaft Dimensions (Diameter x Length): 3mm x 10mm
Ducted Fan Exterior Dimensions (Diameter x Length): 66mm x 41mm
Ducted Fan Interior Dimensions (Diameter x Length): 64mm x 41mm
5-Blade propeller
Rotational Speed: 4500 RPM/V
The Max Thrust : 750g
Continuous Current :20A
The Max Current : 28A
Input Voltage : 8-18 V
No Load Current : 1.5A
Internal Resistance : 136mΩ
Recommend esc : 30A
Recommend number of cells : 3S lipo battery
Package Included:
1X 64mm Ducted Fan EDF Unit With 4500KV Brushless Outrunner Motor
