600TVL 2.8mm Lens 1/3" Super Had II CCD Camera for FPV Racing Drone PAL/NTSC
Description:
CCD: 1/3” Sony SUPER HAD II CCD
DSP model Nextchip 2040
Pixel: NTSC 768(H)×494(V)
TV System: NTSC/PAL
FOV: 120 degree
Resolution: 650TVL(b/w), 600tvl(color)
Synchronization: internal synchronize
Shutter Speed (CCD IRIS): NTSC: 1/60~1/100000 sec
Noise: > 60 (AGC OFF)
Video Out: 75ohm, synchronize
Min. Illumination: 0.01Lux
Auto Gain: Off/Low/Mid/High
Back Light Compensation: (BLC) Off /Back light compensation/ Strong light suppression
Private shading: (PRIVACY) 1~8 private shading area
Motion Detection: (MD) On/ Off (Multi level sensitivity settable)
Auto White Balance: Manual / Auto / Auto track
Mirror: Horizontal Mirror optional
Negative: Positive / Negative optional
Color to B&W: Auto
DNR: 2DNR
WDR: D-WDR
Day / Night Shift: Auto/ Color/ B&W
Menu (OSD): English menu
White Dot Repair: Support
Image Adjustment: Support
Camera Title: Support
Power Requirement: DC5V~22V
Working Temperature: -10 C ~ 50 C
Working Humidity: 20~80%
Storage Temperature; -40 C ~ 60 C
Storage Humidity: 20~95%
Dimensions(mm): 25X25(W*L)
Weight: 14.6g(with bracket)
Power Consumption: 70mA
Features:

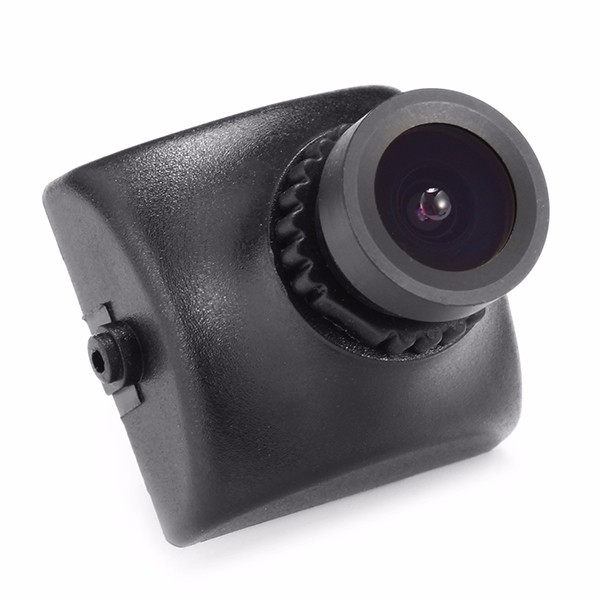

2.8mm Lens
IR-Cut for daylight use
Attention: what we are finding now with the active braking esc's that a very popular we were getting damaged cameras due to the voltage spikes that can happen when the active braking kicks in, sometime up to 35 volts. So we have been suggesting that the cameras are powered from a bec or voltage regulator, often feeding them with about 9v and also add a capacitor to the bec.
Package Included:
1 x Camera with 2.8 Lens
1 x Mounting bracket

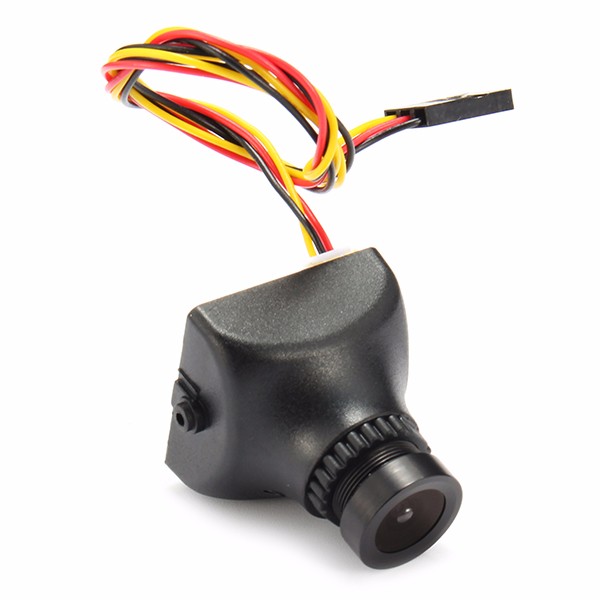

1 x Camera cable with Male Servo end
1 x OSD Joystick cable
