Description

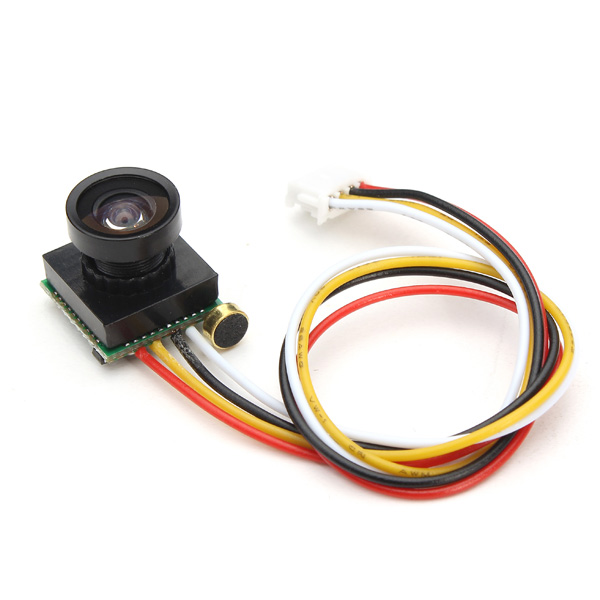

600TVL 100 Degree 1/4 Cmos 2.8mm Lens FPV Camera PAL/NTSC 3.7-5V
Specification:
Resolution: 1280 * 960
Pixels: 2MP
Lens: 2.8mm
Resolution: 600TVL
Illumination: 0.5LUX
Format: PAL / NTSC
Input voltage: 3.3-5V
Power consumption: 100mA
With audio lens: Wide angle 2.1mm (100)
Sensor: 1/4 CMOS
The photographic area: 3.5964mm x 2.7084mm
Pixels 648 (horizontal) 488 (vertical) 648 (horizontal) 488 (vertical)
Scanning frequency level: 15.625 kHz Vertical: 50 Hz Horizontal: 15.7343 kHz Vertical: 60 Hz
Electronic shutter: 1 / 50-1 / 80000 (seconds) 1 / 60-1 / 80000 (seconds)
Signal to noise ratio ≥48dB (AGC OFF)
Minimum illumination: 0.1 Lux / F1.2
Video composite signal: 1.0Vp-p 75Ω
Specifications PCB: 38mm × 38mm / 32mm × 32mm
Camera size: 12.5mm * 12.5mm * 17mm
Power consumption: DC5V ± 10% 70mA ± 10%
Operating temperature : -10 ℃ ~ 60 ℃ RH95% Max
Pixels: 2MP
Lens: 2.8mm
Resolution: 600TVL
Illumination: 0.5LUX
Format: PAL / NTSC
Input voltage: 3.3-5V
Power consumption: 100mA
With audio lens: Wide angle 2.1mm (100)
Sensor: 1/4 CMOS
The photographic area: 3.5964mm x 2.7084mm
Pixels 648 (horizontal) 488 (vertical) 648 (horizontal) 488 (vertical)
Scanning frequency level: 15.625 kHz Vertical: 50 Hz Horizontal: 15.7343 kHz Vertical: 60 Hz
Electronic shutter: 1 / 50-1 / 80000 (seconds) 1 / 60-1 / 80000 (seconds)
Signal to noise ratio ≥48dB (AGC OFF)
Minimum illumination: 0.1 Lux / F1.2
Video composite signal: 1.0Vp-p 75Ω
Specifications PCB: 38mm × 38mm / 32mm × 32mm
Camera size: 12.5mm * 12.5mm * 17mm
Power consumption: DC5V ± 10% 70mA ± 10%
Operating temperature : -10 ℃ ~ 60 ℃ RH95% Max
Package Included:
1 X FPV Camera
