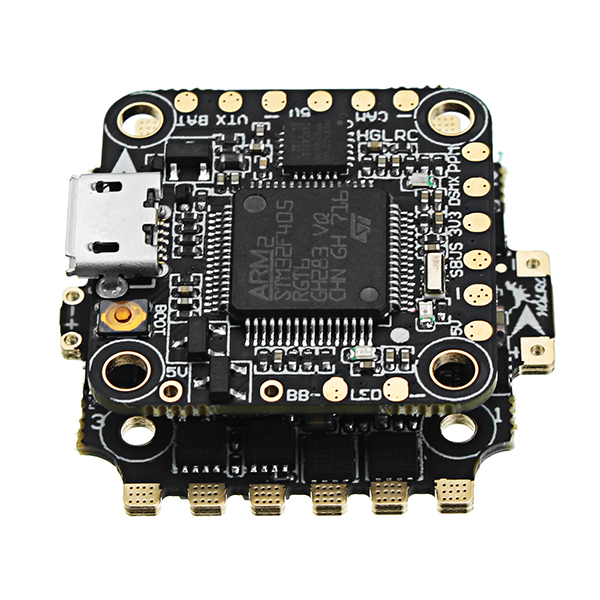

Upgrade 20x20mm XJB F428 Micro F4 AIO Betaflight OSD BEC Flight Controller & 28A Blhel_S BB2 2-4S 4 in 1 ESC
Specification:
Item Name: Micro F4 AIO OSD BEC FC & 28A 4 In 1 ESC Dshot Flytower
Model: XJB F428
Mounting Hole: 20x20mm
Weight: 6.5g
Usage: for 65mm- 250mm Frame Kit
Upgrade Micro F4 Flight Controller: ( Dshot Version, building on top level)
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K.
Black Box: Flash 16M
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 25x25mm board, 20mm mounting holes (M2)
Board Thickness: 1.2mm
Board Thickness: 1.2mm
Weight:2.3g
Support Subs/PPM/DSMX receiver
28A BL_S BB2 4 In 1 ESC
Input Voltage: 2-4S Lipo battery
Constant Current: 28A
Peak Current: 35A
BEC Ouput: NO
Firmware: BLheli_S 16.5
Size: 27x27mm (main board)
31x31mm ( including pad)
Installing Hole: 20x20mm, M2
Weight: 4.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Firmware: Betaflight 16.5
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, forward and reverse
Package Included:
1x F4 Flight Controller
1x 28A 4 In 1 ESC
1x Capacitor
1x bag of screws
