Description
Description:

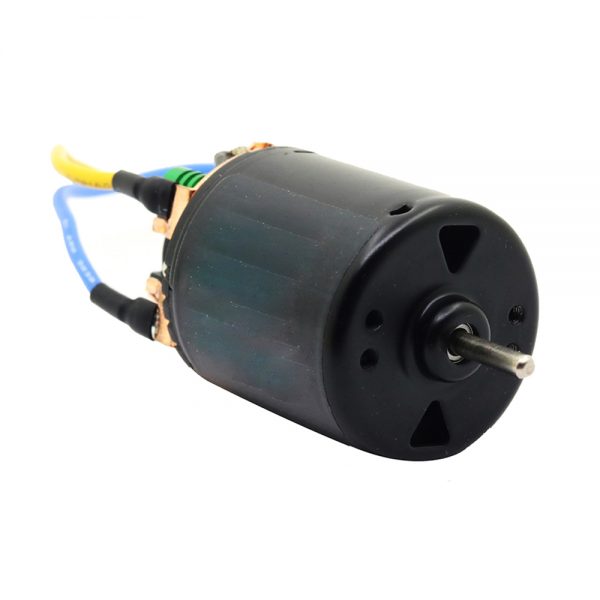

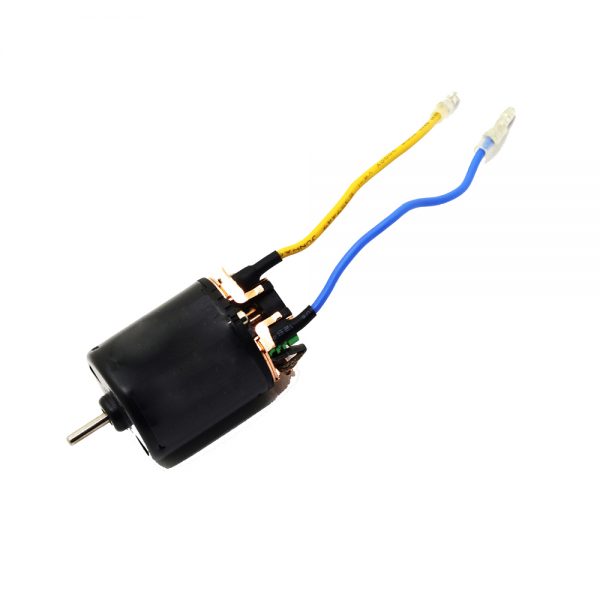

Model: 540
Outer diameter: 36 mm
Overall length: 57 mm (without motor shaft)
Motor shaft length: 12mm diameter: 3.17mm
Mounting screw fixing hole: 22*8 (4 M3 screw holes)
Weight: 175G
No load current: 1.4A
7.2 V voltage no-load speed:
21 T 20000 rpm
27 T 16800RPM
35 T 12000 RPM
45 T 10000 rpm
55 T 8000 RPM
80 T 5400RPM
10% rpm (test after 1 minute)
Motor support voltage: 6-12V
Recommended use: 2-3S lipo or 5-9 NIMH

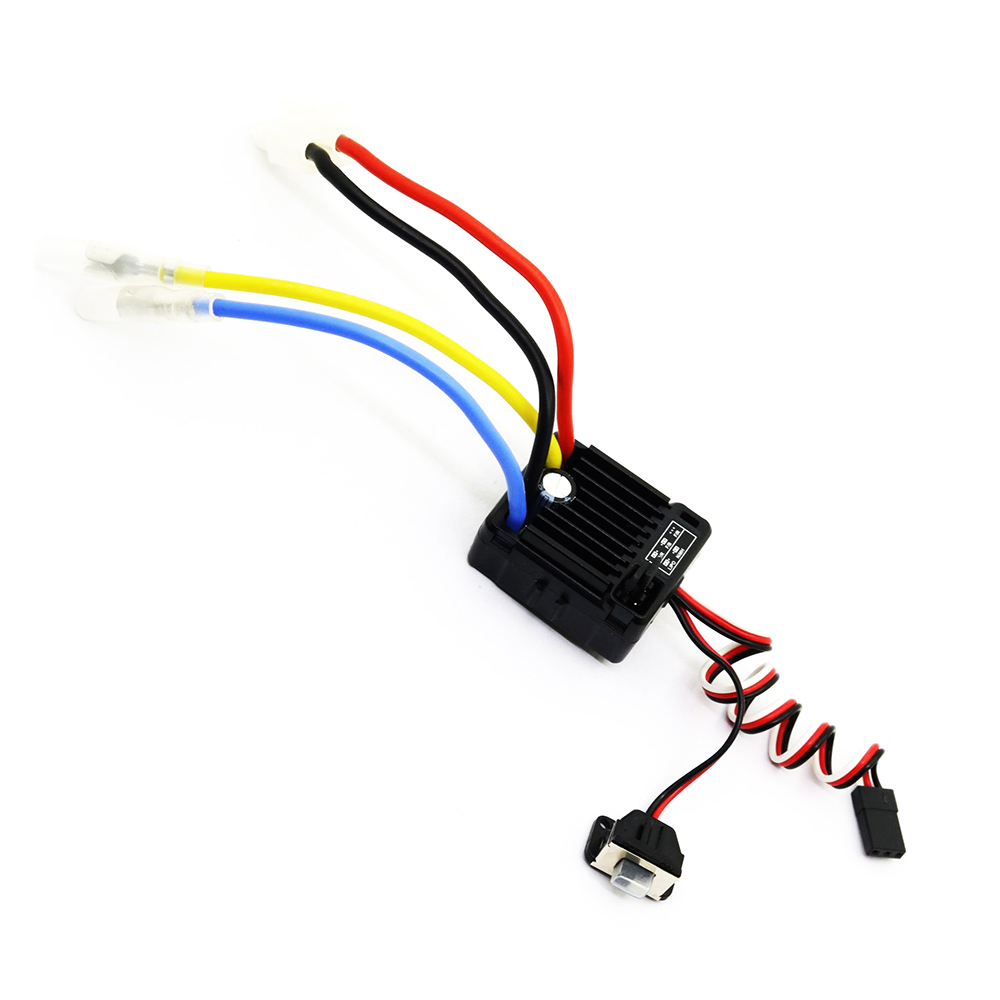

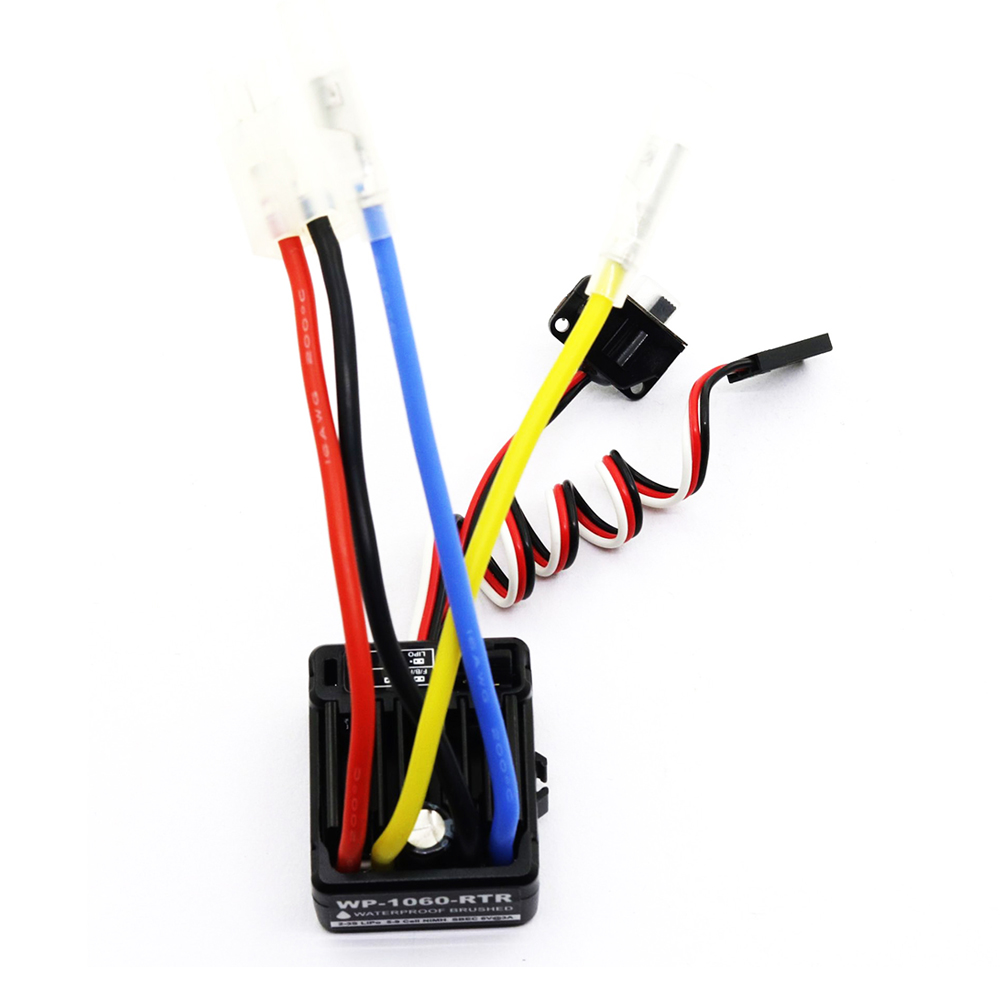

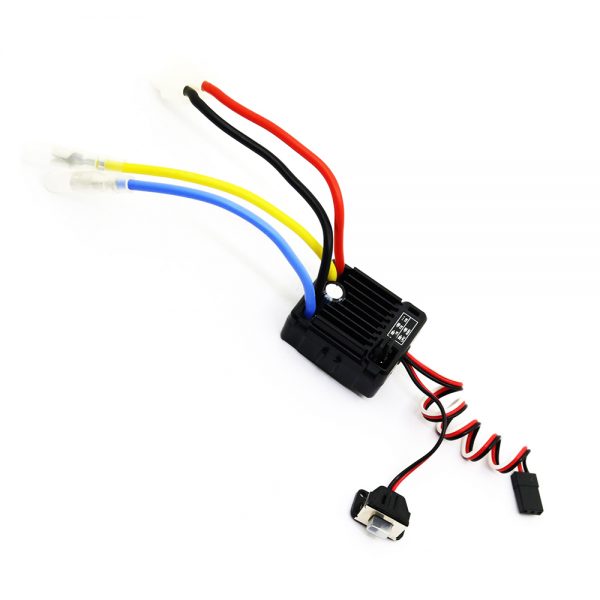

ESC60A ESC parameters
Reverse: continuous current / peak current: 30A/180A
Support voltage: 2-3S-LIPO or 5-9 sections – NIMH
BEC output: 3A/6V
Size: 36.5*32*18MM
Weight: 40G
Waterproof performance: full waterproof
Recommended recommended for the suit
21T& 27T-1/10 flat running drift boat
35T&45T&55T -1/10 1/8 climbing car and other large torque car
80T – Tamiya tractor truck, truck and other large torque car
Package included:
1x RC car motor
1x ESC
1x manual
