Description
Description:

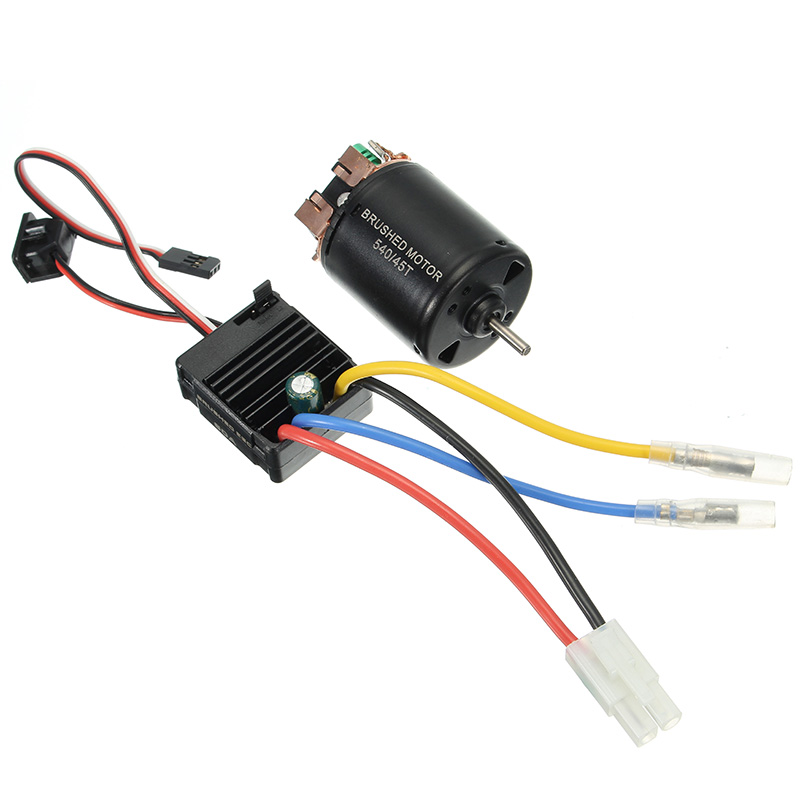

Item: 540 motor + 60A ESC

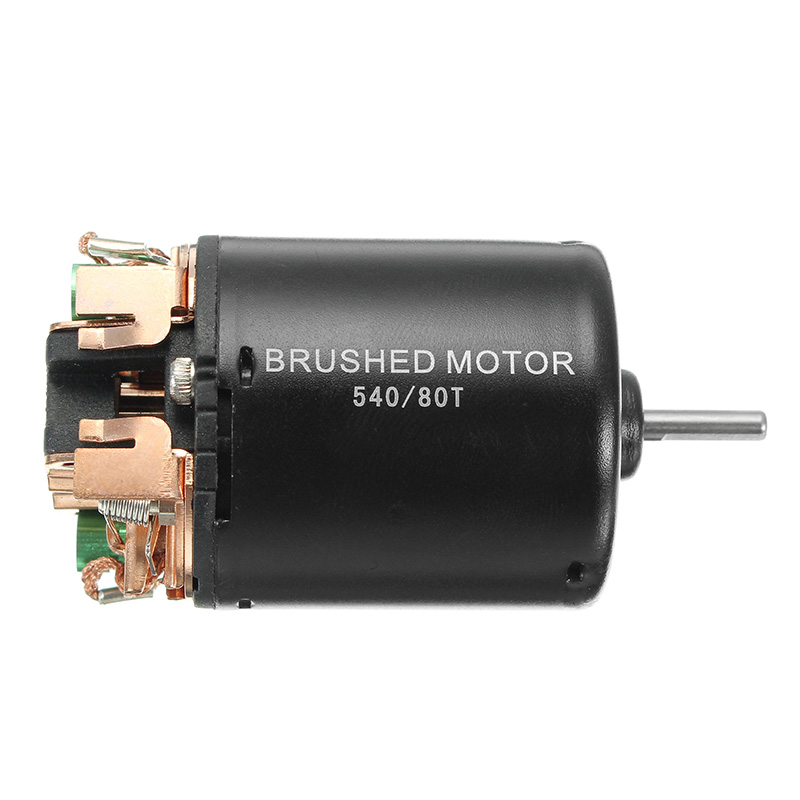

Motor Shaft: 3.175mm
Motor Approx. Size: As Picture

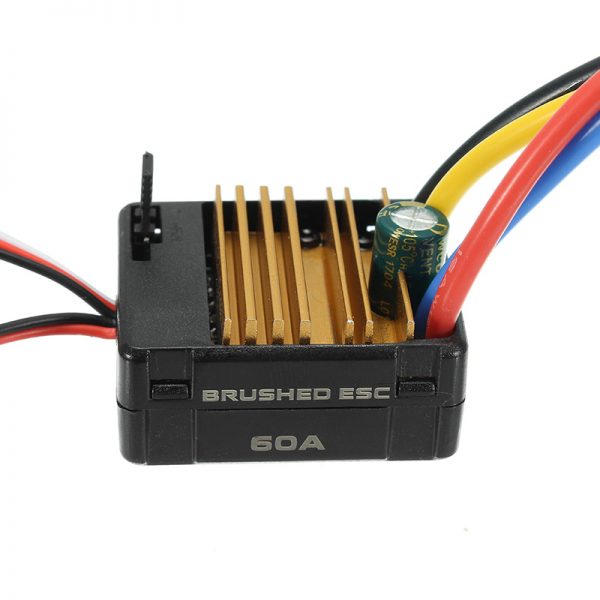

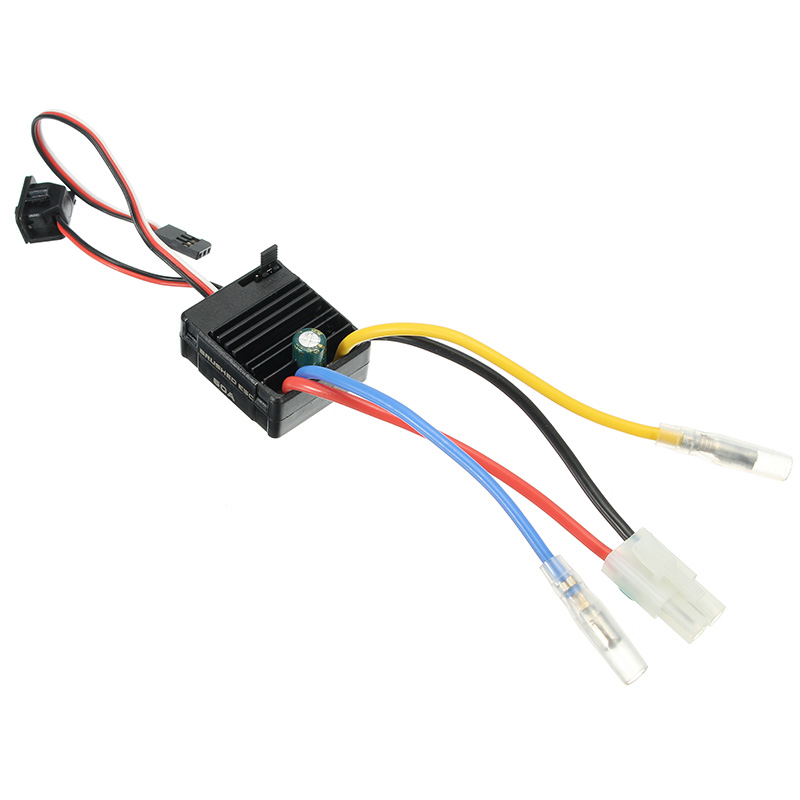

ESC Specification:
Size: About 35*30*15mm
Cont. Current / Burst Current: 60A / 320A
Motor Type: Brush Motor
Suitable Car: 1/10
Battery: 2-3 Cells Lipo; 4-9 Cells NiMH
BEC: 5V / 2A (Switch Mode)
Options:
NO.13: Motor 13T + 60A ESC
NO.17: Motor 17T + 60A ESC
NO.21: Motor 21T + 60A ESC
NO.23: Motor 23T + 60A ESC
NO.27: Motor 27T + 60A ESC
NO.35: Motor 35T + 60A ESC
NO.45: Motor 45T + 60A ESC
Features:
– Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
– Compatible with brush motor
– Multiple protection features: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection
– Easily programmed and compatible with pocket-sized program card
For ESC program card, please click
For Manual, please click here.
Note:
Please keep the manual for future reference.

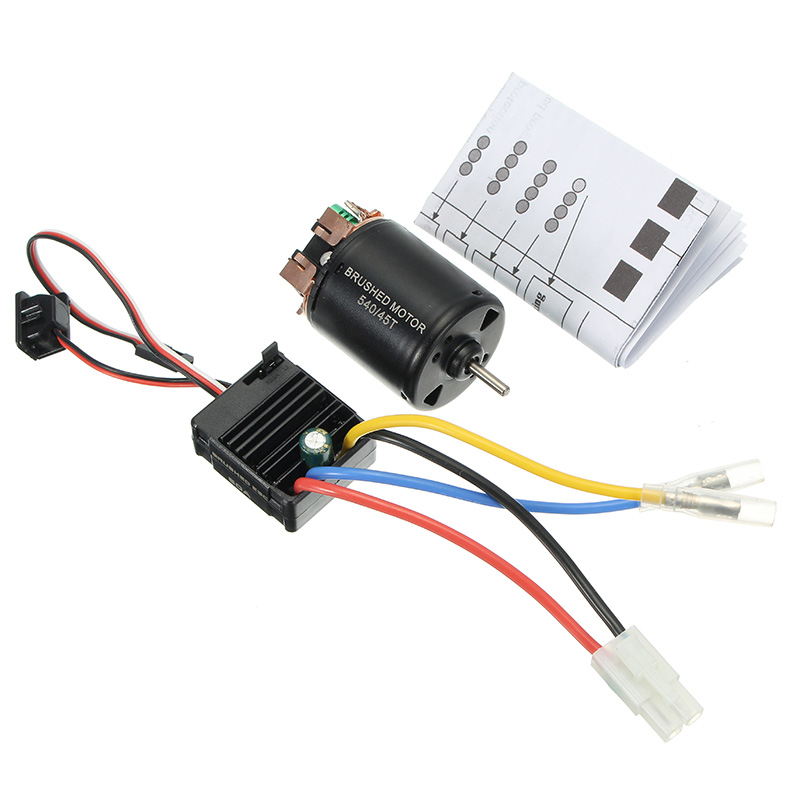

Package Included:
1 x 540 Motor
1 x 60A ESC
1 x Manual
