Description
5 PCS Racerstar SPROG X 2206 2300KV 3-4S Brushless Motor 2 CW & 3 CCW for RC Drone FPV Racing
Specification:
Brand Name: Racerstar
Model: SPROG X 2206
Item Name: 2206 2300KV 3-5S Brushless Motor
Motor KV: 2300KV
Quantity: 2 CW Screw Thread & 3 CCW Screw Thread
Idle Current (Io/10V): 1.52A
Battery: 3-4S lipo battery
Net Weight: 34g
36g ( with nut )
Quantity: 2 CW Screw Thread & 3 CCW Screw Thread
Idle Current (Io/10V): 1.52A
Battery: 3-4S lipo battery
Net Weight: 34g
36g ( with nut )
Max. Con. current: 38A
Max.Con. power: 608W
Configu-ration: 12N/14P
Motor Resistance (RM): 0.0372Ω
Max thrust: 1287g (4S/5")
Stator Diameter: 22mm
Stator Thickness: 6mm
Motor Diameter: 27.7mm
Motor Resistance (RM): 0.0372Ω
Max thrust: 1287g (4S/5")
Stator Diameter: 22mm
Stator Thickness: 6mm
Motor Diameter: 27.7mm
Shaft diameter: M5
Motor Body Length: 18.7mm
Overall Shaft Length: 33.7mm
Bolt holes spacing: 16/19mm
Bolt thread: M3
Recommend Propeller: 5 / 6 Inch
Overall Shaft Length: 33.7mm
Bolt holes spacing: 16/19mm
Bolt thread: M3
Recommend Propeller: 5 / 6 Inch

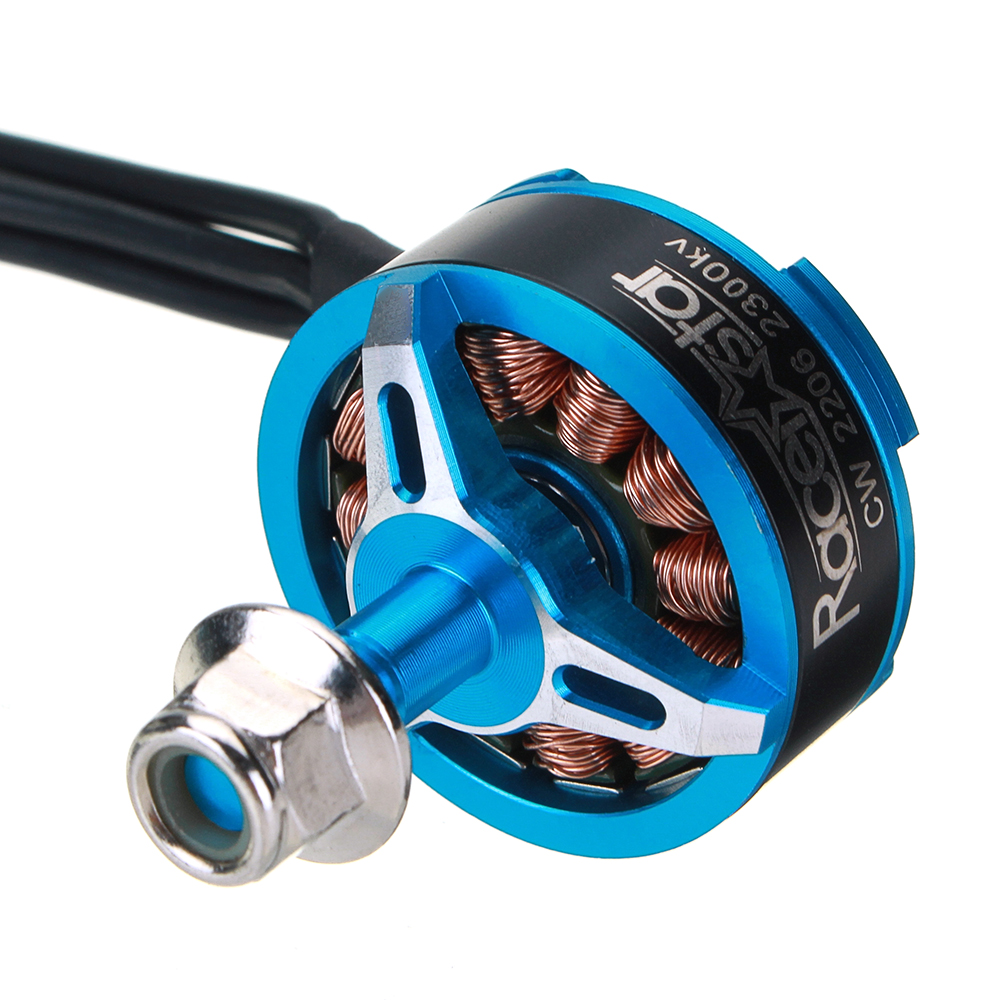

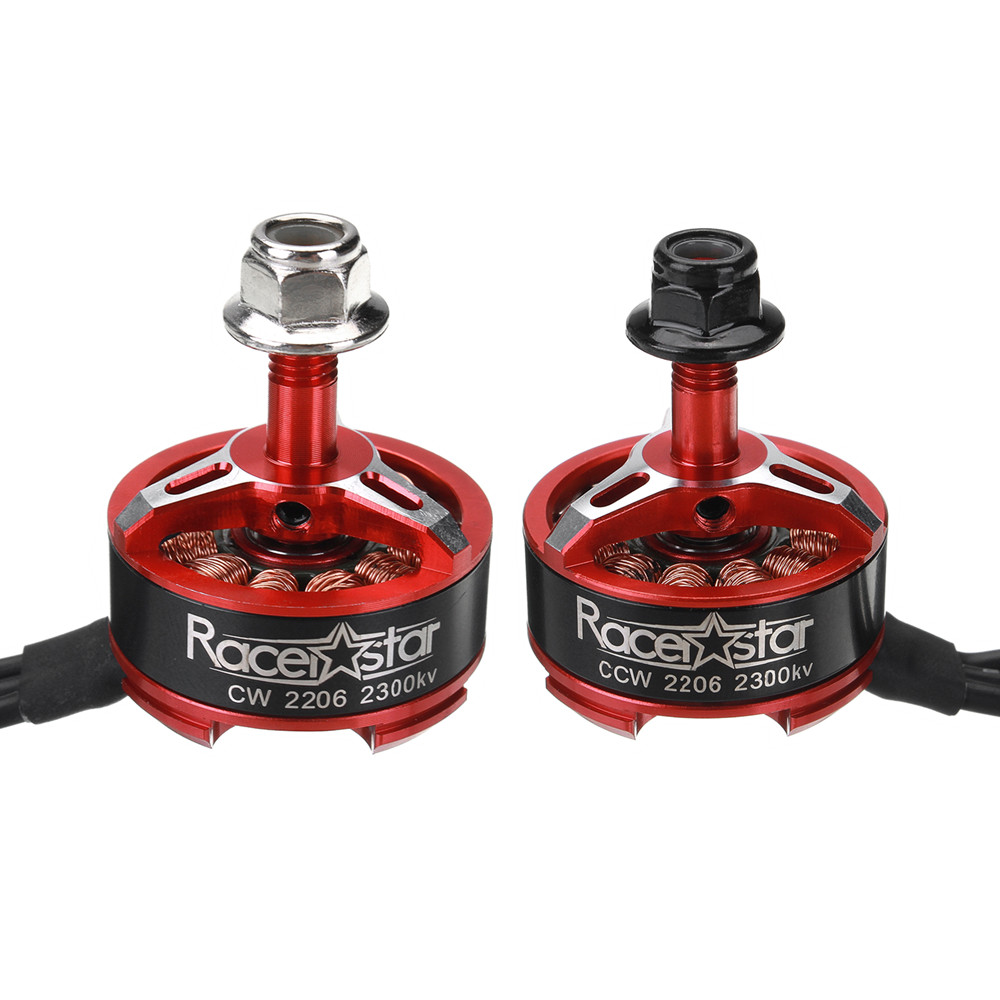

CW screw thread motor comes with Siliver cap
CCW screw thread motor comes with Black cap
Test Table:
| ltem NO. | Volts (V) | Prop | Throttle | Amps (A) | Watts (W) | Thrust (g) | Efficiency (g/W) | Operating Temperature |
| C2206 2300KV | 16V | T5046/3P | 30% | 1.9 | 30.4 | 153 | 5.03 | 53℃ |
| 40% | 3.7 | 59.2 | 261 | 4.41 | ||||
| 50% | 5.9 | 94.4 | 381 | 4.04 | ||||
| 60% | 8.8 | 140.8 | 492 | 3.49 | ||||
| 70% | 13.1 | 209.6 | 648 | 3.09 | ||||
| 80% | 17.9 | 286.4 | 785 | 2.74 | ||||
| 100% | 38.1 | 609.6 | 1287 | 2.11 | ||||
| C2206 2300KV | 16V | 6040BN/3P | 30% | 2.5 | 40.0 | 221 | 5.53 | 82℃ |
| 40% | 5 | 80.0 | 363 | 4.54 | ||||
| 50% | 8.1 | 129.6 | 503 | 3.88 | ||||
| 60% | 12.1 | 193.6 | 667 | 3.45 | ||||
| 70% | 16 | 256.0 | 771 | 3.01 | ||||
| 80% | 24.5 | 392.0 | 960 | 2.45 | ||||
| 100% | 39.5 | 632.0 | 1356 | 2.15 |

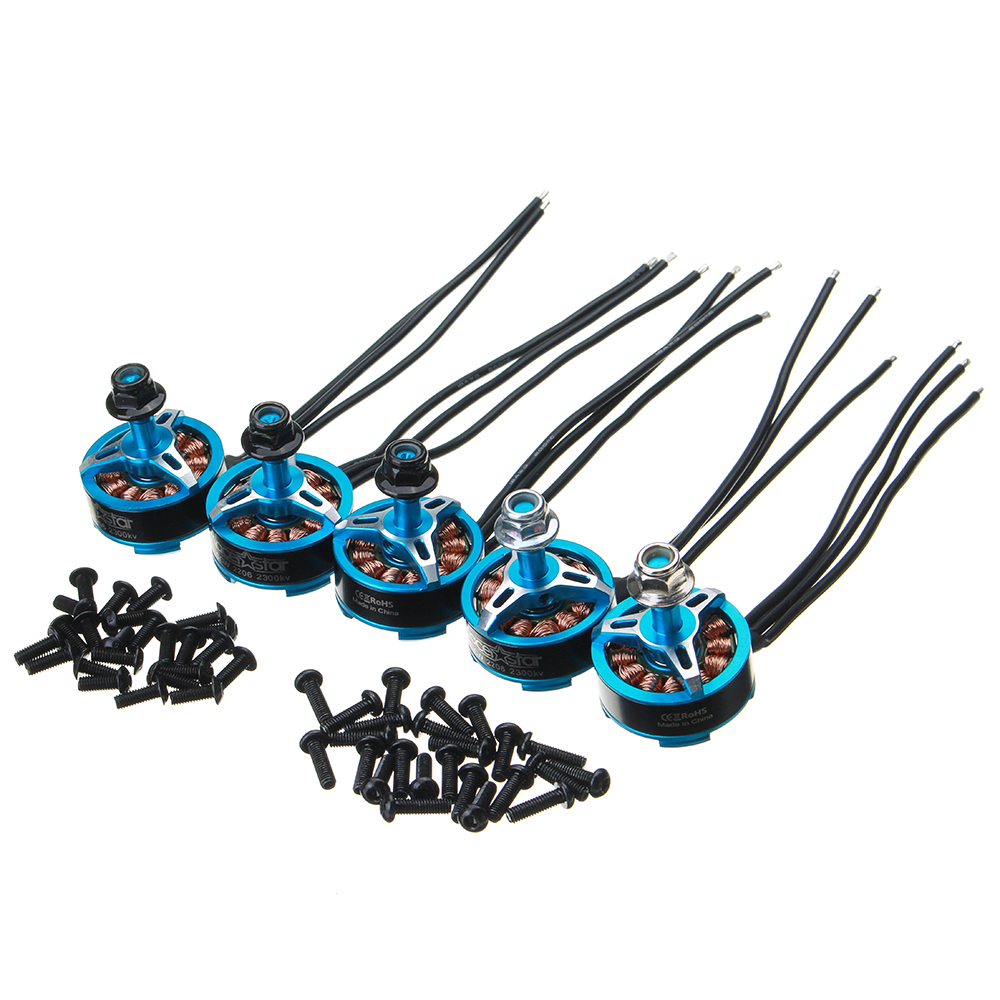

Package Included:
2x 2206 2300KV CW Motor
3x 2206 2300KV CCW Motor
1x bag of Screws
