Description
Specifications:
Number of channels: 40CH
Power: 600mw
Working voltage: 6V-30V
Working current: 12V/280mA±10 mA
Audio input: 0.5~2.0Vp-p/10KΩ
Video input: 1V±0.2Vp-p/75Ω
System: PAL/NTSC/SECAM (AUTO)
Transmitter: straight hole (RP-SMA jack)
Antenna end: SMA plug
Working temperature: -10~85 degrees
Button: short press to set the channel, long press the setting group
Volume: 35*25*9mm

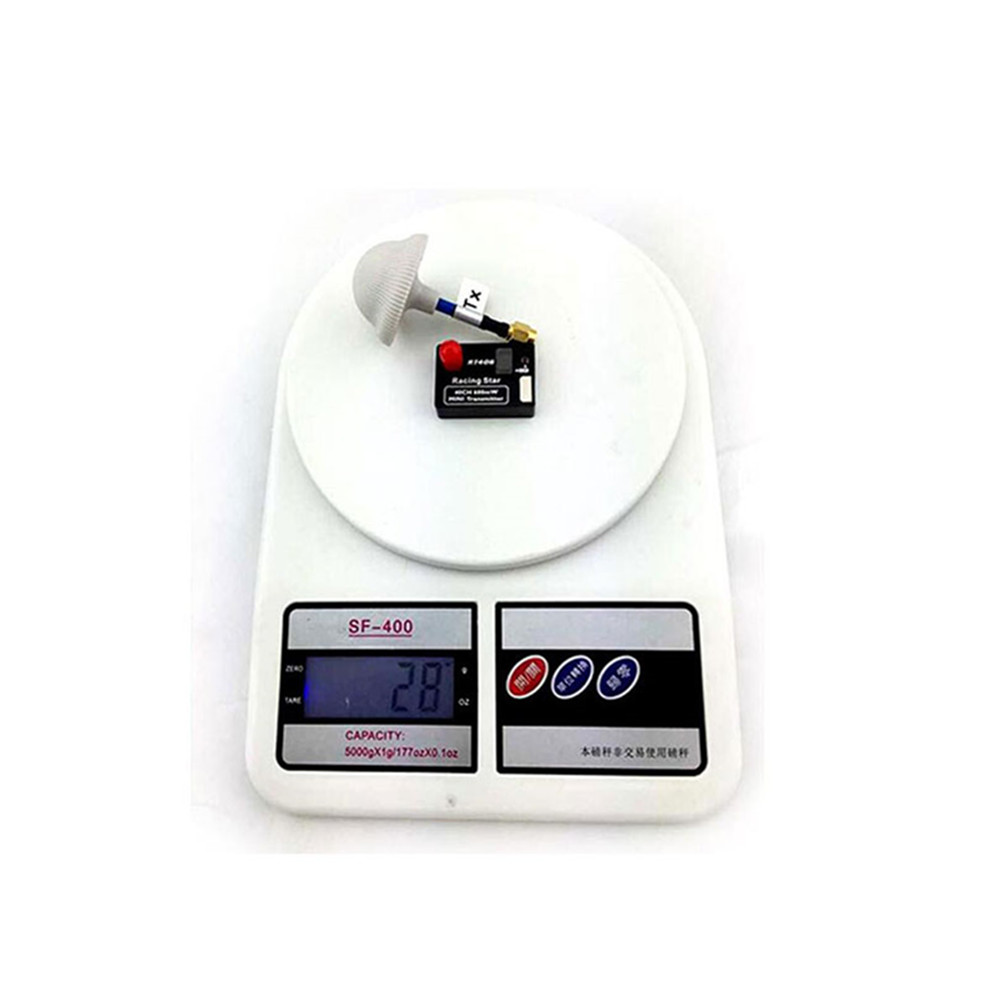

Weight: 14.5g
5Pin line definition:
Yellow: Video In (S signal line)
Black: – (GND)
Red: VCC OUT
Black: – (GND)
Red: VCC IN
Package included:
1x Image transmission
1x Antenna
1x Power cord
1x Video line
5Pin line definition:
Yellow: Video In (S signal line)
Black: – (GND)
Red: VCC OUT
Black: – (GND)
Red: VCC IN
